CHARGER INSTRUCTION MANUALC1 - XR AC/DC SMART BALANCE CHARGER
54
Specications
• AC input Voltage: 100V - 240V
• Control: Button
• Backlight: Blue
• Dimension: 130*115*61*mm
• Charge current: 0.1A - 10A
• Charge power: max. 100W
• Balance current: 400mA/cell
• DC input Voltage: 11 - 18V

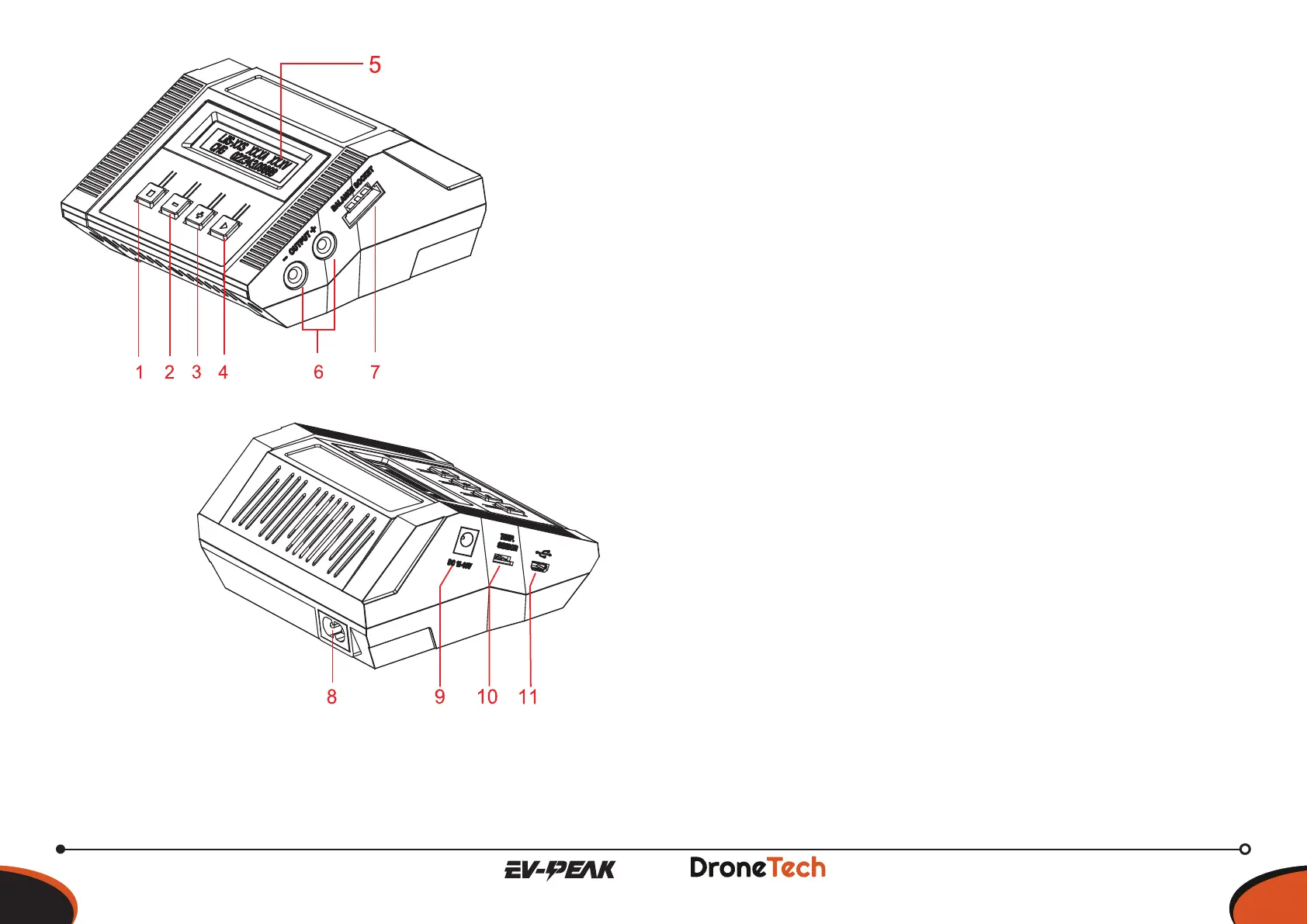

1. Mode / ESC
2. - Dec
3. + Inc.
4. Start / Enter
5. LCD screen
6. Main Output
7. Balance port
8. AC Input
9. DC Input
10. Temperature
Sensor Port
11. Micro-USB port
• Display Type: LCD
• Cooling system: 1 cooling fan
• Weight: 380g
• Safety timer: 1-720min or
turn o
• Discharge current: 0.1A - 2.0A
• Discharge power: max5w
• Memory: 10 dierent charge / discharge proles
• External port: 1-6s Balance Socket - XH, Temperature
probe socket, Battery Socket, DC input,
AC Input, Micro USB for PC.
• Battery Types/cells: LiPo/Lilon/LiFe/LiHV:1-6S
NiMH/NiCd: 1-15cells
Pb: 2-24V
• Charge Voltage: LiPo: 4.18-4.22V/cell Lilon: 4.18-4.20V/cell
LiFe: 3.68-3.80V/cell LiHV: 4.30-4.40V/cell
• Discharge cut-o NiMH/NiCd: 0.1-1.1 V/cell
voltage: LiPo: 3.0-3.3V/cell Lilon:2.9-3.2V/cell
LiFe: 2.6/2.9V/cell LiHV:3.1-3.4V/cell
Pb:1.8V
