DROPSA ADVANCED LUBRICATION CONTROLLER User Manual

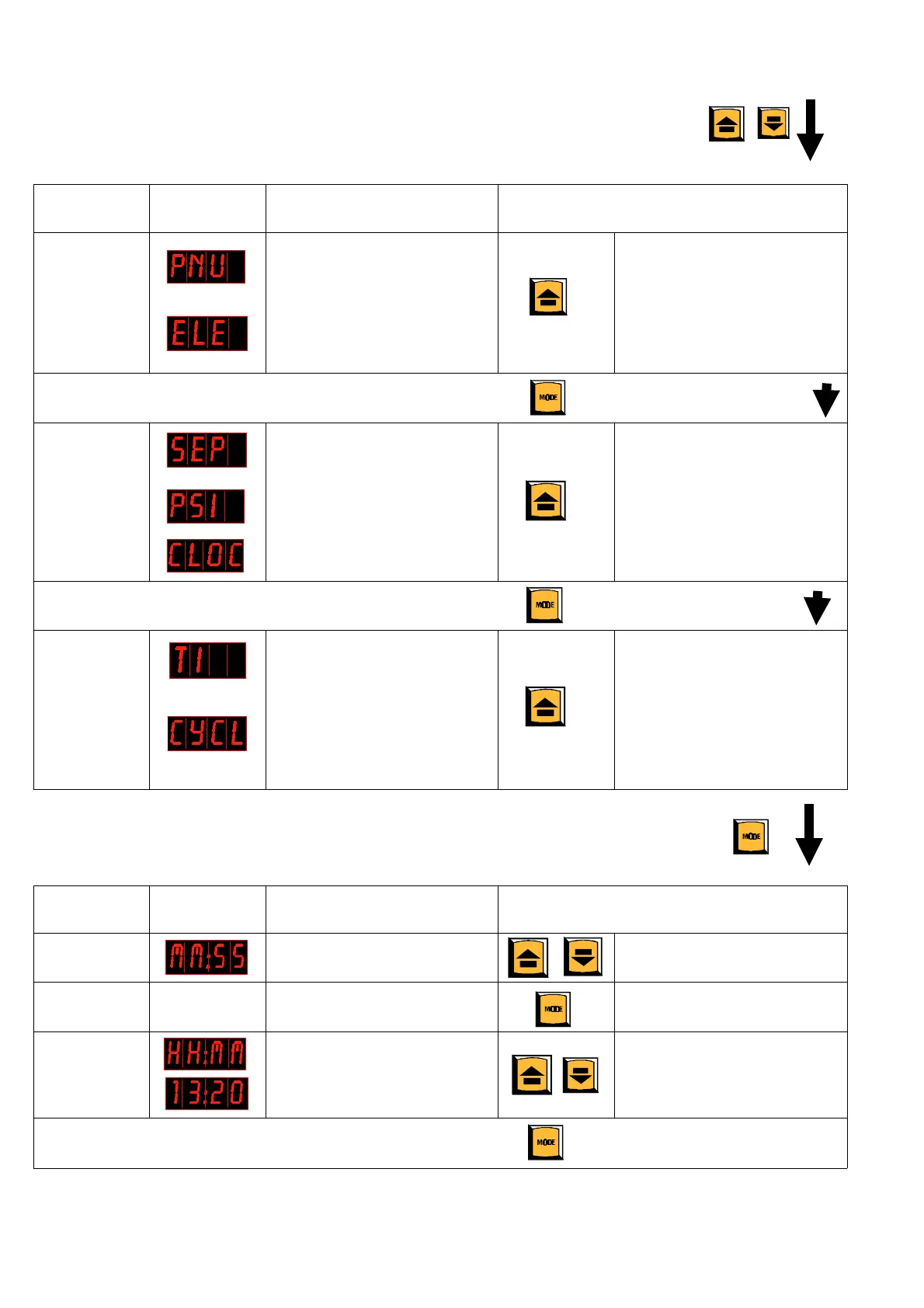

MENU OPERATION:
System Menu
The System Menu is used to configure the type of pump and
Lubrication System that is connected to the Controller
To access the System Menu press the UP and DOWN buttons together and hold for two seconds.
Parameter
Screen
Display
Description Operation
Pump Type.
The Pump receives a 4
second ON and a 4 second
OFF pulse
The Pump receives a constant
signal.
Press the UP button to switch
between the two options.
Press the MODE button to go to the next option.
Lubrication
System Type
Progressive System - Monitors
switch on progressive divider.
Monitors a pressure switch on
Single Line Systems.
No monitoring, just timer.
Press the UP button to switch
between the three options.
Press the MODE button to go to the next option.
Pause
Interval
Selection
The Pause between the Pump
ON cycle is determined by a
timer.
The Pause between Pump
cycles is determined by the
cycle switch input connected
to pulse
Press the UP button to switch
between the three options.
Operator Menu:
The Operator Menu is used to adjust the
Pump ON’ cycle and the (timer/impulse) pause interval.
To access the Operator Menu press and hold the MODE button for two seconds.
Parameters Screen
Display
Description Operation
Pump On
Time
Indicates the Minimum Pump
ON time.
Use the UP and DOWN
buttons to adjust the setting.
Exit and go the next option. Press the MODE button and
hold for two seconds.
Pause Timer
or
Impulse
Counter
Indicates Pause Interval.
Indicates number of impulses
between cycles.
Use the UP and DOWN
buttons to adjust the setting.
Press the MODE button and
hold for two seconds.
Return to normal operating
mode
2 ’VIP’ ADVANCED LUBRICATION CONTROLLER

DROPSA ADVANCED LUBRICATION CONTROLLER Specifications

General

Brand	DROPSA
Model	ADVANCED LUBRICATION CONTROLLER
Category	Controller
Language	English
