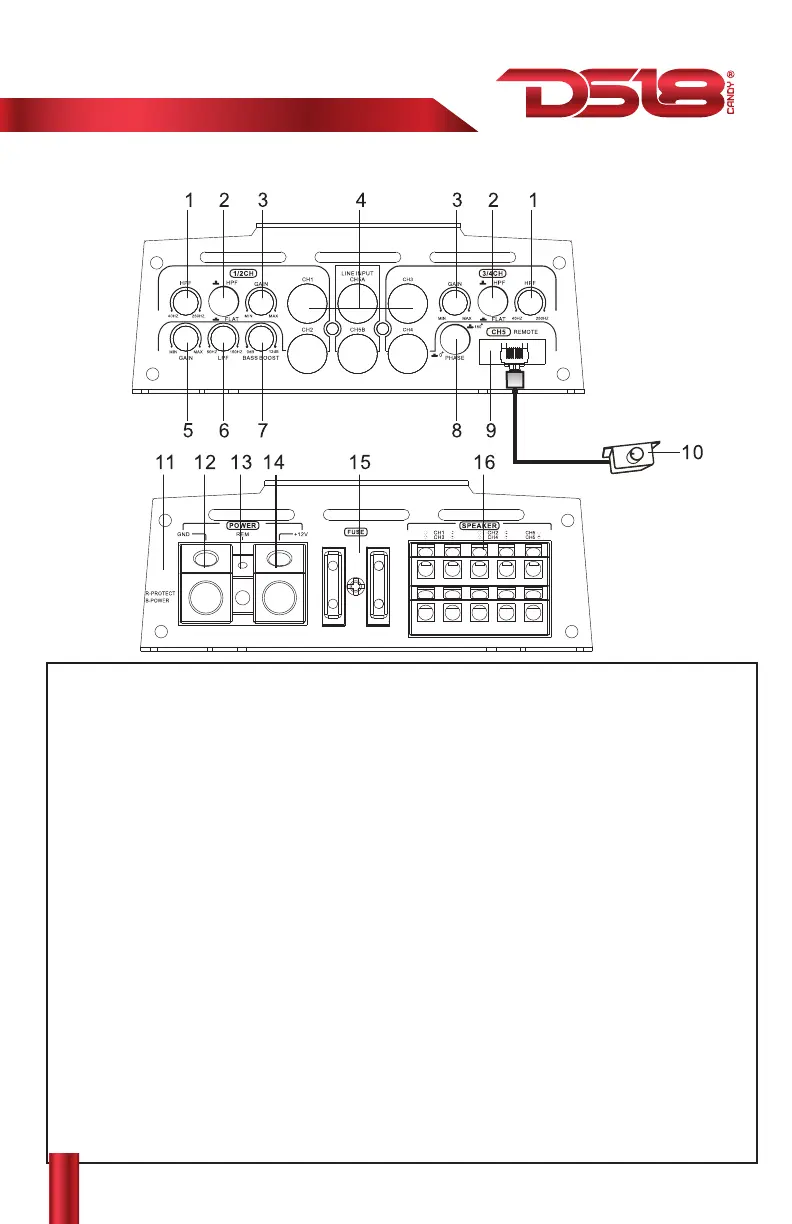

1. HPF: High pass frequency adjusting knob, the frequency ranges from 40 Hz to 250Hz
2. X-OVER: Optional switches for high pass filter (HPF)/ full pass filter (FULL)/ low pass filter (LPF).
3. GAIN: Knob for volume adjusment.
4. LOW INPUT: Left and right channels inputs of the amplifier system. Preamplifier outputs of a source
(head unit) or of an external crossover must be connected to them.
5. SUB GAIN: Knob for SUB volume adjustment.
6. LPF: Low pass frequency adjusting knob, the frequency ranges from 50hz to150Hz.
7. BASS BOOST: The boost ranges from 0dB to 12dB
8. PHASE CONTROL: Phase adjusting switch, the phase ranges from 0-180
o
9. SUB REMOTE CONTROLLER OUTLET: To be connected with the remote controller, which helps to sub
gain. Please turn the knob of volume to be maximum before using the remote.
10. SUB REMOTE CONTROLLER BOX: Volume level knob.
11. INDICATOR LIGHT: When power LED sends out blue light, it meands that this amplifier have been
working now. When the LED sends out red light, it means that the self-protection of the amplifier.
12. GND: Ground terminal. Connect to the car chassis. Keep the lenght of the ground cable to a minimum.
13. REM: Terminal to be connected with the remote cable, which comes from the source and which
controls the amplifier switching on. Applied voltage must be between 10 and 15V DC.
14. +12V: anode of power connection terminals. Connect to the anode of car battery.
15. FUSE: standard automatic fuse, you must use the same power fuse if you need to change it.
16. SPEAKER: speaker connecting terminals.
