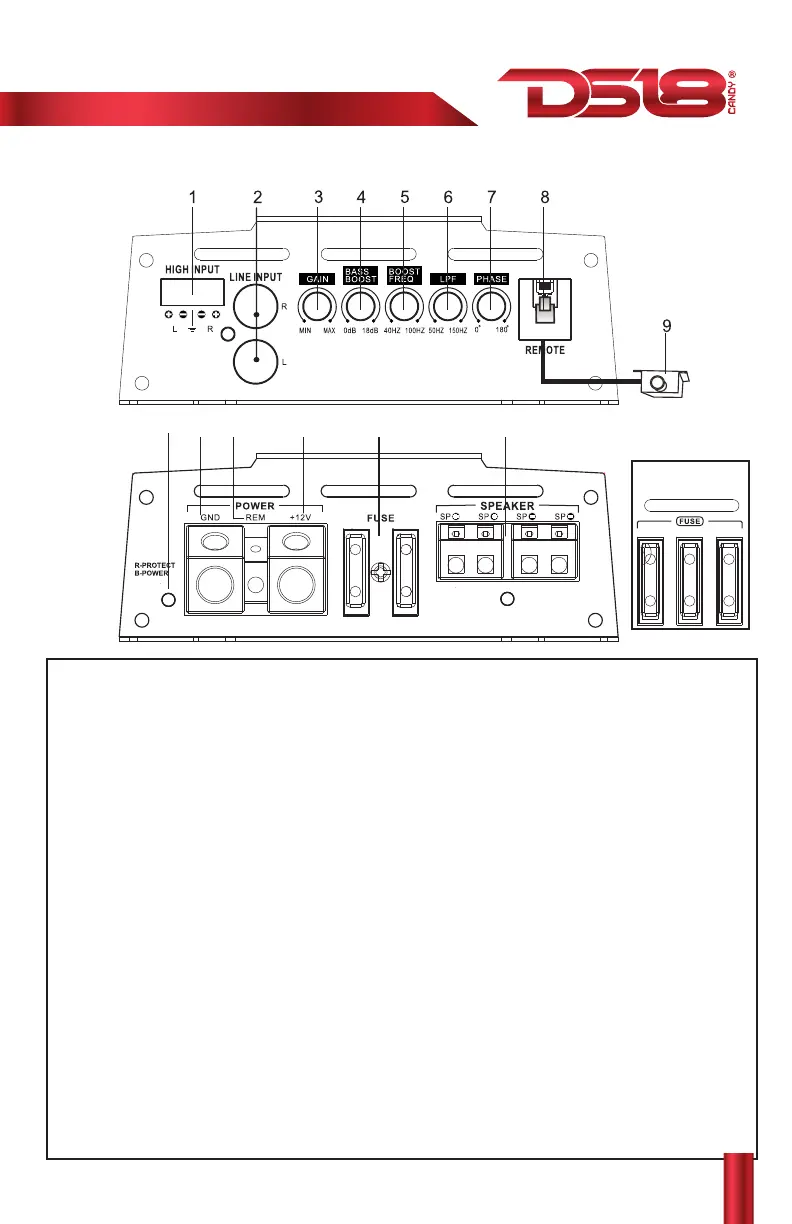

INSTRUCTIONS FOR FUNCTIONS AND CONTROLS
candy-x1b / XXL1B
1210 11 13 14 15
1. HIGH INPUT: High level input terminals.
2. LOW INPUT: Left and right channels inputs of the amplifier system. Preamplifier outputs of a source
(head unit) or of an external crossover must be connected to them.
3. GAIN: Knob for volume adjusment.
4. BASS BOOST: The boost ranges from 0dB to 18dB
5. BOOST FREQUENCY: The boost frequency ranges from 40Hz to 100Hz.
6. LPF: Low pass frequency adjusting knob, the frequency ranges from 50hz to150Hz.
7. PHASE CONTROL: Phase adjusting switch, the phase ranges from 0-180
o
8. REMOTE CONTROLLER OUTLET: To be connected with the remote controller, which helps to boost the
gain. Please turn the knob of volume to be maximum before using the remote.
9. REMOTE CONTROLLER: Volume level knob.
10. INDICATOR LIGHT: When power LED sends out blue light, it means that this amplifier have been
working now. When the LED sends out red light, it means that the self-protection of the amplifier.
11. GND: Ground terminal. Connect to the car chassis. Keep the lenght of the ground cable to a minimum.
12. REM: Terminal to be connected with the remote cable, which comes from the source and which
controls the amplifier switching on. Applied voltage must be between 10 and 15V DC.
13. +12V: anode of power connection terminals. Connect to the anode of car battery.
14. FUSE: standard automatic fuse, you must use the same power fuse if you need to change it.
15. SPEAKER: speaker connecting terminals.
2
XXL1B*
