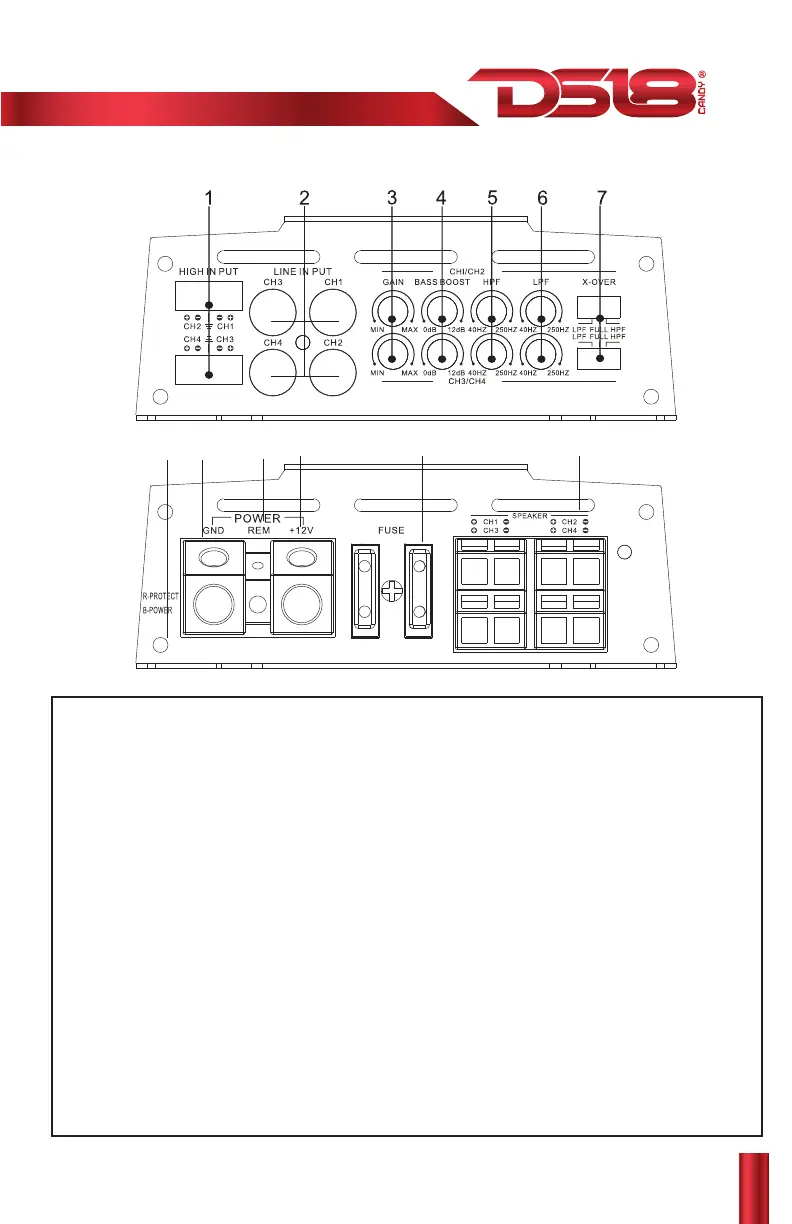

1. HIGH INPUT: High level input terminals.
2. LOW INPUT: CH1/CH2/CH3/CH4 inputs of the amplifier system. Preamplifier outputs of a source (head
unit) or of an external electronic crossover must be connected to them.
3. GAIN: Knob for volume adjusment.
4. BASS BOOST: The boost ranges from 0dB to 12dB
5. HPF: High pass frequency adjusting knob, the frequency ranges from 40 Hz to 250 Hz.
6. LPF: Low pass frequency adjusting knob, the frequency ranges from 40hz to250Hz.
7. X-OVER: Optional switches for high pass filter (HPF)/ full pass filter (FULL)/ low pass filter (LPF).
8. INDICATOR LIGHT: When power LED sends out blue light, it means that this amplifier have been
working now. When the LED sends out red light, it means that the self-protection of the amplifier.
9. GND: Ground terminal. Connect to the car chassis. Keep the lenght of the ground cable to a minimum.
10. REM: Terminal to be connected with the remote cable, which comes from the source and which
controls the amplifier switching on. Applied voltage must be between 10 and 15V DC.
11. +12V: anode of power connection terminals. Connect to the anode of car battery.
12. FUSE: standard automatic fuse, you must use the same power fuse if you need to change it.
13. SPEAKER: speaker connecting terminals.
8
INSTRUCTIONS FOR FUNCTIONS AND CONTROLS
candy-x4b
10
8
9
11 12
13
