8. BOOST
8. POTENCIADOR
ZR600.4D | ZR800.4D | ZR1600.4D
1. FREQ – Knob for Frequency adjustment, this ranges from
40Hz to 4KHz.
2. FREQUENCY SELECTOR SWITCH - HP High frequency, LP
low frequency, F Full frequency.
3. GAIN - Knob for input gain adjustment, this ranges from
0.2V to 6V input signal.
4. INPUT - Low Level Input, this is your RCA audio signal
input from the source (head unit).
5. SPEAKER OUTPUT - Speaker connecting terminal.
6. POWER INPUT - Power connection terminals.
• +12V - Positive Terminal, using a 4 or 0 Ga wire connect it
Directly to the Positive (+) Post of the car battery.
• REM - Terminal to Remote cable, which comes from the
source and controls the amplifier switching on.
(Applied voltage must be between 10 and 15VDC).
• GND - Ground terminal, using a 4 or 0 Ga wire connect it to
the car chassis. Keep the length of the ground
cable to a minimum.
1. FREQ - Perilla para el ajuste de la frecuencia, varía de 40 Hz
a 4KHz.
2. INTERRUPTOR SELECTOR DE FRECUENCIA: HP de alta
frecuencia, LP de baja frecuencia, F de frecuencia completa.
3. GANANCIA - Perilla para el ajuste de la ganancia de
entrada, esto varía de 0.2V a 6V de señal de entrada.
4. INPUT - Entrada de nivel bajo, esta es su entrada de señal
de audio RCA desde la fuente (unidad estéreo).
5. SALIDA DE ALTAVOZ - Terminal de conexión de altavoz.
6. ENTRADA DE ALIMENTACIÓN - Terminales de conexión de
alimentación.
• + 12V - Terminal positivo, con un cable de 4 ó 0 Ga conéctelo
directamente al terminal positivo (+) de la batería del
vehículo.
• REM - Cable de terminal a remoto, que proviene de la
fuente y controla el encendido del amplificador.
(El voltaje aplicado debe estar entre 10 y 15 VCC).
• GND - Terminal de tierra, con un cable de 4 ó 0 Ga conéctelo
al chasis del automóvil. Mantenga la longitud del cable de
tierra al mínimo.

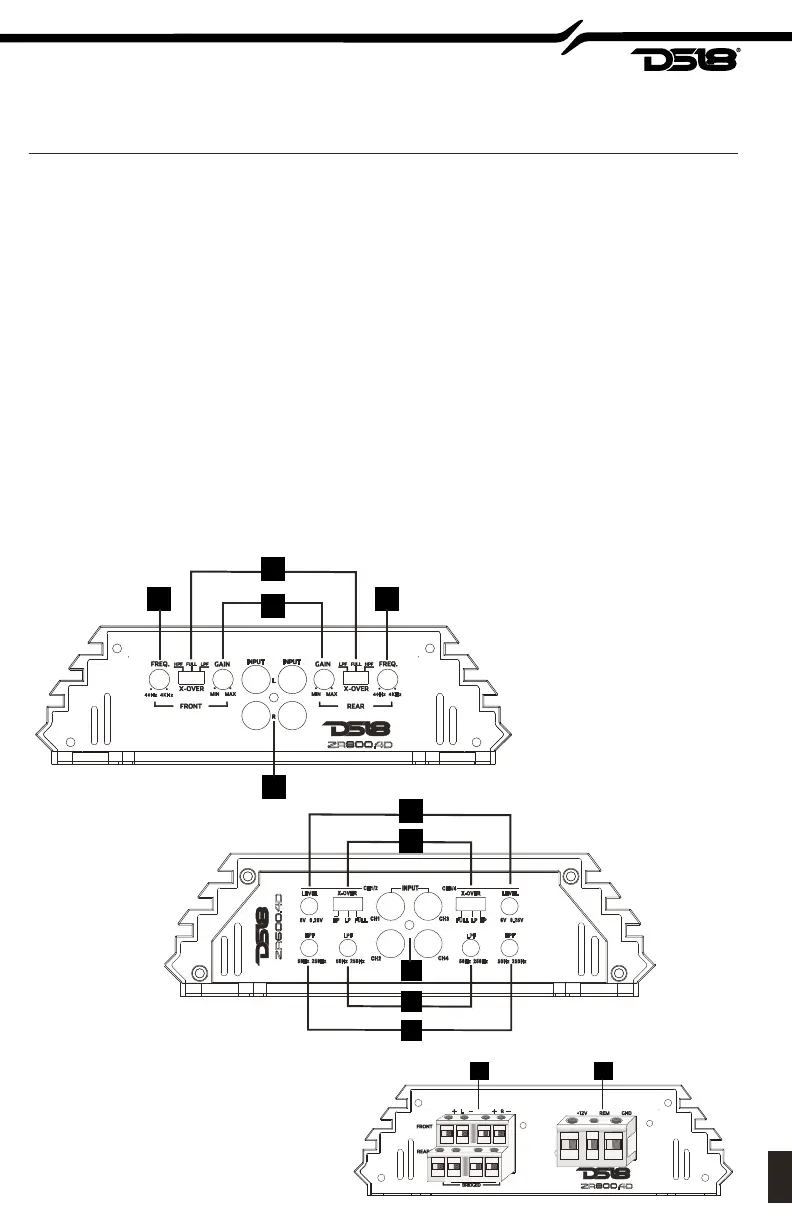

FEATURES / CARACTERÍSTICAS
4
1 1
2
3
4
ZR800.4D
ZR800.4D
5 6
9. SPEAKER OUTPUT
LEVEL
LEVEL
HP LP FULL
FULL LP H P
50Hz 250Hz
50Hz 250Hz
50Hz 250Hz
50Hz 250Hz
6V 0.25V
6V 0.25V
X-OVER
X-OVER
CH1/2
CH3/4
HPF
HPF
LPF
LPF
ZR600.4D
1
4
1
2
3
