DSC PC155O

20
PC1550

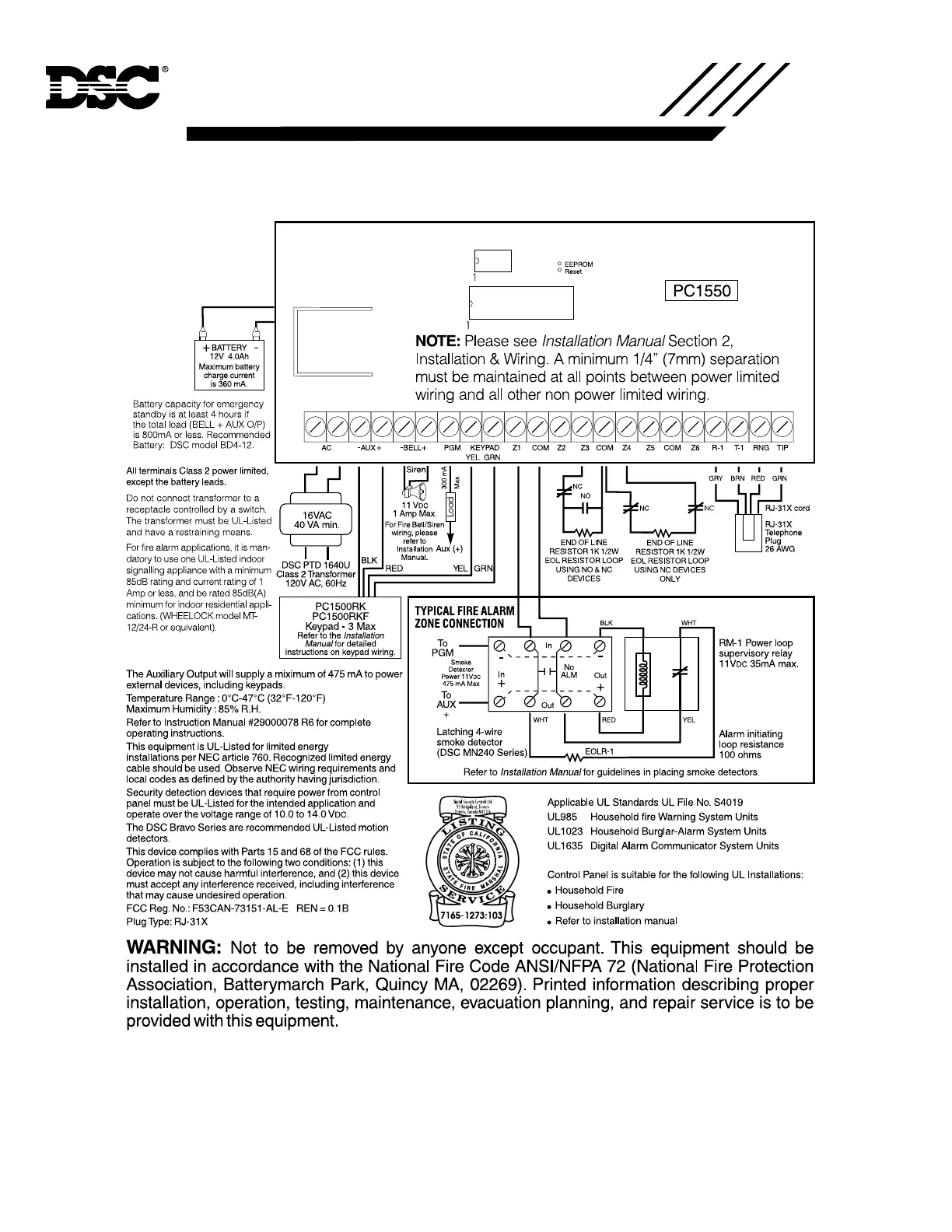

Control Panel Wiring Diagram
Incorrect connections may result in PTC failure or improper operation. Inspect wiring and ensure connections are correct before applying
power. Do not route any wiring over circuit boards. Maintain at least 1” (25.4mm) distance.
