The Liquid Crystal Display (LCD) displays prompts
and system information on two 16 character lines.
If “< >” appears, more information can be accessed
by using the arrow (< >) keys. Press [<] to see the
previous function or item of information. Press [>] to
advance the display to next function or item of
information.
Press the keys on the number pad as prompted by
the LCD display to view alarms or troubles, to arm and
disarm the system and to bypass zones.
To exit a function and return to the Ready state,
press [#].
To select a function press [
✱].

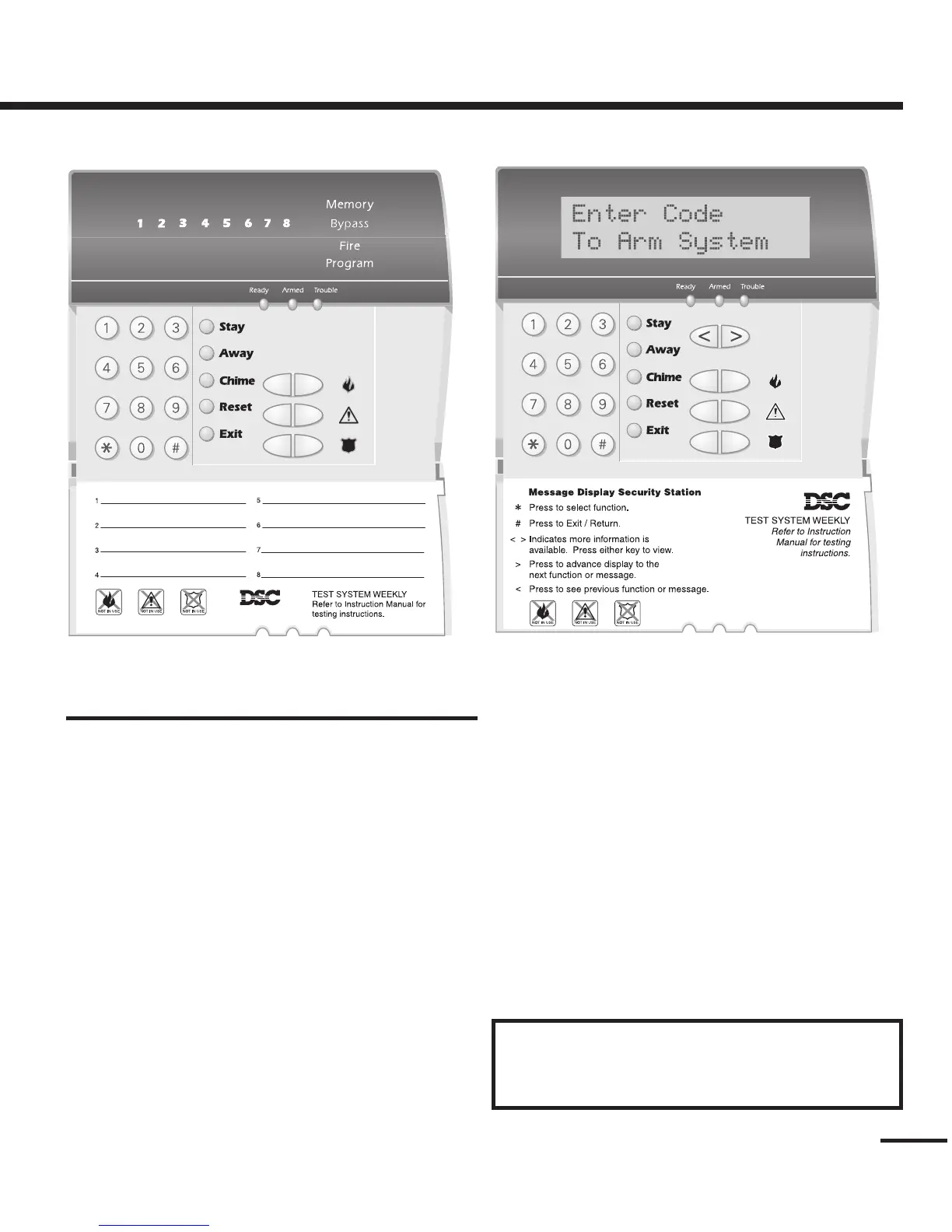

LCD5500Z KeypadPC5508Z LED Keypad
Important Note: Test system weekly and
have any system trouble conditions
corrected by your alarm installer.
Memory Light
Upon disarming, if an alarm has occurred while the
system was armed, the Memory light will turn ON
(See “Disarming the System” on page 6).
Bypass Light
If the Bypass light is ON, one or more zones are
bypassed (See “Zone Bypassing”
on page 10).
Fire Light
If the Fire light is ON, a fire alarm has occurred
(See “Fire Alarm Operation” on page 14).
Program Light
The Program light will flash when you are
programming access codes, or performing other
programming functions. If someone is
programming at another keypad, the Program light
will turn ON to indicate that the system is busy.
Display Lights (PC5508Z Keypad)
