Installation
49

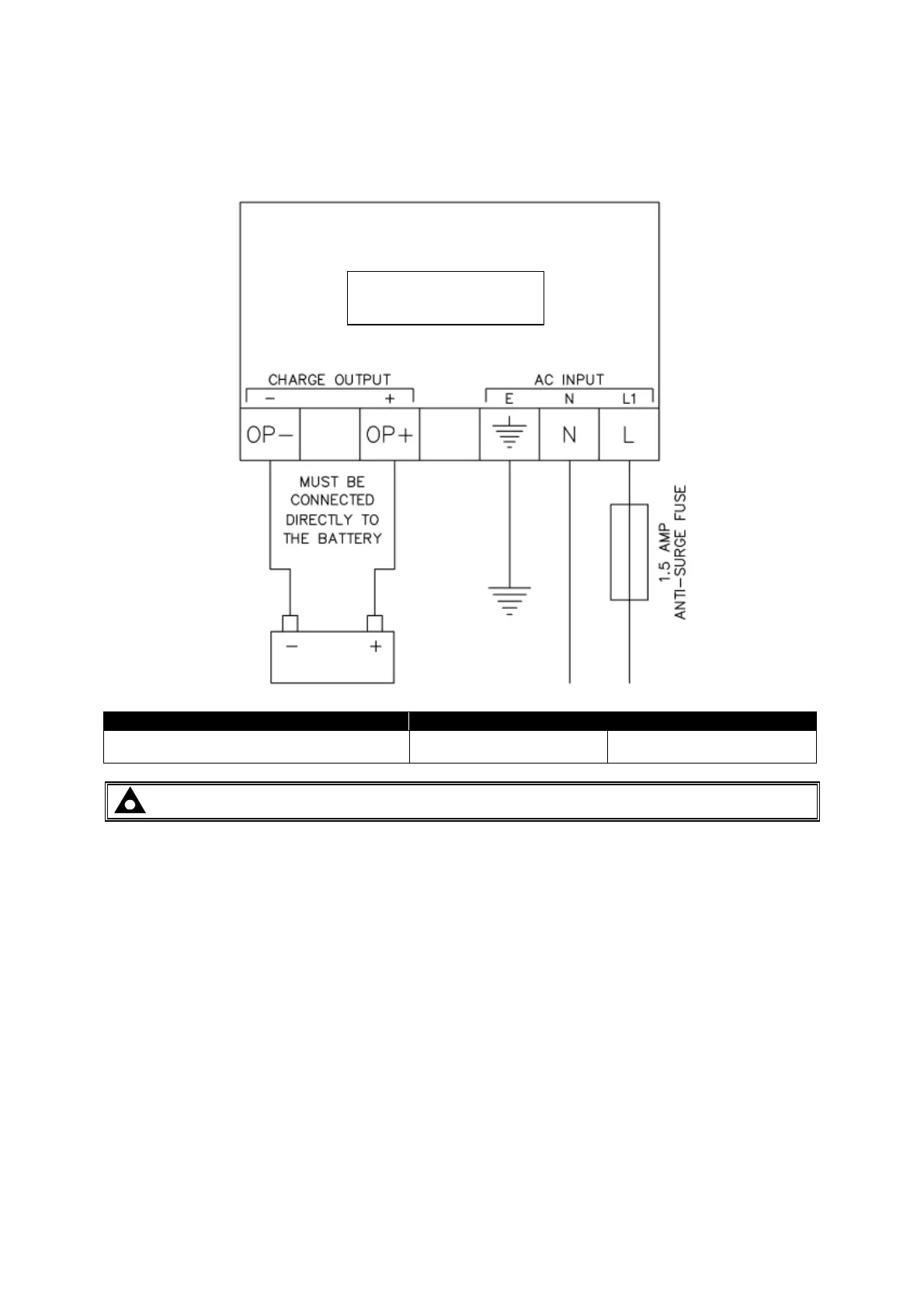

4.3 TYPICAL WIRING DIAGRAM
4.3.1 DSE9150
Recommended AC fuse
230V AC Input
110V AC Input
DSE9150 12V 2A charger (see Note below)
DSE9150 12V 3A charger
1.0A anti-surge
1.5A anti-surge
1.5A anti-surge
2.0A anti-surge
NOTE: DSE9150 12V 2A is no longer available and is included for legacy support only.
DSE9150
