DSPPA MP1010U - FRONT PANEL OVERVIEW

DSPPA MIXING AMPLIFIER
- 2 -

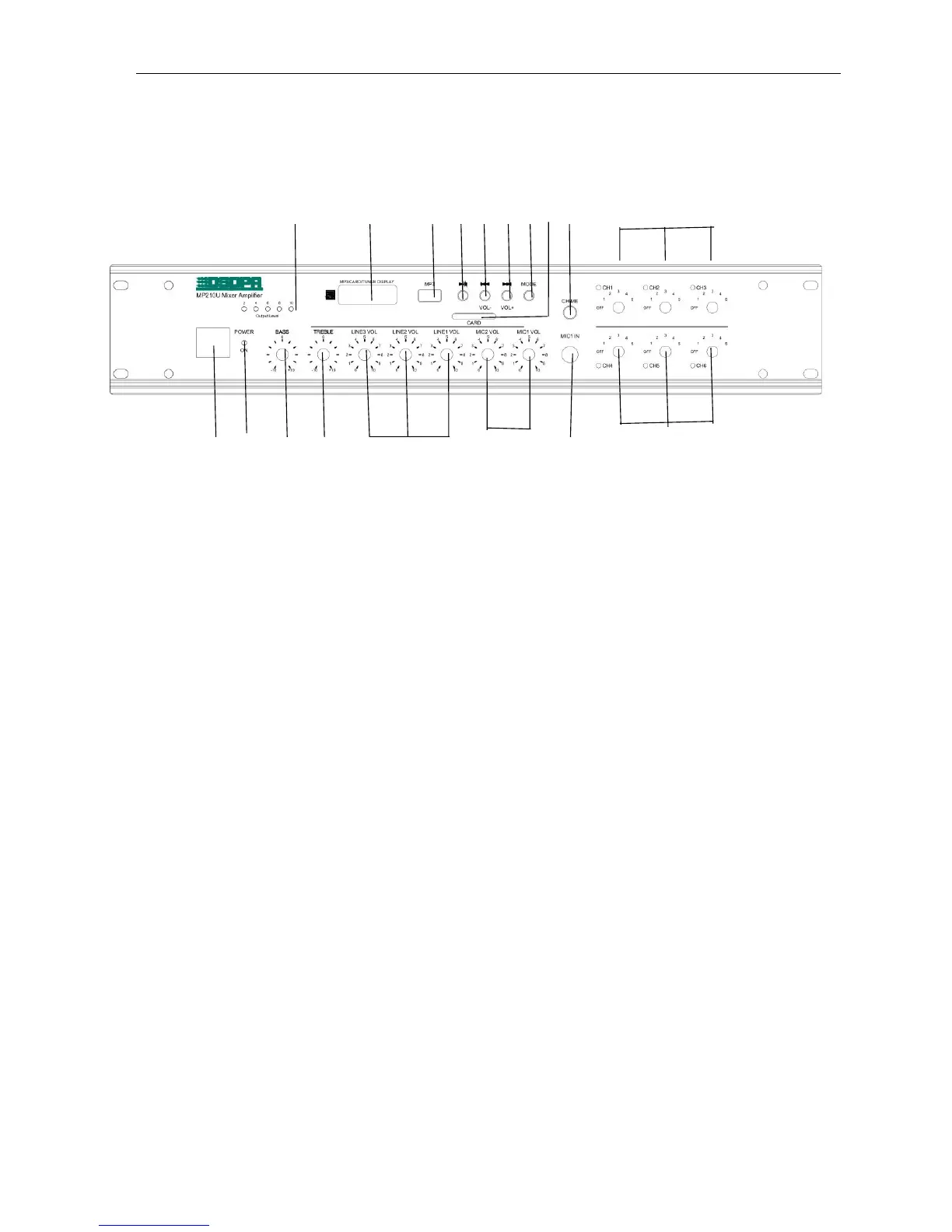

FRONT PANEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1. Power Switch
21
2. LED Power Indicator
22
3. Bass Adjustment Button
23
4. Treble Adjustment Button
24
5. Line Input Volume Adjustment Button
25
6. MIC Input Volume Adjustment Button
26
7. MIC 1 Priority Input Jack
27
8. Zone Volume Adjustment Button (1-6)
28
9. Zone Level Indicator
29
10. Chime Button
30
11. MP3 SD Jack
31
12. MP3/tuner select key
32
13. MP3/tuner status operation key
33
14. MP3/tuner status operation key
34
15. MP3/tuner status operation key
35
16. MP3 USB Jack
36
17. MP3/tuner status display
37
18. Five-unit LED Level Meter
38
39
Note:
40
When all five units of the LED level meter remain lit, it indicates that the sound is distorted. In such case,
41
adjusting each volume adjustment button until LED unit 4 (+8dB) and LED unit 5 (+10dB) flash.
42
18 17 16 15 14 13 12 11 10 9
1 2 3 4 5 6 7 8
