Revision Date / Version: 2/13/2014 - 7

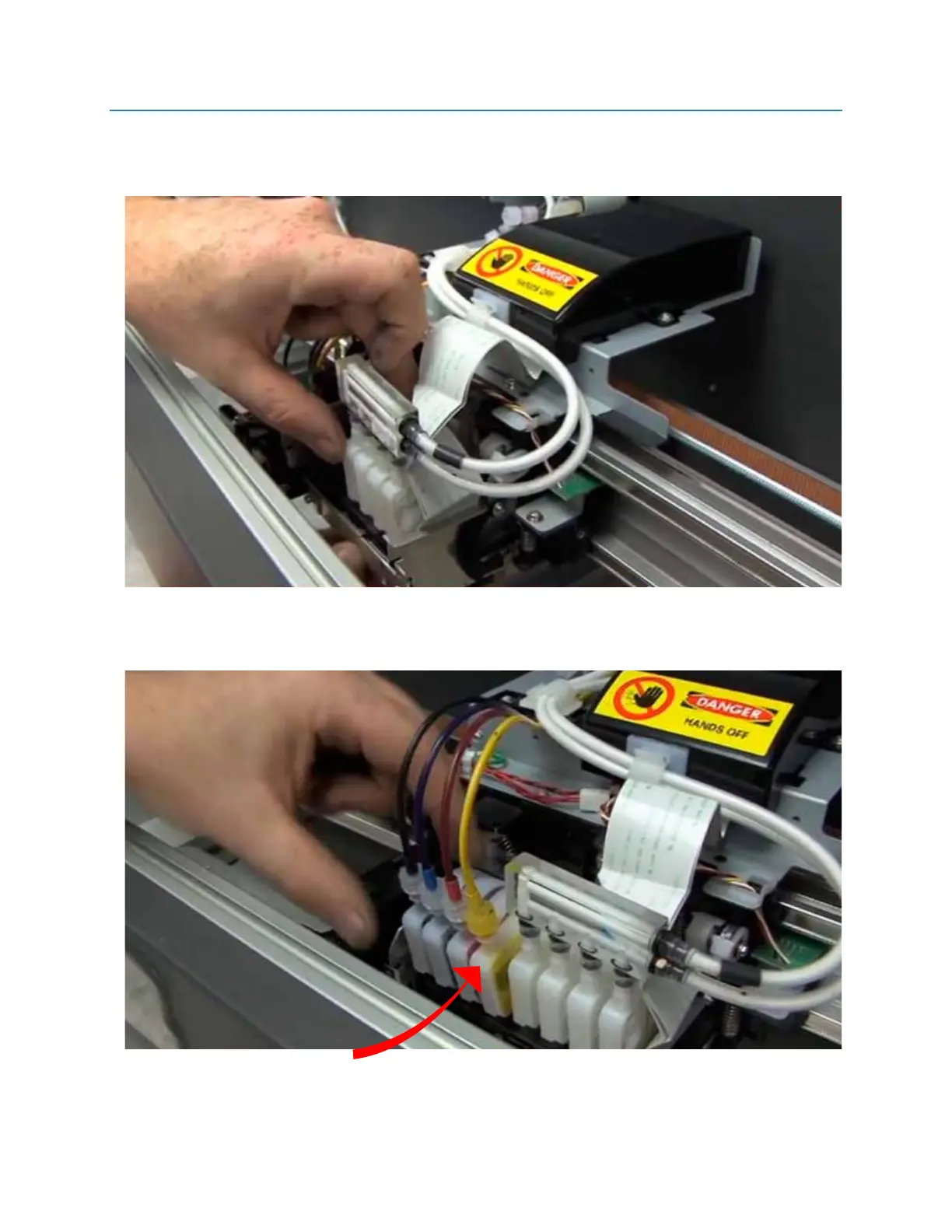

11. Carefully re-seat the white dampers first.
(Indicated below 1-P)
12. Re-Seat the CMYK dampers next, be sure to place the colors back into the correct order.
(from left the order should be BLACK, CYAN, MAGENTA, YELLOW) (Indicated below 1-Q)
Fig 1-P
Fig 1-Q
M2 (PRINTHEAD CABLE REPLACEMENT)
(Always POWER DOWN printer and UNPLUG before doing any repair work)
Be sure to place the CMYK dampers back in the correct order
from left the order should be BLACK, CYAN, MAGENTA, YELLOW
