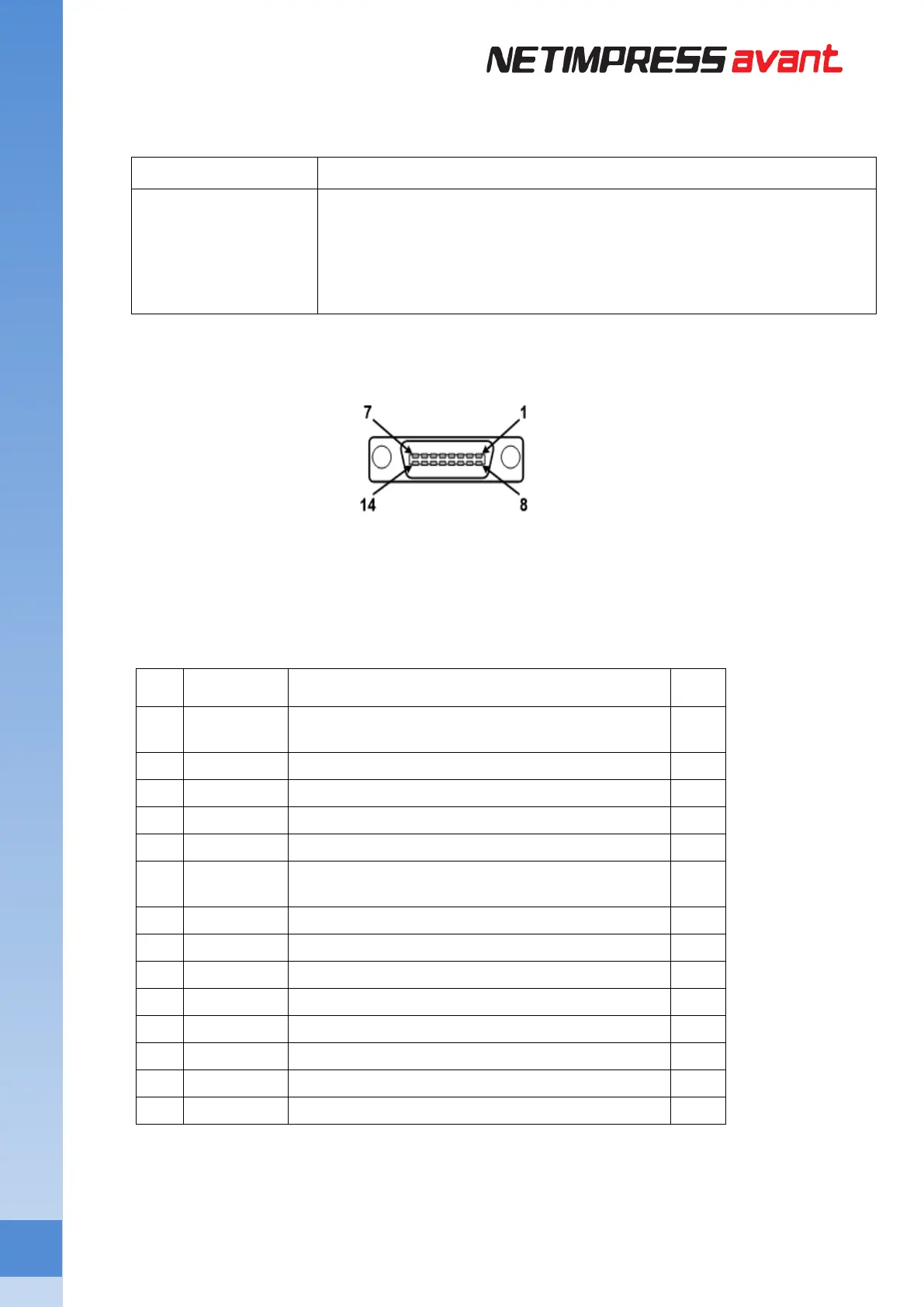

4.2.5. BCR interface
Item Specifications
BCR Connector Type HDR-EA14LFYPG1-SLG+
(Honda Tsushin Kogyo Co.,Ltd.)
Lock screw HDRA-E68LFD-7F
Number of port 1
 Connector type
 Pin assignment
Pin
No.
Signal
Name
Definition
I/O
1
VCC
Output 5 V (Max. 500mA for 1 and 6 pin
together)
OUT
2
GND
GND
-
3
RSV
-
-
4
RSV
-
OUT
5
RXD
Receive input for communication
IN
6
VCC
Output 5 V (Max. 500mA for 1 and 6 pin
together)
OUT
7
RSV
-
-
8
RSV
-
-
9
RSV
-
-
10
NC
NC
-
11
NC
NC
-
12
NC
NC
-
13
GND
GND
-
14
GND
GND
-
HDR-EA14LFYPG1-SLG+
(Honda Tsushin Kogyo Co., Ltd.)
