37
5.2.2. PHX401

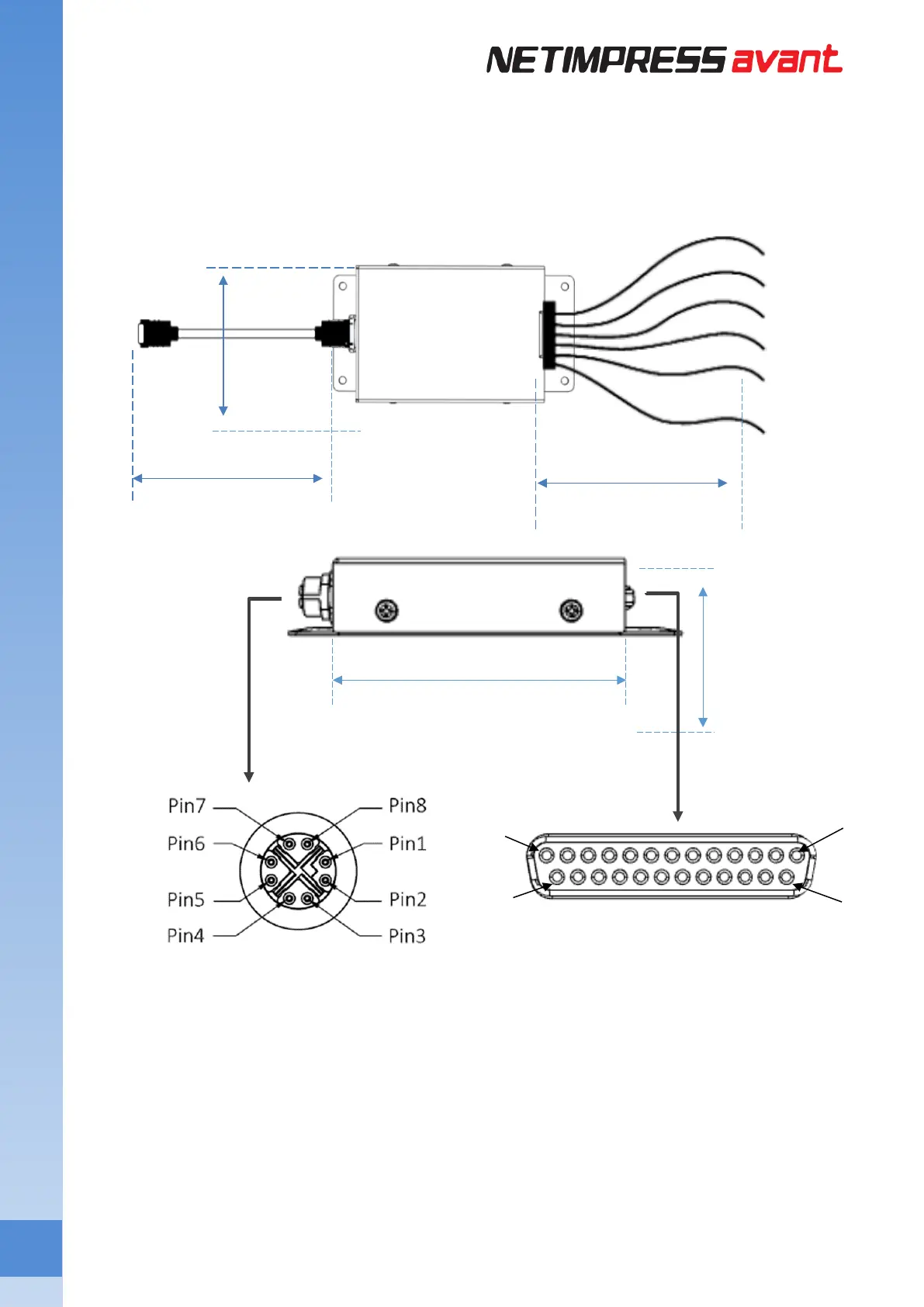

Dimensional drawing
Below shows surface and pins configuration
95(L)×65(W)×25(H)mm
65 ㎜
2000 ㎜ 300 ㎜
13
1
25
14
RDBD-25SE1/M2.6 (55)
（Hirose Electric Co., LTD）
MC08P2LPG30XSB2
(Cable Force)
95 ㎜
25 ㎜
