53

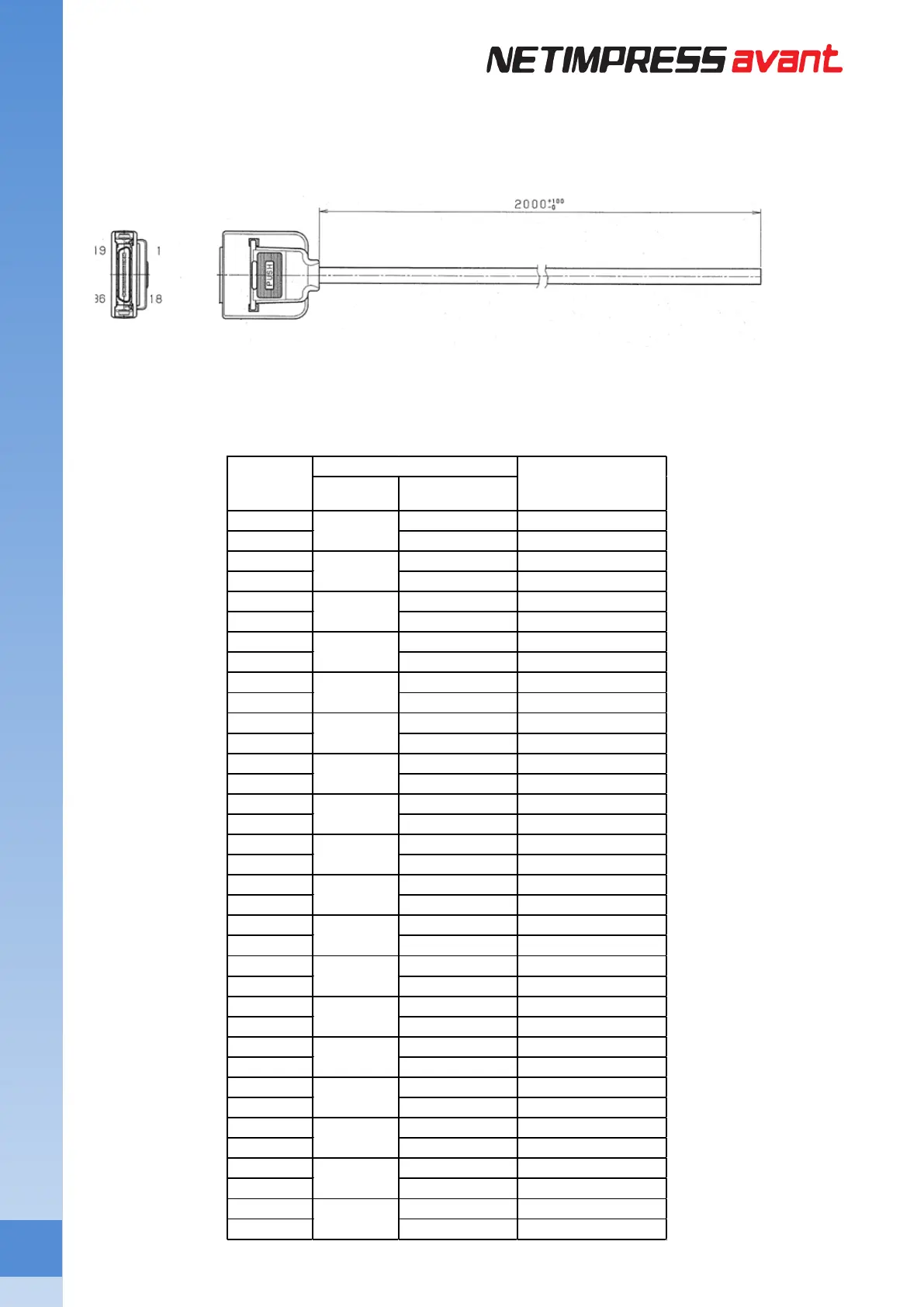

5.3.3. OCX120（DIO Cable）
Available for any type of connector.
Target-side
Wiring Specification
HDRA-E36MA+
(HONDA TSUSHIN KOGYO CO., LTD.)
Insulator
color
Dot Mark
1 Red 1 dot DOCOM
2 Black 1 dot DOVCC
3 Red 1 dot Pass
4 Black 1 dot Error
5 Red 1 dot RUN
6 Black 1 dot Digital I/O OUT0
7 Red 1 dot Digital I/O ST5
8 Black 1 dot Digital I/O ST6
9 Red 1 dot Digital I/O ST7
10 Black 1 dot Digital I/O ST2
11 Red 2 dots Digital I/O ST3
12 Black 2 dots Digital I/O ST4
13 Red 2 dots Digital I/O IN0
14 Black 2 dots Digital I/O IN1
15 Red 2 dots Digital I/O IN2
16 Black 2 dots Digital I/O IN3
17 Red 2 dots RSV
18 Black 2 dots DIVCC
19 Red 2 dots DOCOM
20 Black 2 dots DOVCC
21 Red 3 dots Digital I/O OUT1
22 Black 3 dots Digital I/O OUT2
23 Red 3 dots Digital I/O OUT3
24 Black 3 dots Digital I/O OUT4
25 Red 3 dots Rsv
26 Black 3 dots Rsv
27 Red 3 dots DIVCC
28 Black 3 dots Digital I/O IN4
29 Red 3 dots EXT1
30 Black 3 dots EXT2
31 Red 4 dots CLR
32 Black 4 dots STEP
33 Red 4 dots START
34 Black 4 dots Digital I/O ST0
35 Red 4 dots Digital I/O ST1
36 Black 4 dots DIVCC
Pin No.
Signal Name
Pin No.
Orange
Grey
White
Yellow
Pink
Orange
Grey
White
Yellow
Pink
Orange
Grey
Grey
White
White
Yellow
Pink
Orange
