104. Cabinet Mounting
The Synchron 400 and 525 VA models are supplied with two full length brackets for wall mounting; while the 750 VA
and up models are designed for oor mounting. These are also supplied with side mount stabilizing brackets to secure
the cabinet to the wall.
NOTE: Drilling holes in the cabinets will void all warranties.
Dual-Lite supplies the hardware to attach the brackets to the cabinet. Necessary hardware to fasten the cabinet to the
wall is to be supplied by the installing contractor. Please refer to the following illustrations.

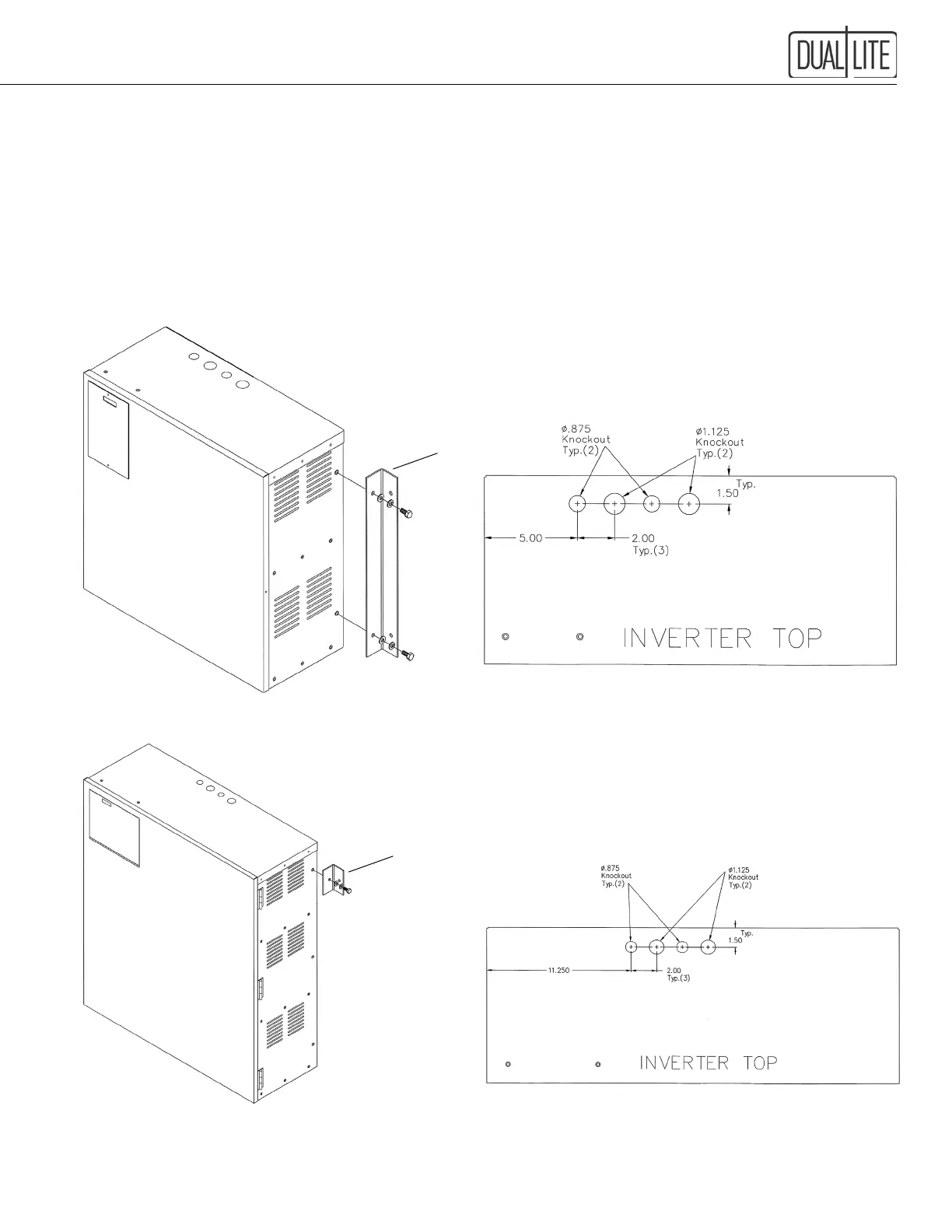

Fig. 1
400 and 525 VA units - Small cabinet
Fig. 2
750 to 2100 VA units - Large cabinet
Once the cabinet is securely fastened to the wall, run and attach conduit using the provided knock outs on the top of
the unit. If you need additional entry points, please use a metal punch. Do not drill into the cabinet as metal lings can
cause short circuits and damage the equipment.
Be sure to follow all federal, state, and local codes as it pertains to emergency circuit raceways.
Install Wall Mounting
Brackets To Both
Sides Of Cabinet
Install Wall Mount-
ing Brackets To Both
Sides Of Cabinet
