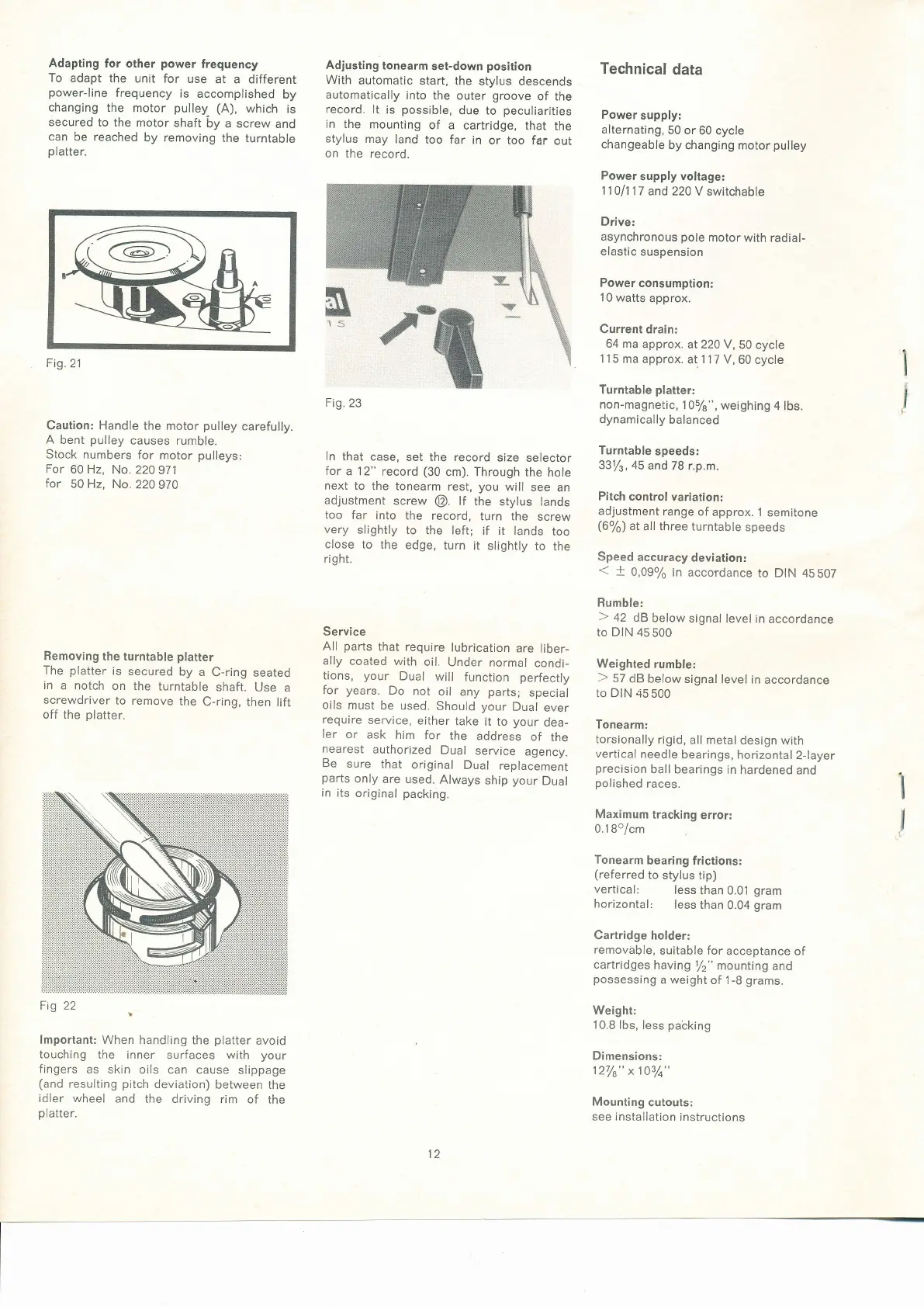

Adapting
for other
power
frequency
To adapt the
unit
for use
at a different
power-line
frequency
is
accomplished
by
changing the
motor
pulley
(A),
which
is
secured
to the motor
shaft
6y a screw
and
can
be reached
by removing
the turntable
platter.
Fig.21
Caution: Handle
the motor
pulley
carefully.
A bent
pulley
causes rumble.
Stock
numbers
for motor
pulleys:
For
60 Hz,
No. 220
971
for
50 Hz, No.
220
970
Removing
the turntable
platter
The
platter
is
secured
by
a
C-ring
seated
in
a notch
on
the
turntable
shaft.
Use a
screwdriver
to
remove
the
C-ring, then
lift
off the
platter.
Fig 22
r
lmportant: When
handling the
platter
avoid
touching
the inner surf
aces with
your
fingers
as
skin oils can cause
slippage
(and
resulting
pitch
deviation)
between the
idler wheel
and
the driving
rim of
the
platter.
Adjusting
tonearm
set-down
position
With
automatic
start,
the
stylus descends
automatically
into the
outer
groove
of the
record.
lt is
possible,
due to
peculiarities
in the
mounting
of a
cartridge,
that
the
stylus
may
land
too far
in
or too
fat
out
on the
record.
Fig.23
ln
that case,
set the
record size
selector
for
a 12"
record
(30
cm). Through
the
hole
next
to
the tonearm
rest,
you
will
see
an
adjustment
screw
@.
lf the
stylus lands
too
far into
the record,
turn the
screw
very
slightly
to the left;
if it lands
too
close
to the
edge,
turn
it slightly
to
the
right.
Service
All
parts
that
require
lubrication
are
liber-
ally
coated with
oil.
Under
normal
condi-
tions, your
Dual
will
function
perfectly
for
years.
Do
not
oil
any
parts;
special
oils
must
be used.
Should
your
Dual
ever
require
service,
either
take
it to
your
dea-
ler
or ask
him
for
the
address
of
the
nearest
authorized
Dual
service
agency.
Be
sure
that
original
Dual
replacement
parts
only
are
used.
Always
ship
your
Dual
in its
original packing.
Technical
data
Power
supply:
alternating,
50 or
60 cycle
changeable
by changing
motor
pulley
Power
supply voltage:
1101117
and
220 V switchable
Drive:
asynchronous pole
motor
with radial-
elastic
suspension
Power
consumption:
l0
watts
approx.
Current
drain:
64 ma
approx.
at220V,50
cycle
1 15
ma approx.
at 1 17 V,
60 cycle
Turntable
platter:
non-magnetic,
10s/6", weighing
4 lbs.
dynamically
balanced
Turntable
speeds:
331/3, 45
and
78 r.p.m.
Pitch
control
variation:
adjustment
range
of
approx.
'l
semitone
(60Ä)
at
all three turntable
speeds
Speed
accuracy
deviation:
<
+
0,09%
in accordance
to DIN 45S07
Rumble:
>
42 dB
below
signal
level in
accordance
to
DIN
45 500
Weighted
rumble:
>
57 dB
below signal
level in
accordance
to
DIN 45
500
Tonearm:
torsionally
rigid,
all metal
design with
vertical
needle
bearings, horizontal
2-layer
precision
ball bearings
in hardened
and
polished
races.
Maximum
tracking
error:
0.1 8o/cm
Tonearm
bearing frictions:
(referred
to
stylus tip)
vertical:
less
than 0.01
gram
horizontal:
less
than
0.04
gram
Cartridge holder:
removäble,
suitable for
acceptance
of
cartridges
having
t1r"
mounting
and
possessing
a weight
of 1 -B
grams.
Weight:
10.8
lbs, less
pabking
Dimensions:
127/s"
x 10t/^"
Mounting
cutouts:
see installation
instructions
I
J
I
I
[-
