Dual MWR15 - Control Locations; Dimension

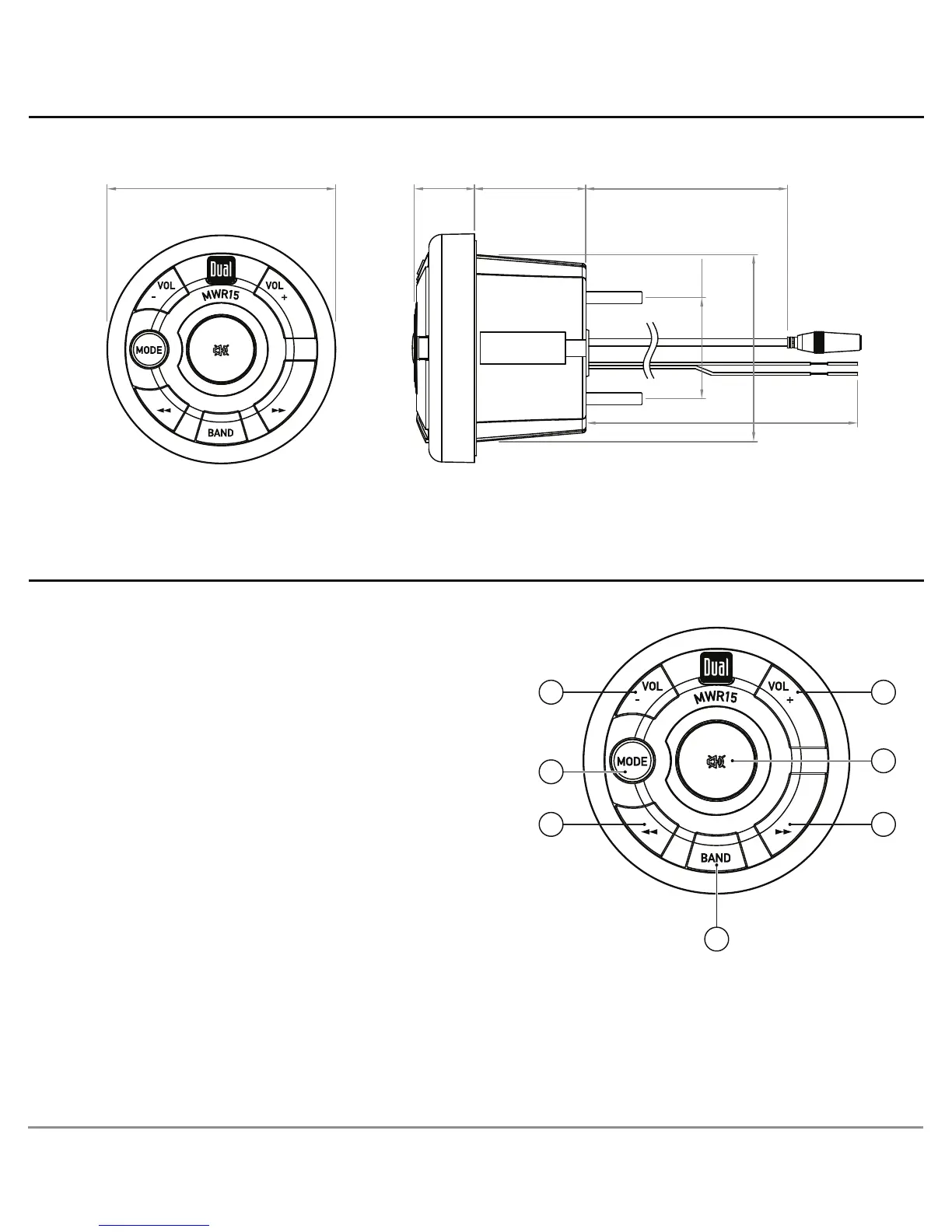

Dimension
Control Locations
6
5
Ø50mm(2")
Ø61mm(2.4")
31.6mm
(1.2")
29.6mm(1.2") 250mm(9.8")
250mm(9.8")
4
1. Volume up: To adjust volume up
2. Mute: To silence the audio
3. Tune/Track up: To move radio frequency
up in tuner mode or track in CD, USB
mode etc. that the receiver supports
4. Band: To select band, FM, AM, or
weather band if device is supported
5. Tune/Track down: To move radio frequency
down in tuner mode or track in CD, USB
mode etc. that the receiver supports
6. Mode: To select one of the modes available
7. Volume down: To adjust volume down
NOTE: Remote operation can be subject to the functions on the radio being
controlled.
2
7
2
3
1
16mm(0.6")
