Installation instruction
1. FC151 installation principle:

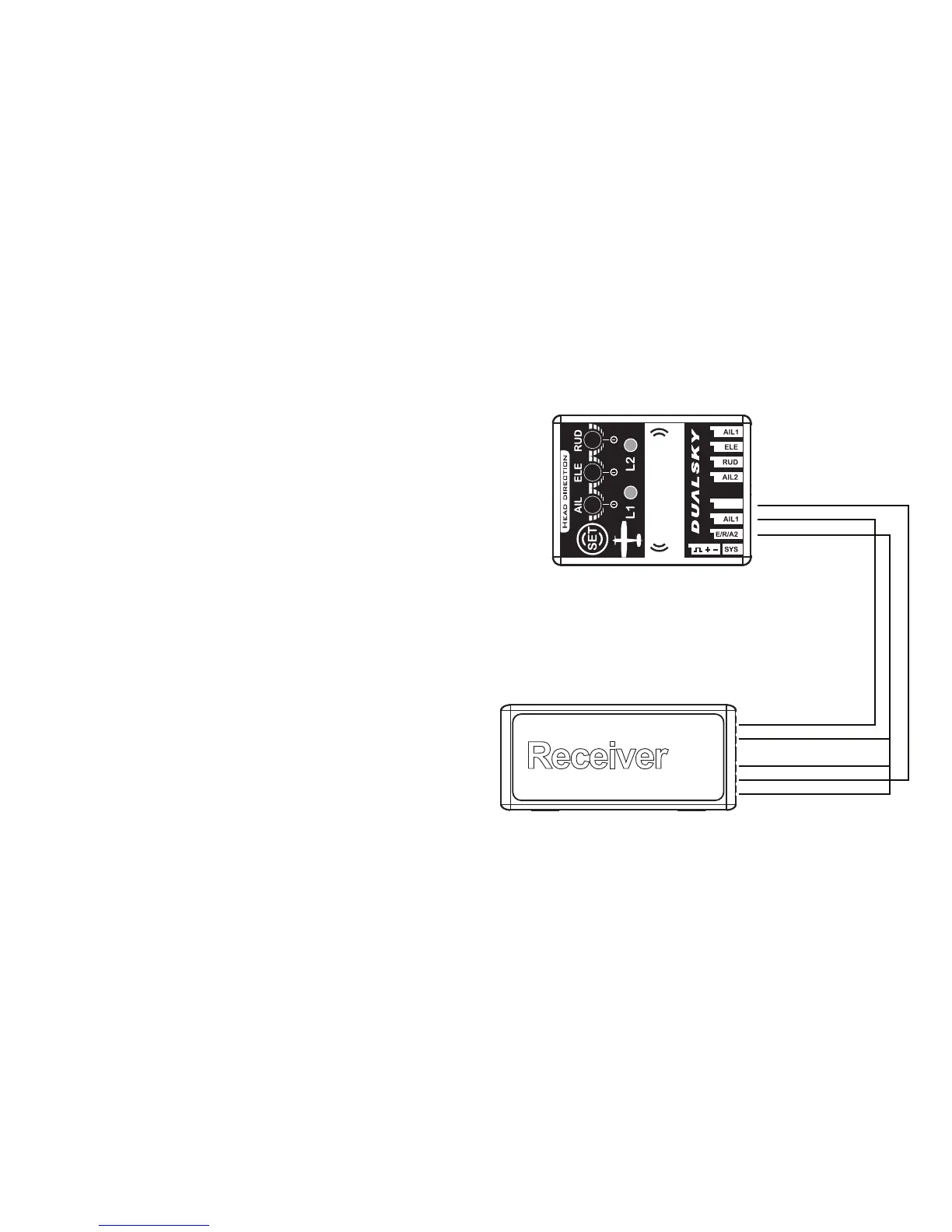

2. Connect the FC151 to receiver as shown below
Normal Receiver
MODE
AIL1
E/R/A2
CH5/GEAR
Rudder
Aileron1
Elevator
Reserved
N RN RN R
FC151
6-axis Flight Control
MODE
AIL
ELE
THR
RUD
CH5
Aileron2
AIL2
(
Orange
)
(
Red
)
(
Brown
)
● FC151’s heading direction must be the same as airplane
heading direction
● FC151 must be mounted parallel to flight path, otherwise
airplane will yaw.
● FC151 should be installed inside of the airplane, close to the
receiver and CG.
● Install platform must be parallel to horizontal tail, solid
(recommend to use plywood), but do not use servo mount
platform.
● Use accessary double side tape to fix FC151, do not use strap,
patch or 3M Dual-Lock
● Do not wrap FC151 in foam
● FC151 cannot be touched by servo horn, linkage or other
moveable parts
● FC151 must stay away from motor, engine, ESC and batteries
● FC151 cannot be installed outside the airplane, such as wings or
tail
