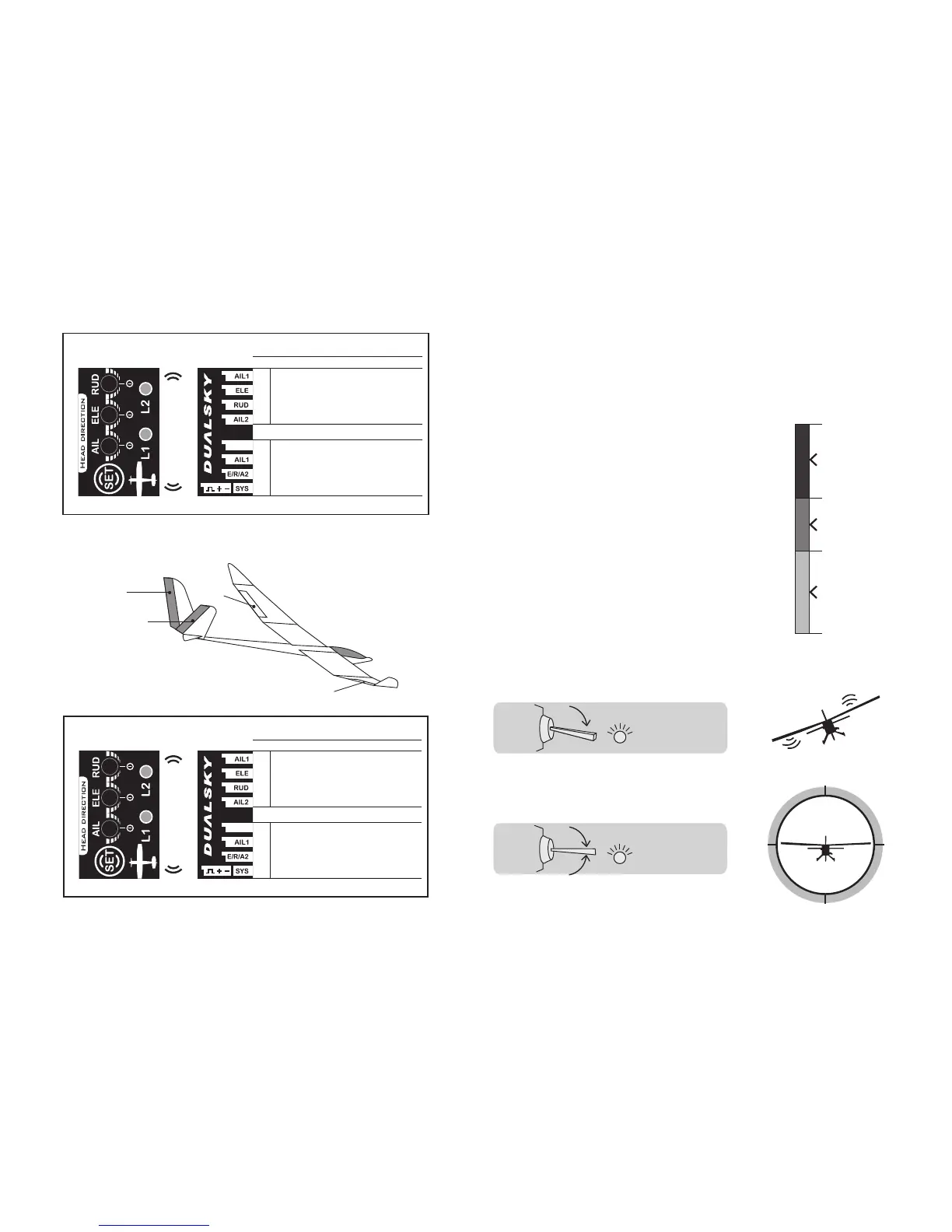

4. FC151 Power Supply
● V-tail airplane
* V-TAIL
FC151 supports 4.8V-8.4V input voltage, share the same power
with receiver, input voltage should meet the requirements of
receiver, too. Power supply could be battery or ESC.
Set mode switch
Mode select switch is used for select
different flight modes. Please assign a
3-position switch to mode channel and
make sure that channel doesn’t have
other functions. Switch channel pulse
width range should be low
800~1340us, middle 1340~1700us,
high 1700~2200us. If the mode
channel is not connected, the FC151
will work in auto-level mode.
L2
Blue(0.5S)
LOW
L2
Middle
Green(0.5S)
Gyro Off Mode: Position low, FC151 outputs receiver’s signal
directly
Aerobatic Mode: Position medium, only 3 axis gyroscope
working
OUTPUTINPUT
N RN RN R
FC151
6-axis Flight Control
MODE
V-tail Airplane
PIN (Socket) Location
Aileron
Elevator
Rudder
Aileron2
TOP
Switch
Aileron
Elevator
S.BUS
MIDDLE
VDD
VDD
VDD
VDD
VDD
VDD
VDD
Rudder
BOTTOM
GND
GND
GND
GND
GND
GND
GND
Aileron2
* VDD is positive lead. *GND is negative lead.
OUTPUTINPUT
N RN RN R
FC151
6-axis Flight Control
MODE
Fly-wing/Delta-wing
PIN (Socket) Location
Aileron
Elevator
Rudder
N/A
TOP
Switch
Aileron
Elevator
S.BUS
MIDDLE
VDD
VDD
VDD
VDD
VDD
VDD
VDD
Rudder
BOTTOM
GND
GND
GND
GND
GND
GND
GND
N/A
* VDD is positive lead. *GND is negative lead.
Elevator
Rudder
Aileron
Aileron2
High(+100)
Middle (0)
2200us
1700us
1340us
800us
Low(-100)
