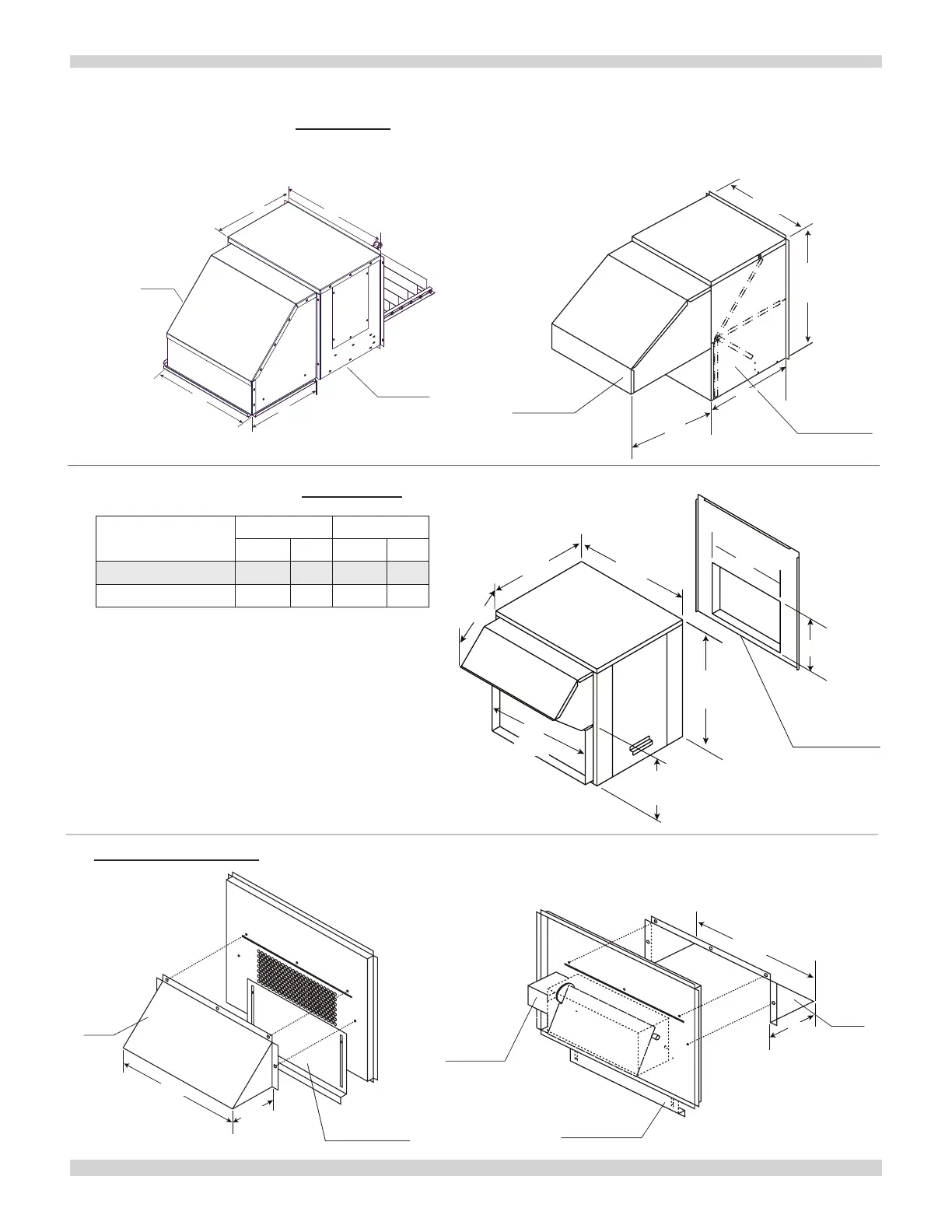

AccessoriesDimensionsinches(mm)
ECONOMIZER DAMPERS - DOWNFLOW
For 24, 30 and 36 Models
For 42, 48 and 60 Models
ECONOMIZER DAMPERS - HORIZONTAL
Model No.
A B
in mm in mm
RGE13A 24, 30, 36 17-5/8 448 11-1/2 292
RGE13A 42, 48, 60 21-3/4 552 12-1/4 311
FRESH AIR DAMPERS
Manual
Motorized
Barometric
Relief Damper
(Underneath)
Fresh Air Head
with Filter
12
18-3/8
16-13/16
13-7/16
Fresh Air Hood
with Filter
Barometric
Relief Damper
(Underneath)
19
(483)
28-1/4
(718)
19
(483)
24
(610)
Economizer
Adapter
(Shipped attached
to economizer)
26
(660)
12
(305)
24
(610)
22-1/4
(565)
26
(660)
9-1/2
(241)
B
A
Air Intake
Hood
Adjustable Air
Slide Damper
13-3/4
(349)
5
(127)
Motorized
Damper
Assembly
Adjustable Air
Slide Damper
Air Intake
Hood
5
(127)
13-3/4
(349)
