RCE13 Package Gas / Electric
- Page 8 -

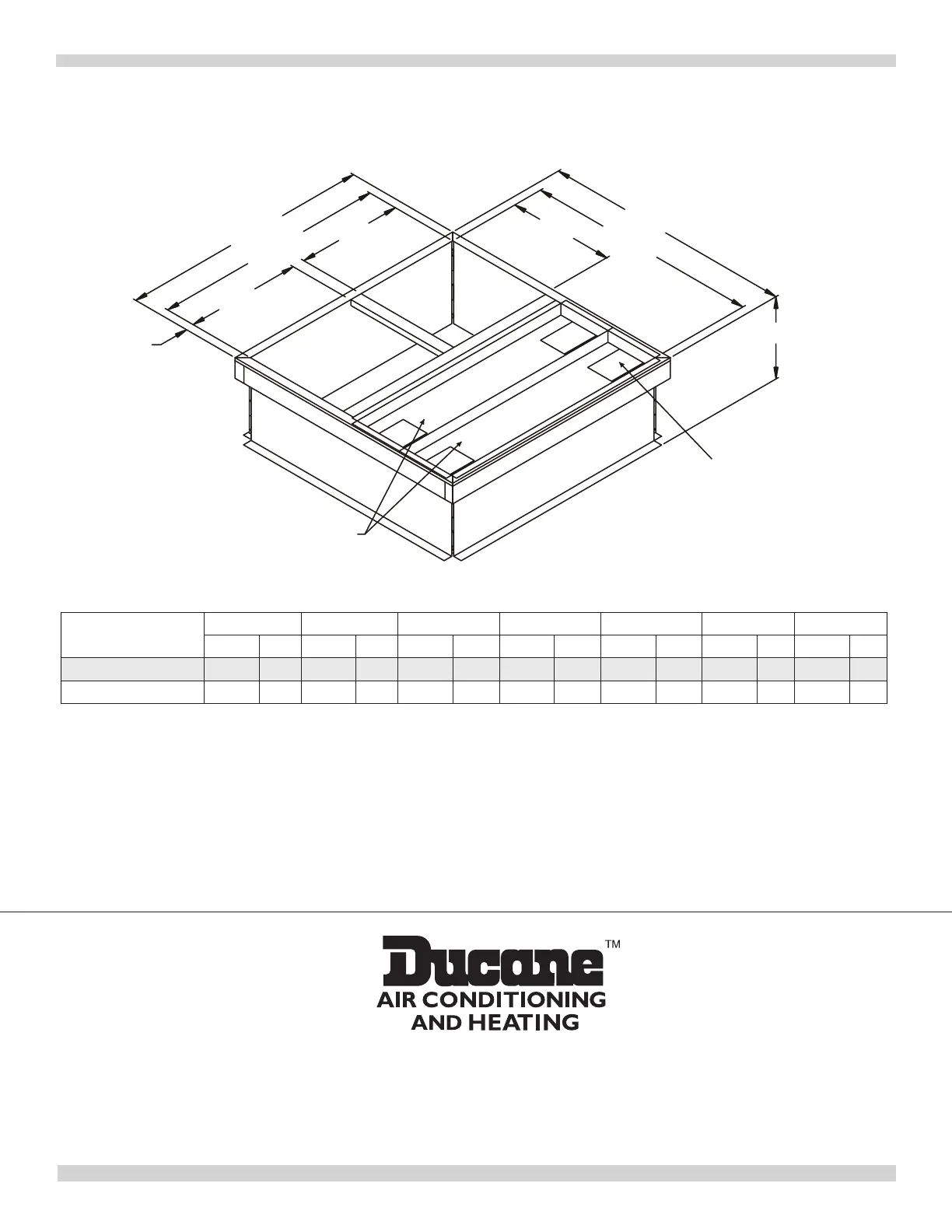

ROOF CURB
AccessoriesDimensionsinches(mm)
C
B
E
G
F
14
D
A
Insulated Pans
Bottom Entry
Power
(RGE13A 42, 48, 60 Curb Only)
1-1/2 (38)
Model No.
A B C D E F G
in mm in mm in mm in mm in mm in mm in mm
RGE13A 24, 30, 36 43 1092 40 1016 43 1092 40 1016 18 457 20 508 19 483
RGE13A 42, 48, 60 47-1/8 1197 44-1/8 1121 52 1321 49 1245 23-1/2 597 23-1/2 597 19-1/2 495
