ONLY” or “120V/240V”. If a 240V appliance is connected to the 4-prong receptacle, the switch must be in the
“120/240V” position. If only a 120V appliance is being connected to any of the120V 3-prong receptacles, select
the “120V ONLY” position.

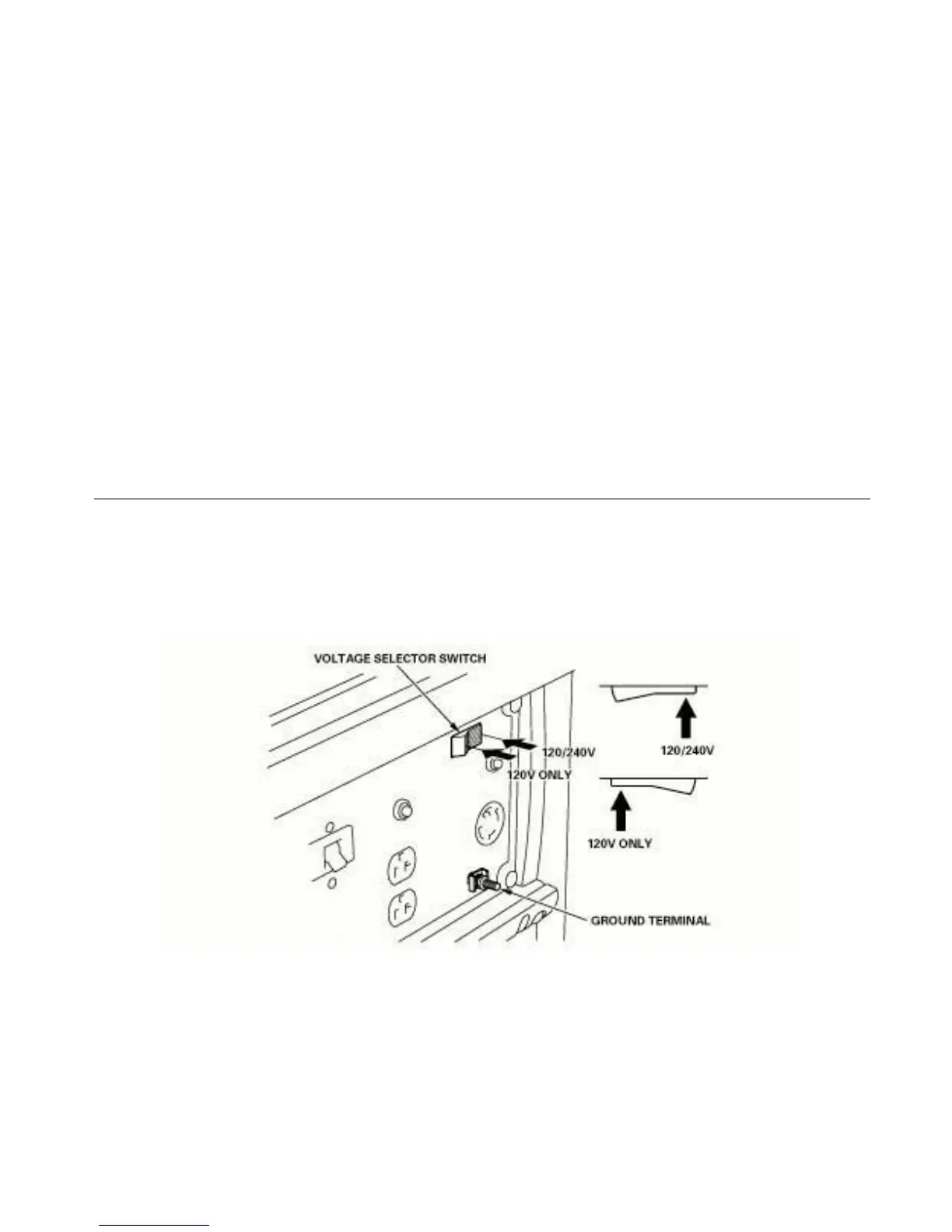

CONTROL
Switch Position
120/240V: The 120Vand 120/240Vreceptacles can be used simultaneously.
120V ONLY: ONLY the 120V receptacles can be used. Do not use the 120/240V receptacle in this position.
The most power will be available at the 30A 120V locking plug receptacle.
-
- 13 -
