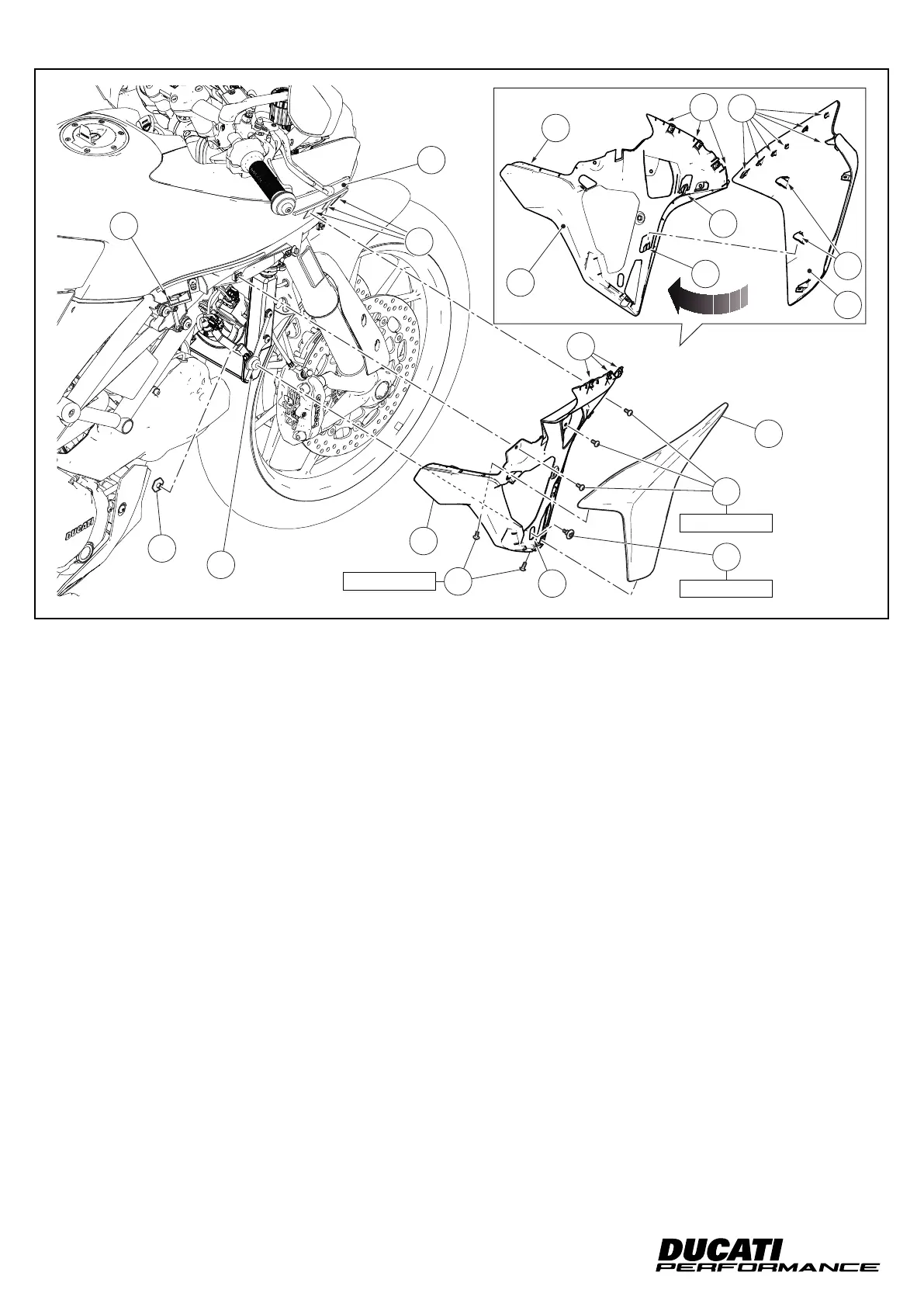

Side panel reassembly (For Multistrada 950 from
MY19 and Multistrada 1260 from MY18)

            













            

Repeat the same procedure to reassemble the LH side panel and

Rimontaggio ali laterali (Per Multistrada 950 da
MY 19 e Multistrada 1260 da MY18)

          






        
          
        
         
    

          
          




ISTR 844 / 01
17
A
A1
B
B4
B3
B6
N
B5
C1
C
L
B
A
A2
B1
B1
B2
B2
A3
2 Nm ± 10%
5 Nm ± 10%
2 Nm ± 10%
B7
