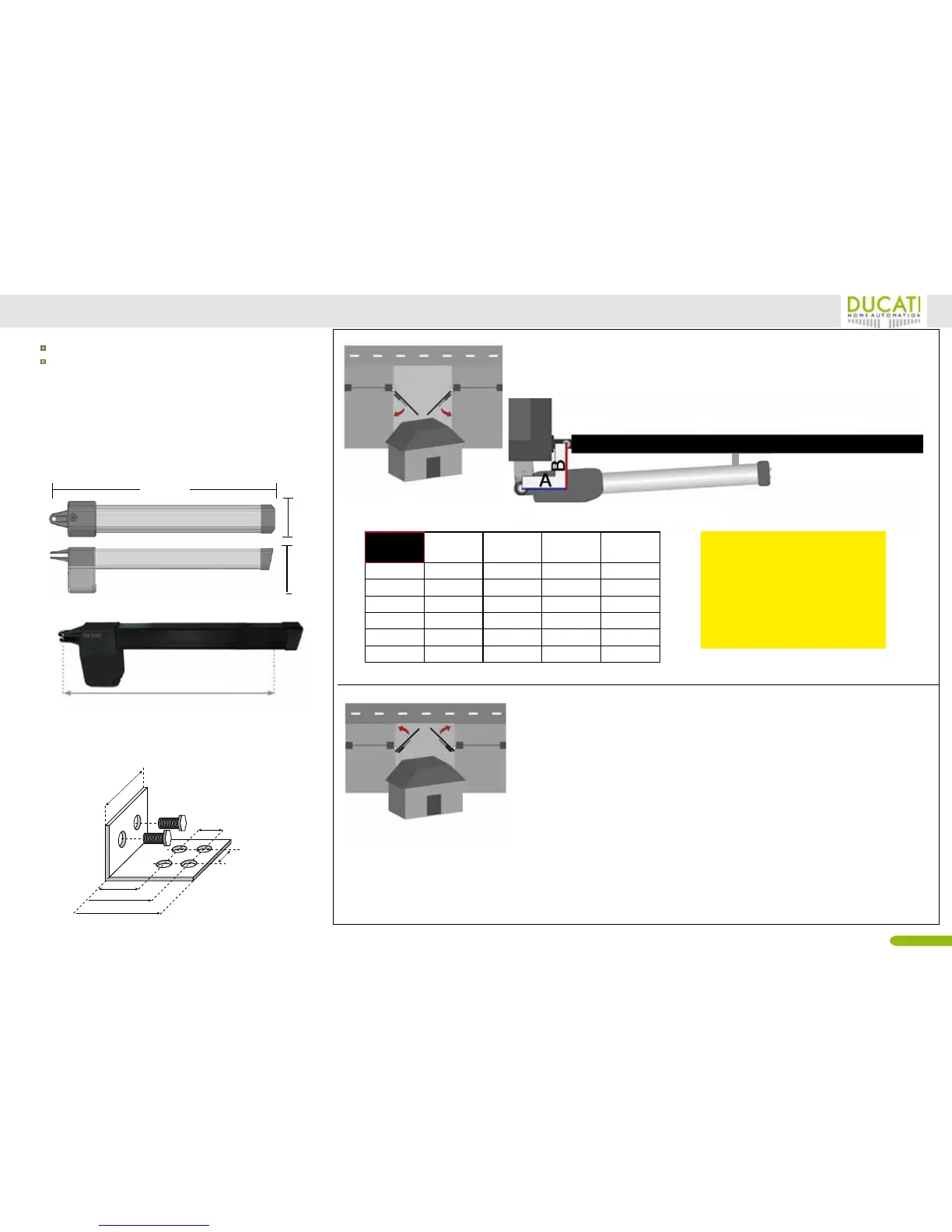

DUCATI actuator model HC518 Installation diagram
HC518
HC518 FC (with on board open& closed position
mechanical limits)
each model is also available in 24V version
PUSH TO OPEN OPERATION (opens towards outside)
If your driveway slopes up after the gate, preventing it from swin-
ging in. This means the gate operator is mounted on the inside
of the property and pushes your gate out away from the property.
Warning: only compatible with telescopic tube actuators, Check
the overall dimensions before installation.
Warning:remember to reverse the polarity of the motor cables
when connecting to the electronic board
D = 6cm
D = 8,5cm
D = 10cm
D = 2,5cm
D = 2,5cm
D = 5,4cm
Supplied xing braket:
choose the hole most suitable to your gate.
You can cut the plate if necessary
NOT POSSIBLE WITH THIS ACTUATOR MODEL: IT REQUIRES TELESCOPIC ACTUATORS
PULL TO OPEN OPERATION ( opens towards inside)
This means the gate operator is mounted on the inside of the property
and pulls your gate in towards the property to open.
METRIC CONVERSION
1 cm = 1⁄2
”
= 0,3
”
10 cm = 4
”
12 cm = 4
3⁄4
”
= 4,7
”
14 cm = 5
1⁄2”
= 5,5“
16 cm = 6
1⁄5”
= 6,2
”
18 cm = 7
”
OUTSIDE
Rear pivot point of gate opener
In line with center hinge
maximal
dimension
A=10 cm A=12cm A=14 cm A=18 cm
B= 10cm 108° 115° 120° 100°
B= 12cm 105° 112° 100° 100°
B= 14cm 103° 109° 98° /
B= 16cm 101° 97° 90° /
B= 18cm 97° / / /
B = 22 cm 90 ° / / /
820 mm
100
mm
160
mm
Maximal wing dimension:
Maximal wing lenght: up to 3m/ 8,5 ft
Maximal wing weight: up to 300kg/ 760lb
180 -660 mm
INSIDE
