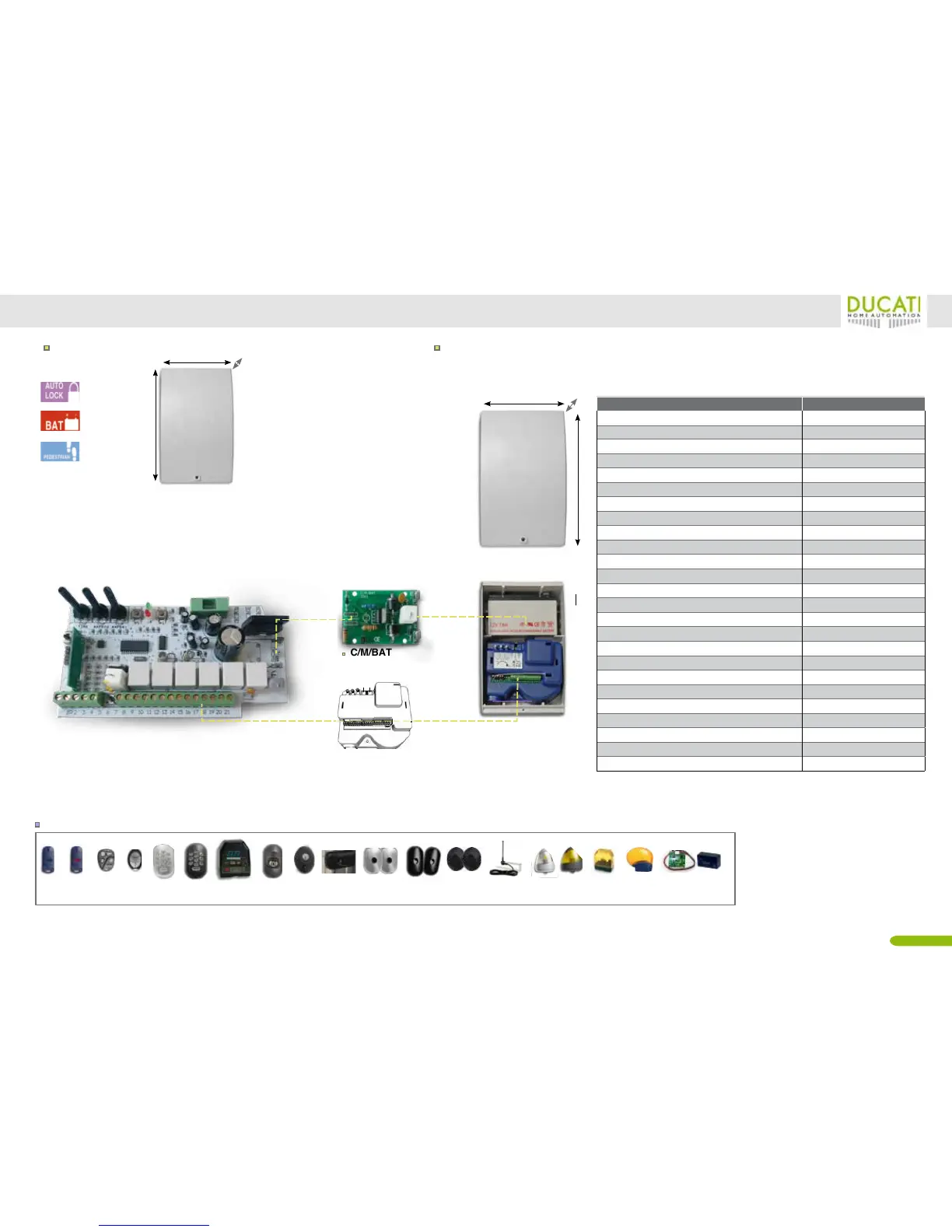

DUCATI electronic board CTH42 “Standard level”
TECHNNICAL DATA
CTH42
Power supply (on demand)
230V ( 110V on demand)
Use on 1 or 2 wings gate √
Protection fuse
√ 10AF
Transformer protection fuse
0,8A T ( 1,2A T )
Toroidal transformer’s Watt
105W
Output services
12V
Power consumption in stand-by
22 mA
Radio receiver (channel)
2 channels
Remote control storage capacity
10
Radio transmission protocol
DUCATI rolling code 433MHz
Remote control automatic learning
√
On board Antenna
√
External antenna input √
Automatic close function ( timerized)
0-100 sec.
Anti-pressure safety system
√
Motor power adjustment √
Timerized Courtesy light contact √
Output for elecktrolock 12V dc
Safety beam/ Photocells input
√
Full cycle START (NO contact)
√
Pedestrian cycle START ( NO contact) √
Flashing light output
12V max 10W
Output to optional battery charger module(CMBAT) √
LED indication of Power supply √
Gear anti-pressure system
√
Pult
6203R
Tasty
6700
6704
Pult
6204
Rixy
6040
6043
Pult
6203P
SW
6500
6504
Pult
6206
KEY
5000
KEY
5001
E-LOCK
1012+
booster
LASER
7012
LASER
100
STILO
6023
6025
FLASH
7712
FLASH
7512
CMBAT**HC
7500/12
7512
BAT
1012
KB
900KB
900
SW7012
Compatibles accessories
7855
Complete Large size control box with CTH42
CTH42
Electronic board
120 mm
180 mm
290 mm
P1 P2
C/M/BAT
optional additional battery
charger module
120 mm
180 mm
290 mm
