DUCATI KEY SWITCH KEY 5000 / KEY 5005

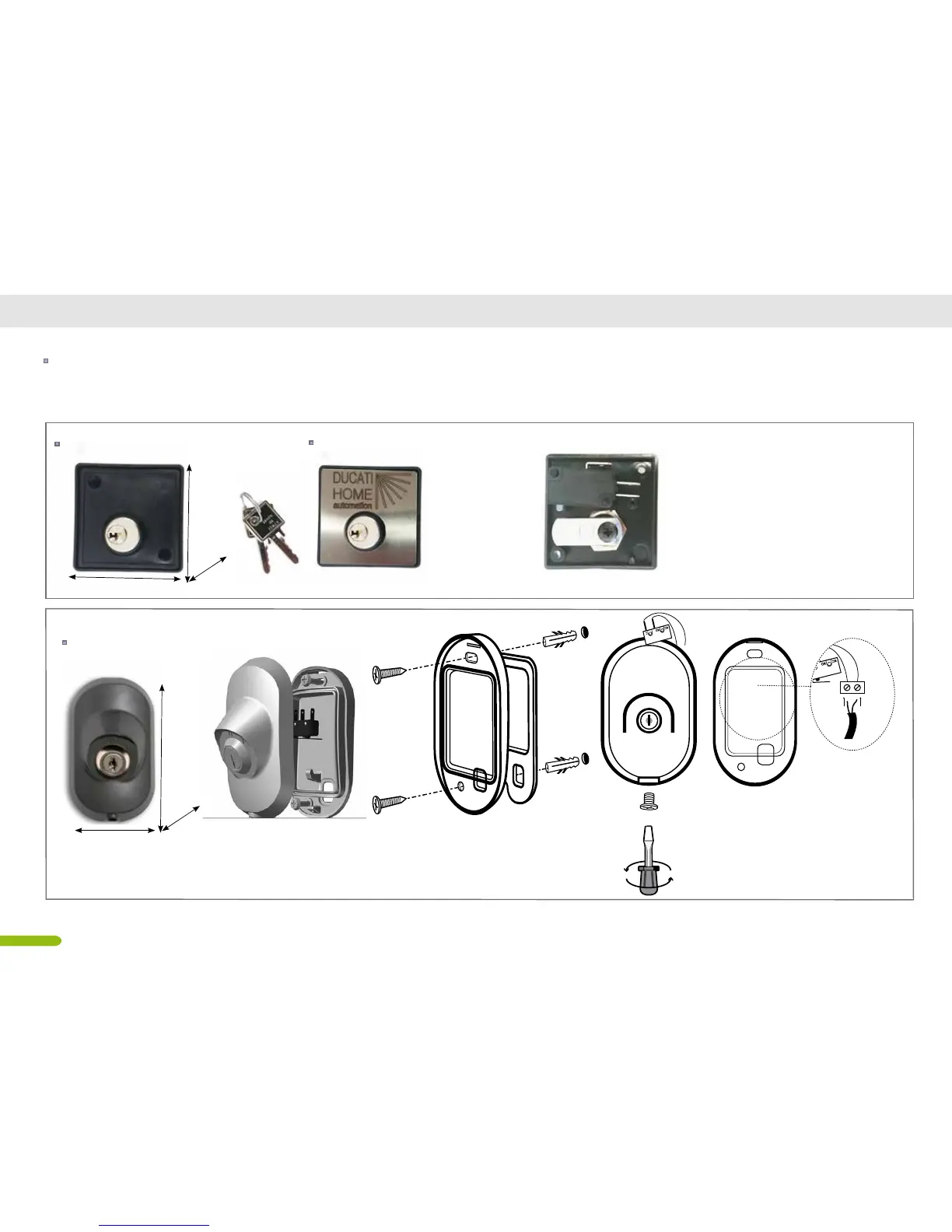

Wired Key Switches: KEY 5000 / KEY 5005 / KEY 5005 INOX
Connect connectors 1 & 2 to the START normally open contact of any DUCATI electronic board to command a full cycle maneuver ( both wings will operate a full cycle, or in case of single wing gate use, the single
gate will operate a full cycle)
Connect connectors 1 & 2 to the PEDESTRIAN START normally open contact of a DUCATI electronic board to command a partial pedestrian maneuver ( only 1 wing will partially open to permit pedestrian access only)
In case you want to connect more than one key swithc or any other NO Switch or Braker make a parallel connection. For extra safety it is advisable to wall up the connection cable.
1 2
KEY 5000
92 mm
54 mm
25 mm
58mm
KEY 5005
KEY 5005 INOX
33mm
58 mm
1
2
