27
120 mm
180 mm
290 mm
120 mm
120 mm
290 mm
Kontrol”mini”
“Small size” kontrol box
Kontrol
“Large size” control box
B
A
A
B
DUCATI Control boxes & wiring
2. PREPARATIONS
Prepare the insulated cable ducts for motors and accessories wires (not supplied). Prepare the power plant to the location where you intend to attach the control unit (not
necessary in the case of self-powered SOLAR PANEL powered openers) Warning: the power of the high-voltage current must be managed exclusively by a specialized technician.
Do not manage yourself the power supply connection 230 / 110V: Danger of Death!
Caution: it is recommended to prepare a disconnection device to be used in case of emergency. Warning: the control unit and activation commands must be installed in a not
acessible place and at a height from the ground, not allowing the use by unauthorized persons or children.
13.CONTROL BOX INSTALLATION
Fix the bottom of the control unit to the wall or pillar using apropriates screws and plugs (not supplied). It is advisable to seal any holes to prevent water infiltration, moisture, dust
and insects. It is recommended to provide appropriate compression sleeves (not supplied)

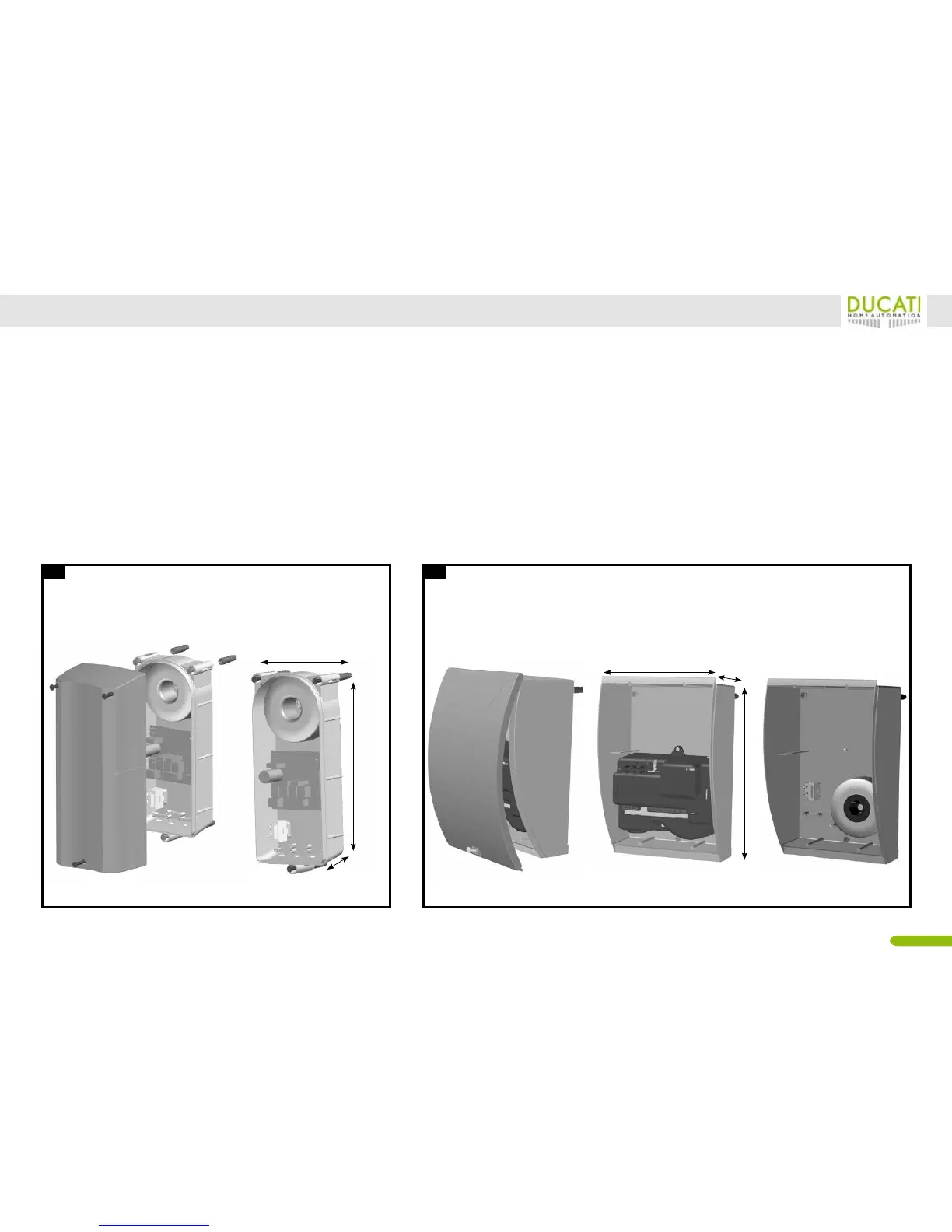

Small control box KONTROL” Small” see pic.39 Large control box KONTROL”Largel” see pic.40 The control Kontrol “Large” is equipped with a inner protective cover underneath
witch are inseted the electronic board and the toroidal transformer.
39 40
