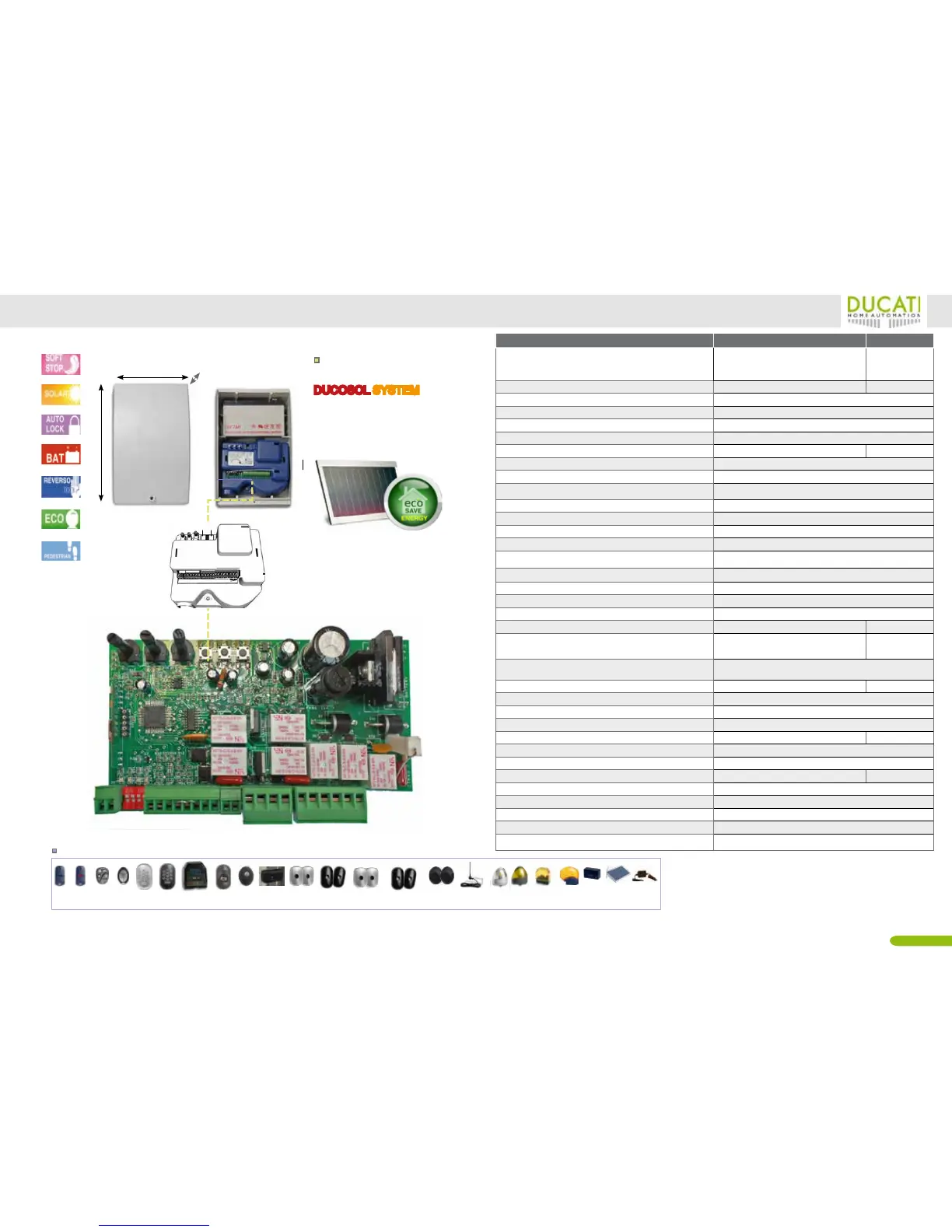

DUCATI Electronic board CTH48 DUCOSOL technology & SOFT STOP
Compatible accessories
Pult
6203R
Tasty
6700
6704
Pult
6204
Rixy
6040
6043
Pult
6203P
SW
6500
6504
Pult
6206
KEY
5000
KEY
5001
E-LOCK
1012+
booster
LASER
7012
LASER
100
STILO
6023
6025
FLASH
7712
FLASH
7512
HC
7500/12
7512
BAT
1012
KB
900KB
900
SOLAR
1010
1020
MPBAT
SW7012 LASER
7120*
SW
7120*
120 mm
180 mm
290 mm
TECHNNICAL DATA CTH48 CTH48/24
Power supply (on demand)
230V (110V) / 12V battery/ 12V solar
panel
230V (110V)
/ 24V battery/
24V solar panel
Solar module power supply √ 12V √ 24V
Use on 1 or 2 wings gate √
Protection fuse √
Transformer protection fuse √ 0,8AT (1,2AT)
Toroidal transformer’s Watt 105V
Output services 12V 24V
Power consumption in stand-by 0,007A
Radio receiver (channel) 2 channels
Remote control storage capacity 20
Radio transmission protocol DUCATI rolling code 433MHz
Radio receiver self learning √
On board Antenna √
External antenna input √
Automatic close function ( timerized) √ ( 1-100 sec)
Anti-pressure safety system √
Motor power adjustment √
Reverse movement on obstacle detection √
Electric limit switch input -
Courtesy light contact √
Output for elecktrolock (reqires an electrolock with
booster)
12V dc output 24V dc output
Elektrolock use while power by solar module/ battery √ with additional booster only
Safety beam/ Photocells input ( NC contact) √12V √ 24V
Full cycle START output (NO contact) √
Pedestrian cycle START output ( NO contact) √
Emergency STOP button (NC contact) √
Flashing light output 12V max 10W lamp 24V max 10W
Output to battery with on board charger √
Indication of battery charge status by blinking light √
solar panel input √ 12V √ 24V
LED indication of Power supply √
Slowdown ( soft stop) √
Gear anti-pressure system √
wings time lag adjustment √
Status indicator output (open, closed, moving) √
P1 P2
KONTROL 9048
Complete Large size control box with CTH48
DUCOSOL SYSTEM
Versatile, operates by 3 type of power sup-
ply without any additional modules required:
1) A.C. 110/230V 60/50Hz
2) by emergency battery
3) By solar panel
Low consumption technology
0,007A
stand-by consumption
