37

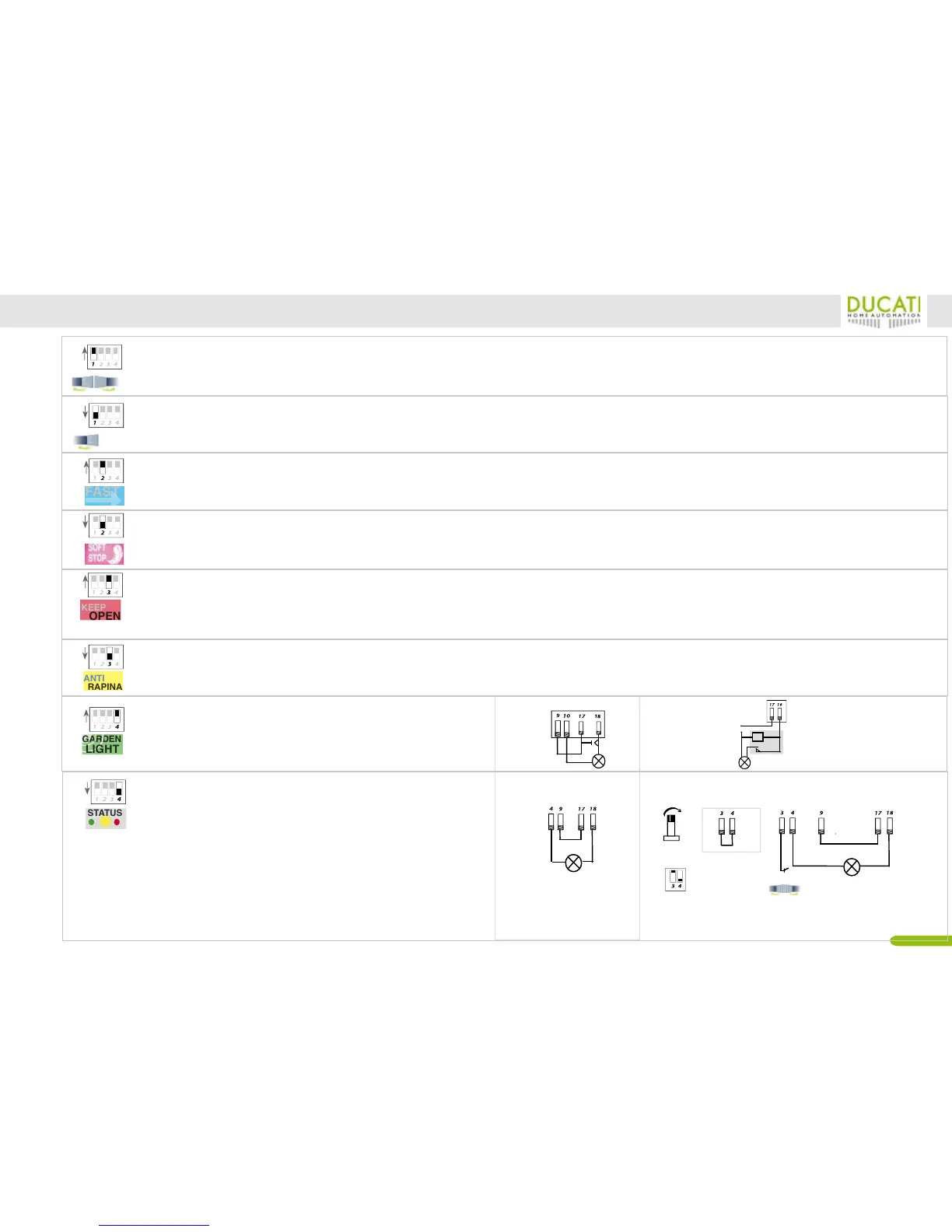

SWITCH 4 on ON : active courtesy light / garden light lighting time 20sec.
A1) NO dry contact becomes NC to activate a small 12V bulb max.10W
B1)a relay for any lighting system of higher power. 12V 10W max output terminals 17 -18
SWITCH 4 on OFF ***activate the remote indication of the gate status .
A2) by wiring a LED lamp for example, you can remotely monitor the gate status: open =
light on, slow flashing = opening, quick flashing = closing; off = gate closed.
Output 12V max 10W lamp to be connected to terminals 17 -18
B2) to get the remote gate status signal and an aditional command to keep the gate
open by 3 wires only follow this instructions:
( warning: this is possible only with automatic closure mode = potentiometer T1 turned
clockwise and switch n° 3 on ON position)
1-connect terminal 9 to terminal 17
2- connect 3 wires to terminals 3-4-18
3- By closing contact between terminal 3 & 4 you will open the gate ( connect a switch)
chiudendo il circuito tra 3 e 4 si produrrà l’apertura del cancello ( collegare un apposito
pulsante)
4- Buy holding the contact betweenterminals 3 & 4 closed the gate will keep open (
connect a braker)
5- *** connecting terminals 4 & 18 to a 12V max 10W lamp you will get the remote
indication of the gate status .
OFF
ON
B1) Garden Light
powered by
220/110V /110V
B2 ) ONLY 3 wires to get remote gate status signal
and a wired command to keep the gate open
AC
RELAY
K
A1)
courtesy
light 12V
max 10W
A2) remote gate status
signal
remote gate status
signal
12V max 10W lamp
switch
T1
Keep the
gate open
remote gate status signal
12V max 10W lamp
START
ON
OFF
SWITCH 1 on ON = use on single wing gate and connect the motor as M1
SWITCH 1 on OFF = use on double wing gate
SWITCH 2 on OFF
Activate SOFT STOP. The opener will start at high speed and then slow down the motion. During the high speed phase it will reverse the movement in case of obstacle detection. During the slow
speed phase it will stop in case of obstacle detection. The starting point of the slow speed phase can be adjusted by potentiometer T3; turn T3 clockwise to delay (postpone) the slow speed phase.
SWITCH 2 on ON
Deactivate SOFT STOP & Obstacle reversal system.The opener will work at high speed only and will stop if an obstacle is detected
SWITCH 3 on ON only if coombined with automatic closure ( potentiometer T1 must have been turned clockwise to activate the automatic closure function) will enable:
- any impulse/ command (by remote control or wired keyswitch) during the automatic closing operation, will re-open of the gate
- any impulse/ command (by remote control or wired keyswitch) during the timerized pause time( while gate is open), will increase the dwell time for a time equivalent to that programmed.
- maintaining closed the“START” NO contact (for example by connecting a braker), the gate will stay open any command
SWITCH 3 on OFF, only if coombined with automatic closure ( potentiometer T1 must have been turned clockwise to activate the automatic closure function) will enable activates the SEMI-
AUTOMATIC MODE ( or also called ANTI-THIEF MODE)
The Opener will accepts impulses (by remote control or wired keyswitch) during both opening and dwell pause phase, and produces the sequence: STOP-REVERSE OPERATION
( also called SEMI-AUTOMATIC MODE)
