P 1
6 Monster 696/696+ - M.Y. 2009 - edition 00
Electrical system

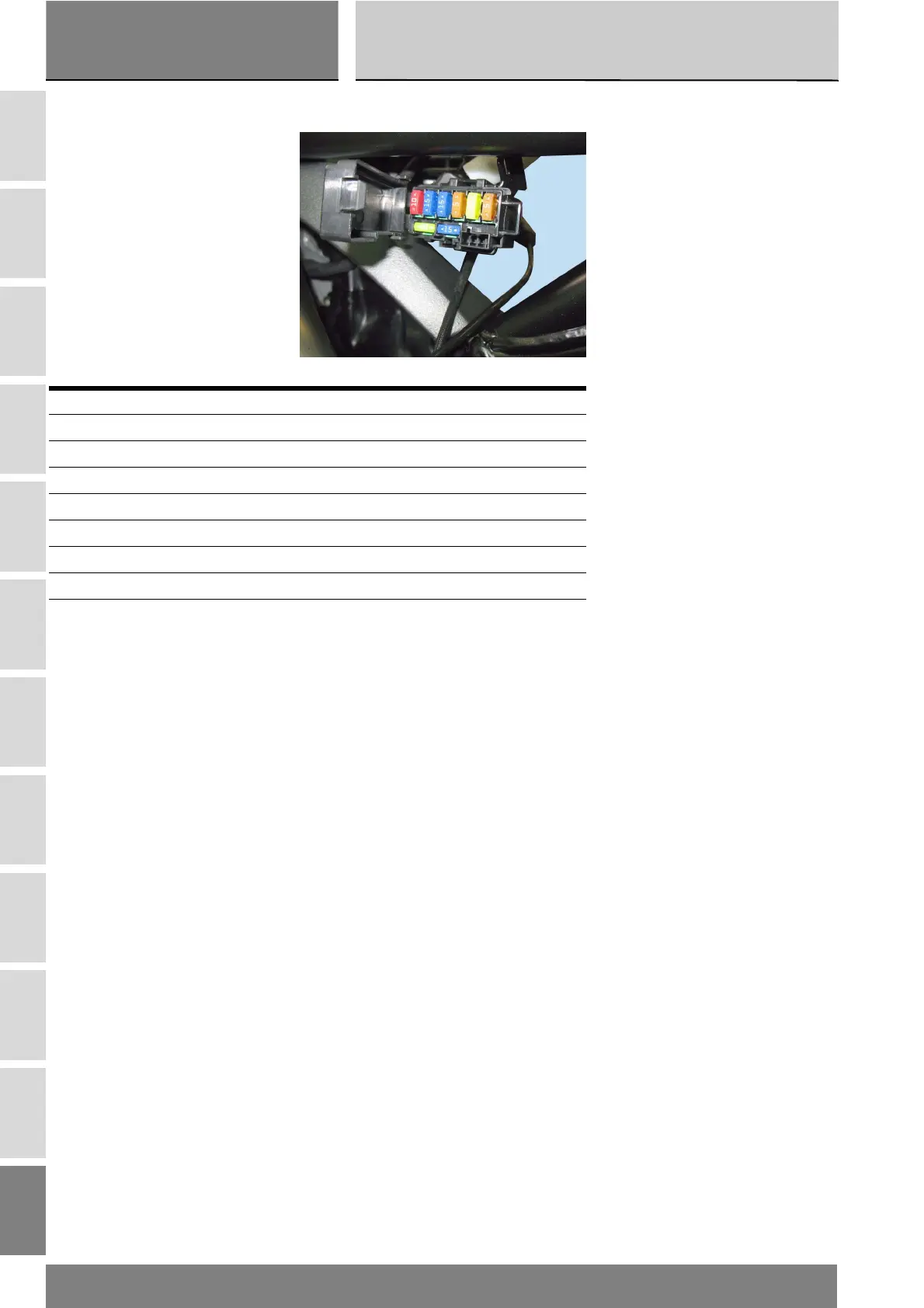

Key to fusebox
Position Item Rating
1Key ON 10A
2Side lights, high/low beam 15A
3Consumers 15A
4Instrument panel 5A
5Injection 20A
6ECU 5A
7Spare 20A
8 Spare 5 A
