Ducati Scrambler 1100 User Manual

Residual Range (RANGE)
This function displays the range according to the
remaining fuel in the tank.
Information is indicated as RANGE.
If there is any function fault, the instrument panel will
display three flashing dashes "- - -".
If the instrument panel is not receiving RANGE
information, a string of three steady dashes "- - -" is
displayed.

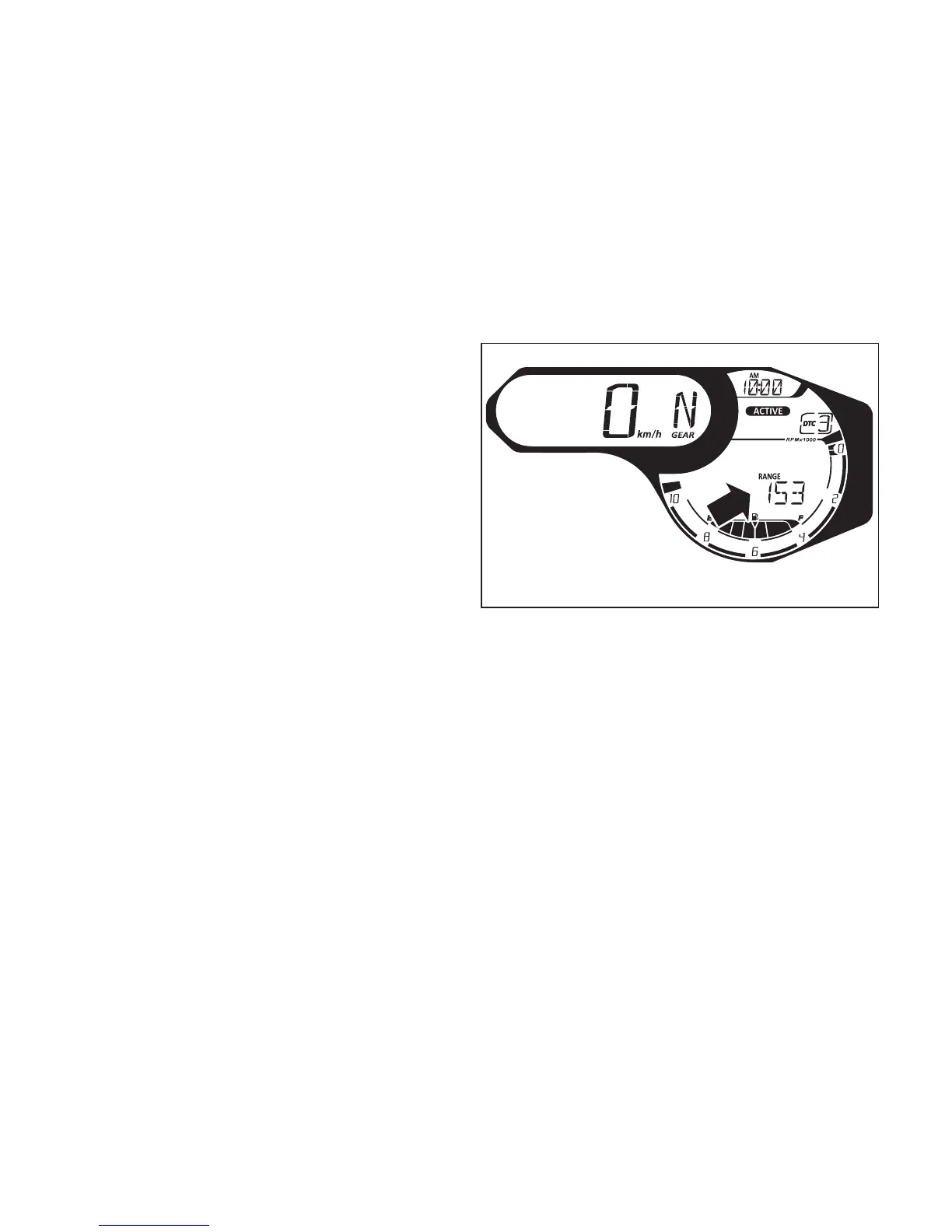

Fig. 26
60

Ducati Scrambler 1100 Specifications

General

Engine Type	L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement	1079 cc
Bore x Stroke	98 mm x 71.5 mm
Compression Ratio	11:1
Transmission	6-speed
Frame	Tubular steel Trellis frame
Rear Suspension	Kayaba monoshock, pre-load and rebound adjustable
Front Brake	2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
ABS	Bosch Cornering ABS
Seat Height	810 mm (31.9 in)
Power	86 hp (63 kW) @ 7, 500 rpm
Torque	65 lb-ft (88 Nm) @ 4, 750 rpm
Fuel System	Electronic fuel injection
Exhaust	Stainless steel muffler with aluminum covers
Front Suspension	45 mm upside-down fork
Rear Brake	245 mm disc, 1-piston floating caliper
Rear Wheel	10-spoke light alloy 5.50" x 17"
Front Tire	120/70 ZR18
Rear Tire	180/55 ZR17
Fuel Tank Capacity	15 L
Dry Weight	410 lb (186 kg)
