fig. 81
fig. 82
Fuses

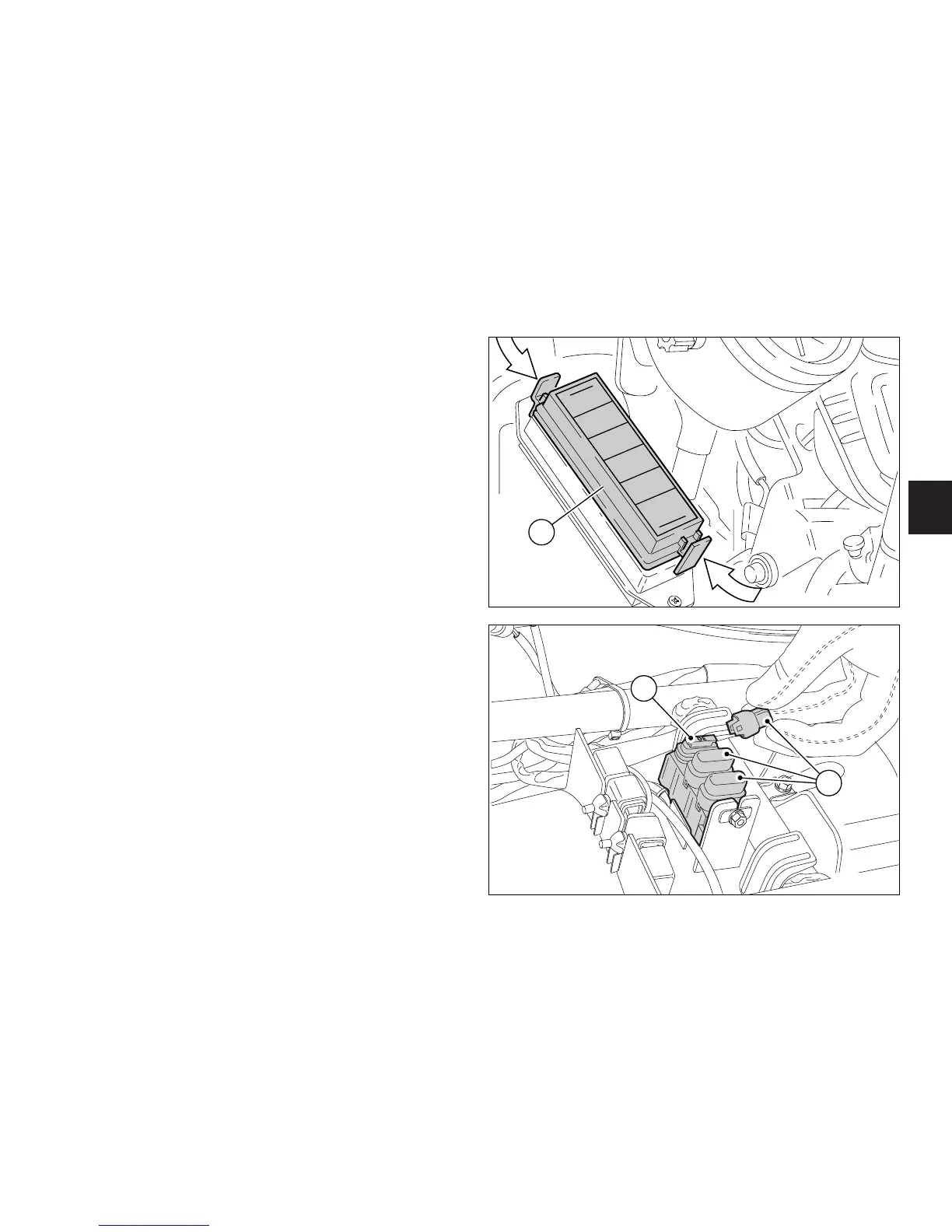

The main fuse box (fig. 81) is located on the frame left
side, behind the headlamp.
To access the fuse box, remove the left side guard of the
instrument panel (see page 50).
To expose the fuses, take off the box protective cover
(1). Mounting position and ampere capacity are marked
on box cover.
7 fuses are connected to the system. There is one spare
fuse.
Three fuses (2 fig. 82) located under the seat protect the
ABS. Remove the caps (3) to expose the fuses.
