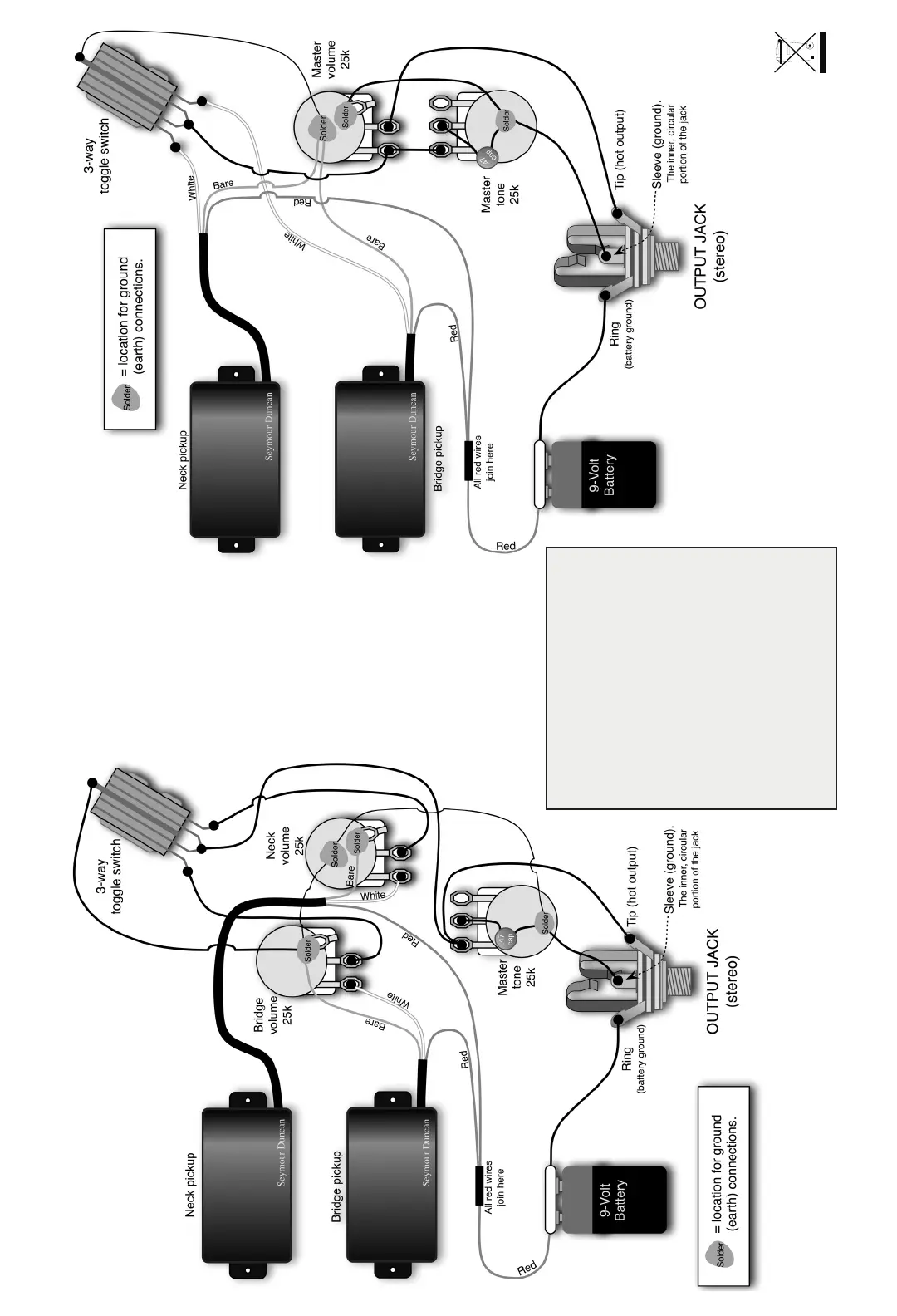

1 Volume, 1 Tone2 Volumes, 1 Tone
Visit seymourduncan.com for additional wiring diagrams.
We do not recommend
combining active and
passive pickups in the
same guitar. There are
enough differences in the
way they work, and in the
components they use,
that the result is usually
problematic.
Stereo output jacks are often wider
than most mono output jacks, and this
can cause them to come into contact
with the inside of your guitar’s control
cavity. If your guitar has been shielded
internally (with shielding paint or
copper tape), any contact between the
jack and the shielding can cause the
output of your guitar to greatly dimin-
ish, or short out completely. This will
not cause any harm to your pickups,
but it will cause the guitar to not work
properly. So check to make sure
that your stereo output jack is not
touching the inside of your guitar.
P/N 501020-130 Rev. A
