International Operation
Your amp is designed for professional usage. This may require changing the amp's electrical
operation when you tour in foreign countries. There are two ways for you to make your amp
compatible with foreign electrical sources:
1. Use an external transformer. These are available for rent or for sale in the countries you visit.
Just plug your U.S. model Convertible amp into the transformer. All voltage conversion and plug
changes are done through the transformer.

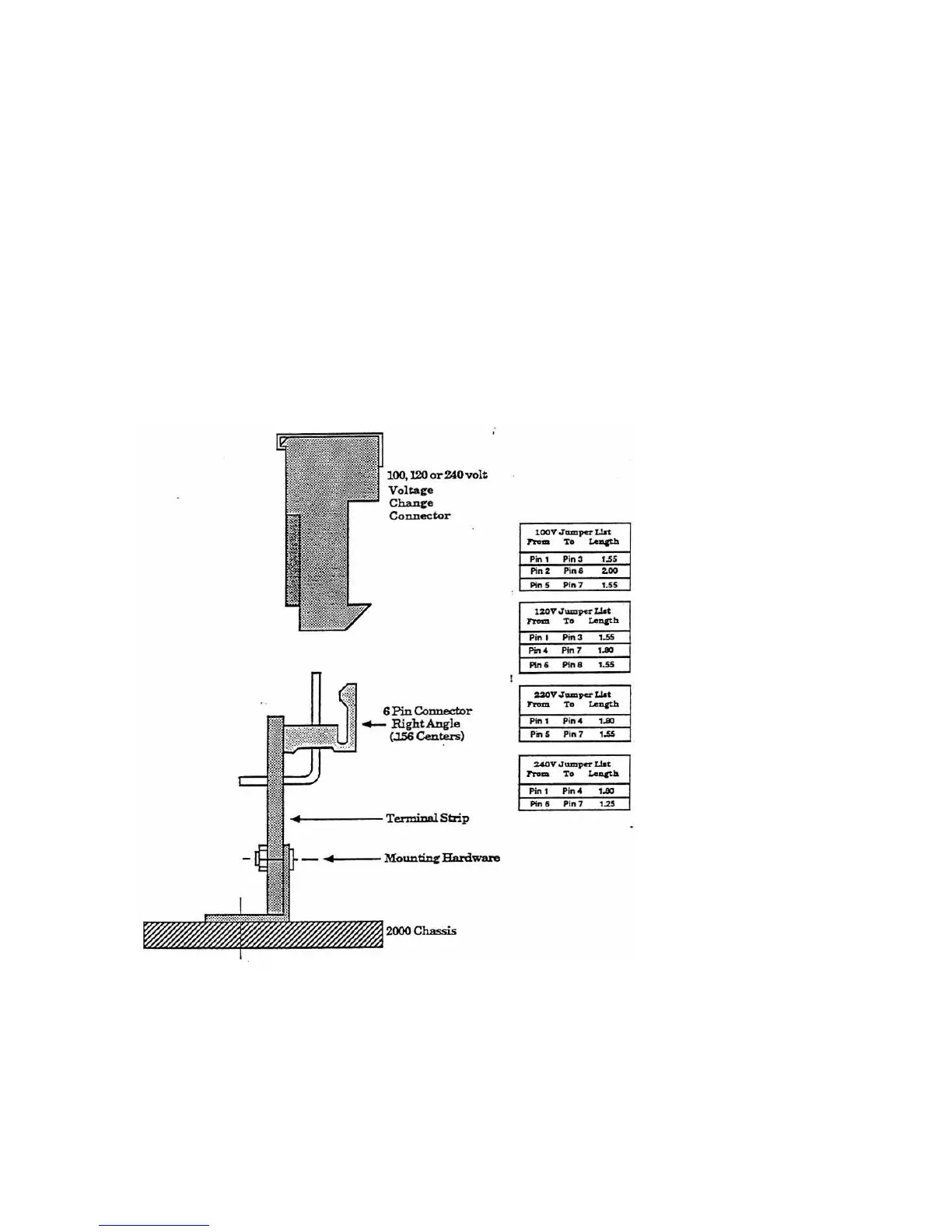

2. Use an adapter on the amp’s built-in transformer and change the A.C. plug.
You’ll have to remove the amp chassis from its cabinet and locate the terminal strip next to the
transformer. You’ll also need a molex style plug. (AMP part number 640426-8, eight position IDC
housing on .156 centers.) Wire the molex plug as follows:
• WARNING: ALWAYS MAKE SURF, THE CONNECTOR ATTACHES TO THE
TERMINAL STRIP AS SHOWN IN THE DRAWING ABOVE. FAILURE TO DO SO WILL
VOID THE WARRANTY AND CAUSE ELECTRICAL FAILURE.
If you have difficulty locating the AMP connector, call our Product Service Technician and he can
supply you with one.
