Components Referred to in the Pre-Calibration Setup and Calibration Process
The following pages describe how to set the machine up for calibration, the calibration process and
subsequent adjustments to obtain the desired seed and/or fertilizer output.
Terms and words used in those instructions are shown below:-

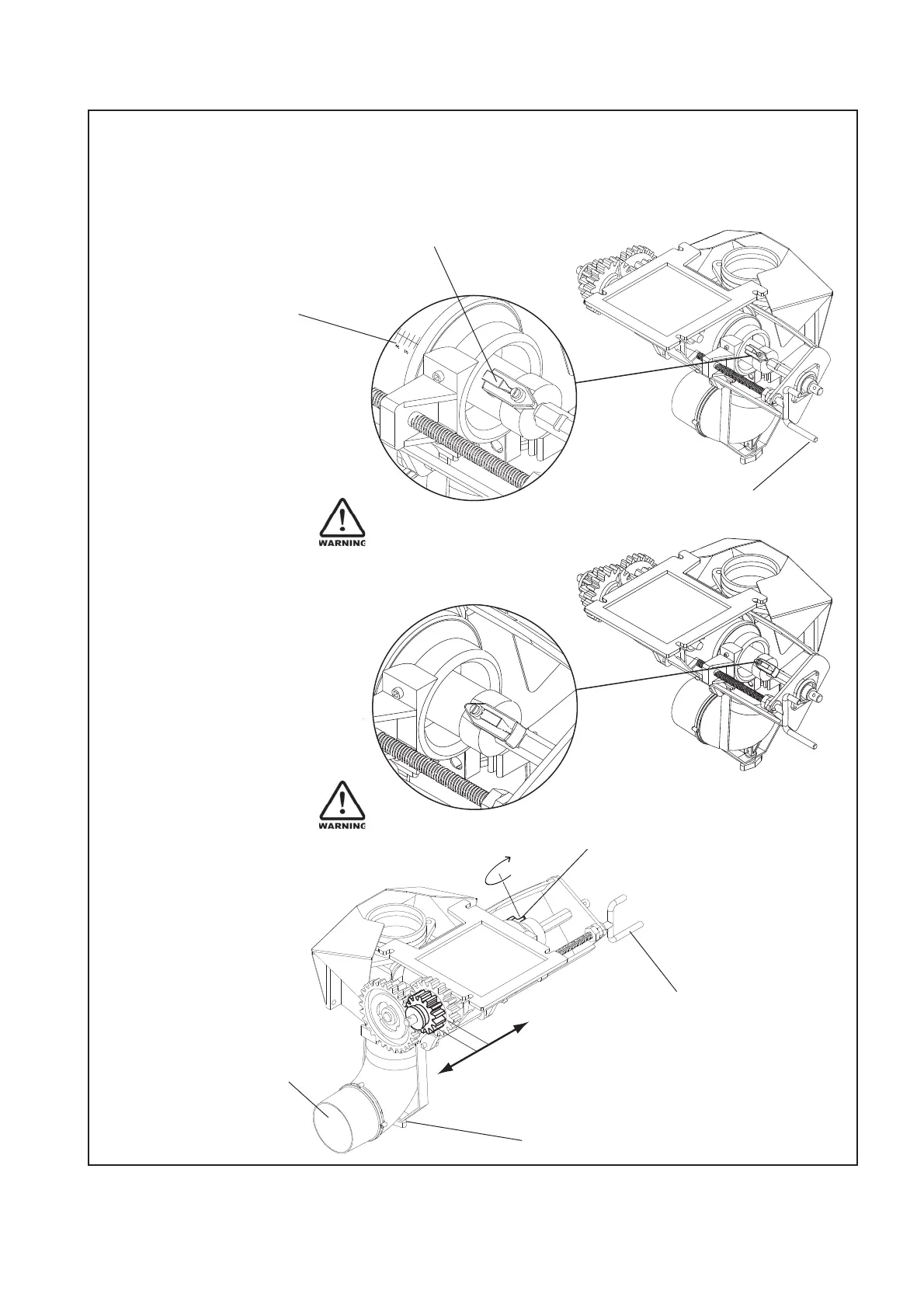

Adjustment Handle
Toggle
‘NORMAL’ POSITION
‘FINE’ POSITION
‘IDLER GEAR’
HIGH = PUSHED IN
LOW= PULLED OUT
Adjustment Handle
Normal/Fine Toggle
high (idler in)
low (idler out)
Wing Nut & Keeper
Elbow
Only switch from
normal to fine seed
if the seed hopper is
empty
Do not open the
setting above ‘25’
with the toggle set to
‘fine’ as the adjuster
will break.
Metering Setting
Scale
