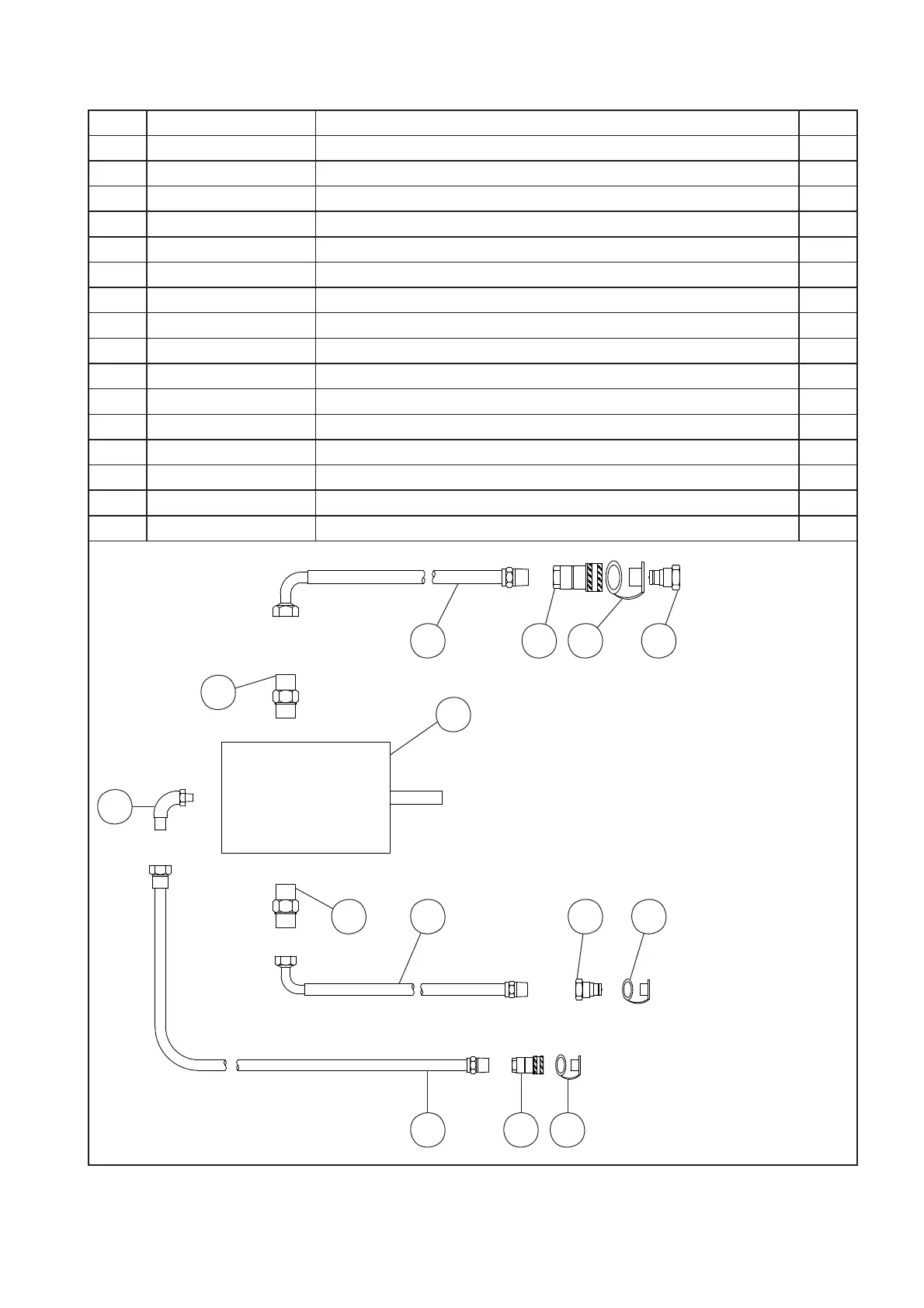

‘Enviro DD35’ Fan Hydraulics
ITEM PART No. DESCRIPTION QTY
- 44060k FAN MOTOR HOSE KIT contains items 1 to 13:-
1 44072 Hydraulic Hose (4.0m) 1
2 44073 Hydraulic Hose (4.2m) 1
3 44074 Hydraulic Hose (4.0m) 1
4 44075 7/8” UN’O x 1/2” BSPPM Nipple 1
5 44142 7/8” UN’O’x1-1/16”JIC Nipple 1
6 44078 9/16”JICF x 1/4”BSPM 90° 1
7 44080 3/4” BSP Female Q.R. Coupling 1
8 44081 3/4” BSP Male Q.R. Coupling 1
9 43147 1/2” BSP Male Q.R Coupling 1
10 43617 1/2” Female Dust Cover 1
11 44128 3/4” Male Dust Cover 1
12 43148 1/2”BSP Female Q.R.Coupling 1
13 43618 1/2” Male Probe Dust Cover 1
14 44019 Galtech 11cc Hydraulic Motor 1
HIGH PRESSURE
MOTOR FEED
(1/2” HOSE)
ZERO PRESSURE
CASE DRAIN
(3/8” HOSE)
5
2 7
11
8
4 1
10
9
LOW PRESSURE
MOTOR RETURN
(3/4” HOSE)
14
3
12 13
6
