Dunkirk PVSB-4D - Page 15

15
ELECTRICAL WIRING

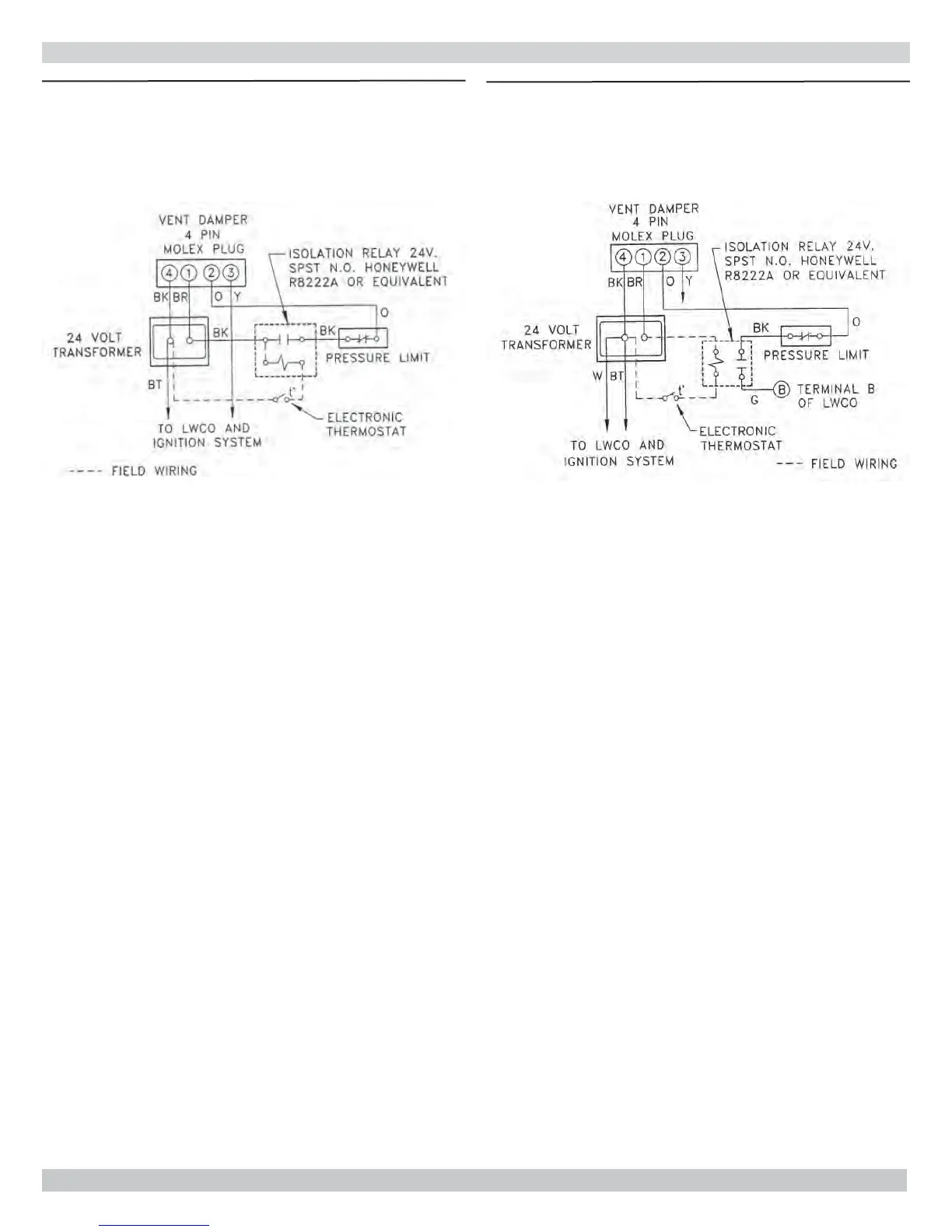

Figure 10A - Isolation Relay Wiring For Steam
Boilers With Float Type Low Water Cut Off And Using
An Electronic Thermostat
Figure 10B - Isolation Relay Wiring For Steam
Boilers With Probe Type Low Water Cut Off And
Using An Electronic Thermostat
