Dunkirk Q90-50 - Page 31

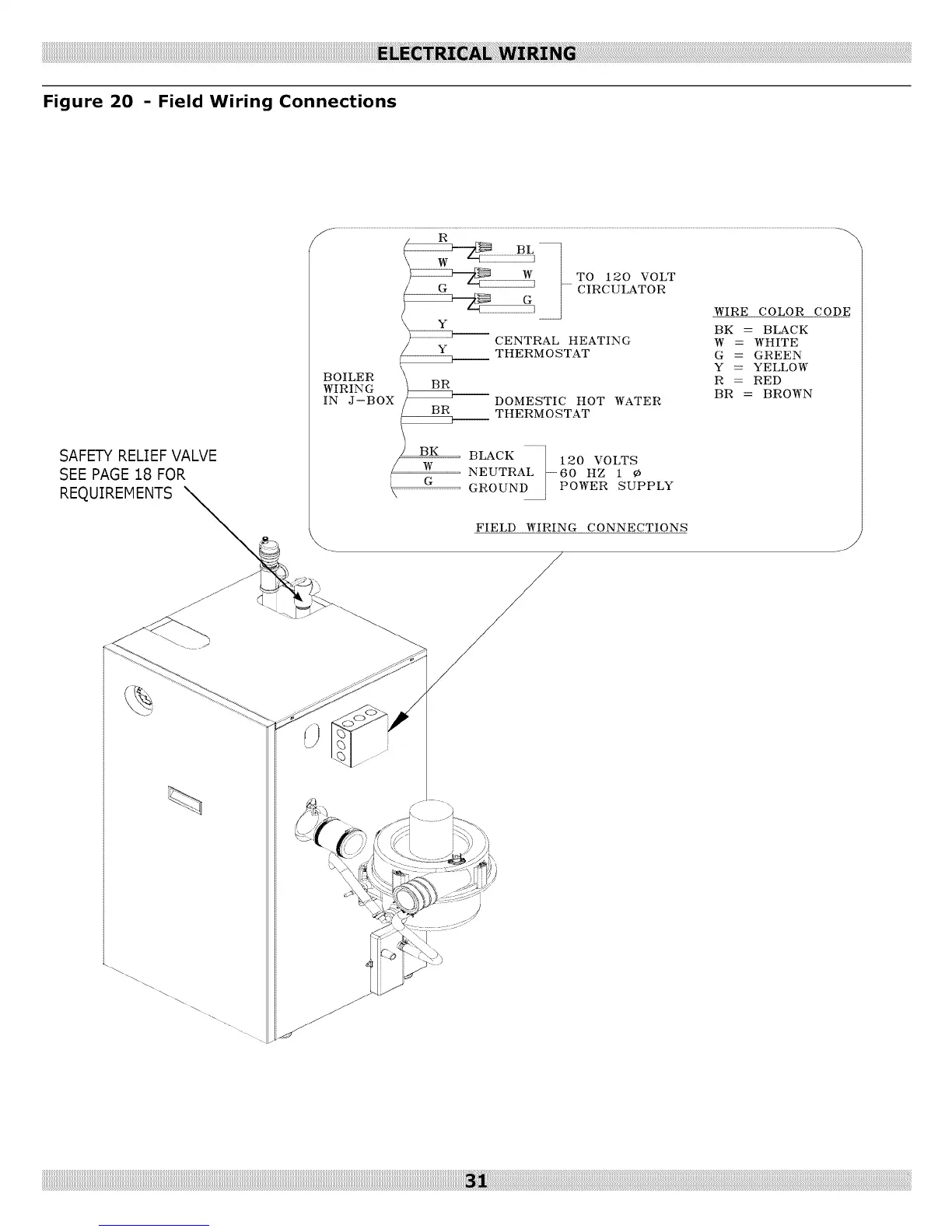

Figure 20 - Field Wiring Connections
SAFETY RELIEF VALVE
SEE PAGE 18 FOR
REQUIREMENTS
TO 120 VOLT
CIRCULATOR
CENTRAL HEATING
THERMOSTAT
BOILER
WIRING BR
IN J-BOX DOMESTIC HOT WATER
__ THERMOSTAT
B K BLACK 112o VOLTS
...........W NEUTRAL _-60 HZ 1
G GROUND1 POWER SUPPLY
WIRE COLOR CODE
BK = BLACK
W = WHITE
G = GREEN
Y ..... YELLOW
R = RED
BR = BROWN
FIELD WIRING CONNECTIONS
%
