Assembly Instructions

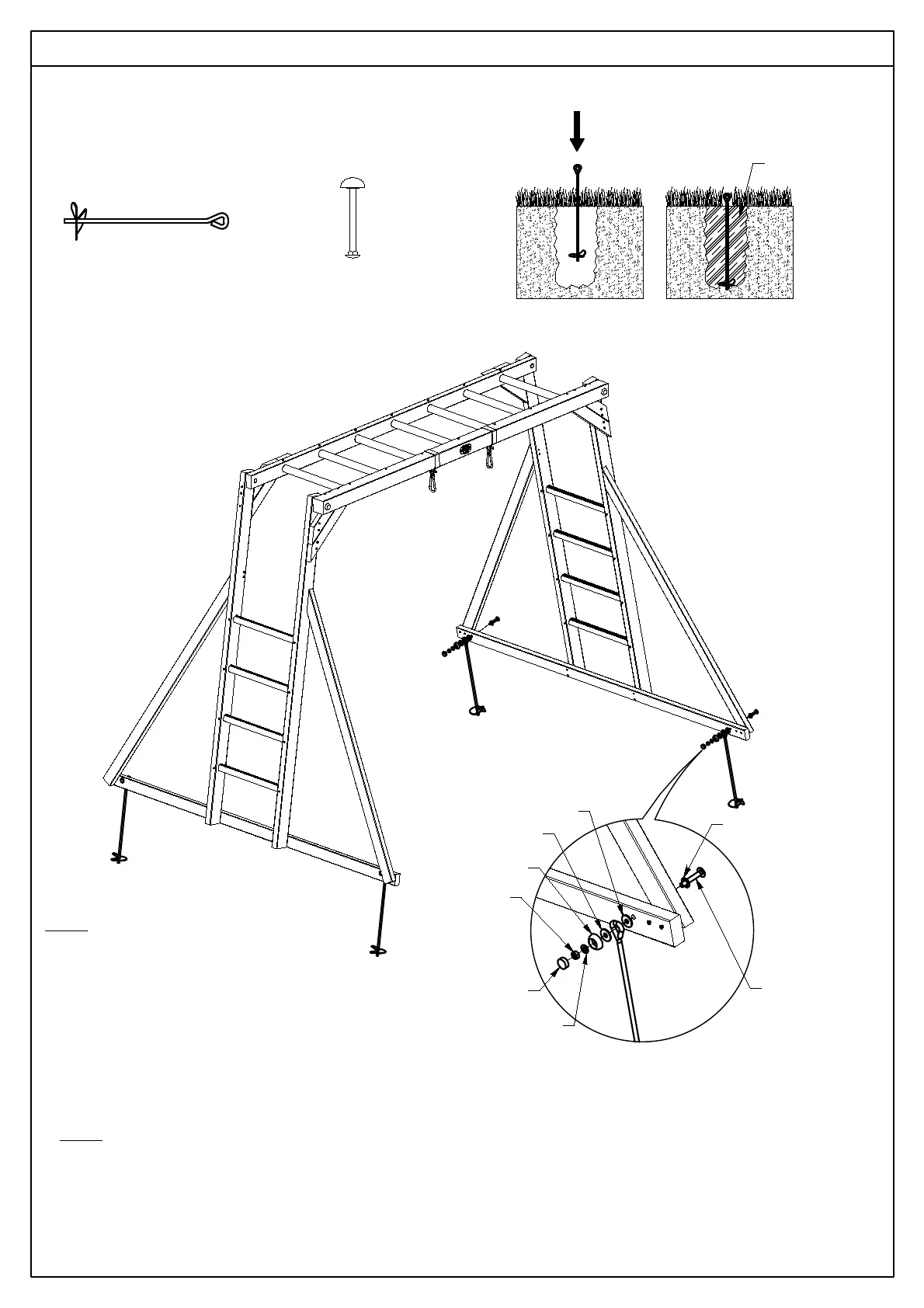

STEP - ATTACHING GROUND ANCHORS
4
Page 13
Required Components
BOLTS
4x 65mm
GROUND ANCHOR
1X PER ATTACHMENT POINT
1
Fill with Compacted Soil or
Concrete if necessary.
Note:
• A hole will need to be dug for each anchor (for locations of ground anchors see above diagram). The disc end of
the ground anchor needs to be placed in the dug hole.
• When the anchors are firmly attached to the climbing frame, fill the holes with compacted soil. If you find that the
soil does not hold the anchors in place sufficiently when the tower is in use, concrete will need to be used to
secure them.
M10x65mm Square Shoulder
Coach Bolt
Claw Washer
M10x30mm Washer
M10x30mm Washer
Green 10mm Cap (Base)
Green 10mm Cap (Top)
M10x20mm Washer
M10 Nut
Note:
• Fit Ground Anchors to the corners of
the Play System as per drawing.
• Secure using bolt assembly as shown.
2
