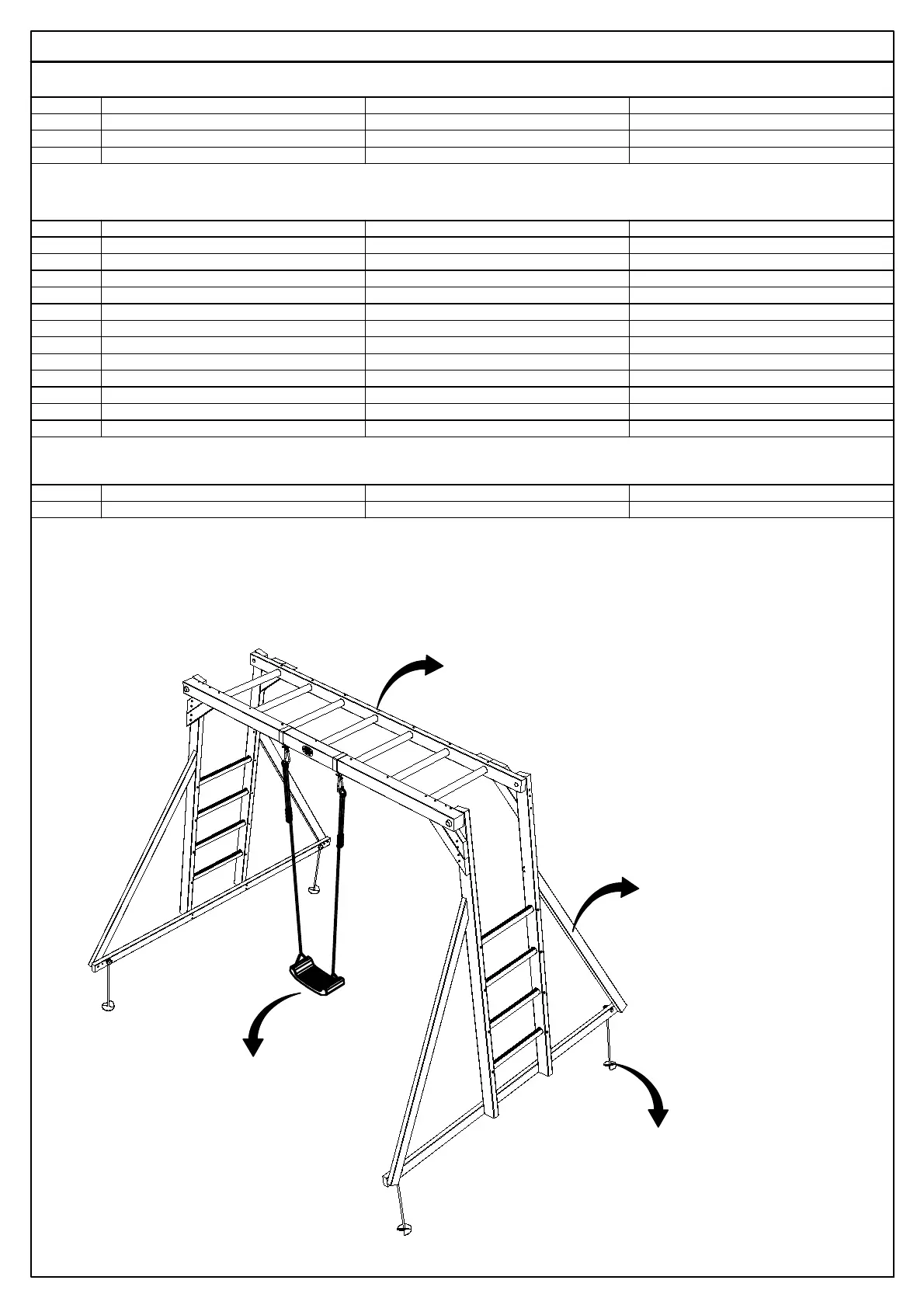

Dunster House Monkey bars - Total Parts List; Screws; Bolts; Accessories

Default Icon
16 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
CHECKDESCRIPTIONPART NUMBERQTY
50mm Screws50mm Screws94
70mm Screws70mm Screws12
120mm Screws120mm Screws12
CHECKDESCRIPTIONPART NUMBERQTY
M10x65mm Cup Head Square Shoulder BoltsCoach Bolt M10×65 GOST 7802-65
4
M10x100mm Cup Head Square Shoulder BoltsCoach Bolt M10×100 GOST 7802-1002
M10x140mm Cup Head Square Shoulder BoltsCoach Bolt M10×140 GOST 7802-1402
Ground AnchorGround Anchor
4
Metric Plain WasherM5x10mm Washer2
Green Cap M10 (Base)
M10 Green Cap Base8
Green Cap M10 (Top)M10 Green Cap Top8
Plain Washer M10 x 30mmM10 Oversize Washer
12
Plain Washer M10 x 20mmM10 Plain Washer8
M10 Nylon Locking Hexagon NutsNut M108
Swing BracketsSwing Brackets2
Claw WasherTorque Washer8
CHECKDESCRIPTIONPART NUMBERQTY
Swing SetMSLA.051
Page 8
Total Parts List
SCREWS
BOLTS
ACCESSORIES
HORIZONTAL LADDER
See Step 1
Page 9 - Standard
Page 10 - 1 Swing
VERTICAL LADDER (2x)
See Step 2
GROUND ANCHORS
See Step 4
ACCESSORIES
See Step 5
