Dunster House Monkey bars - Assembly: Horizontal Ladder - Standard

Assembly Instructions

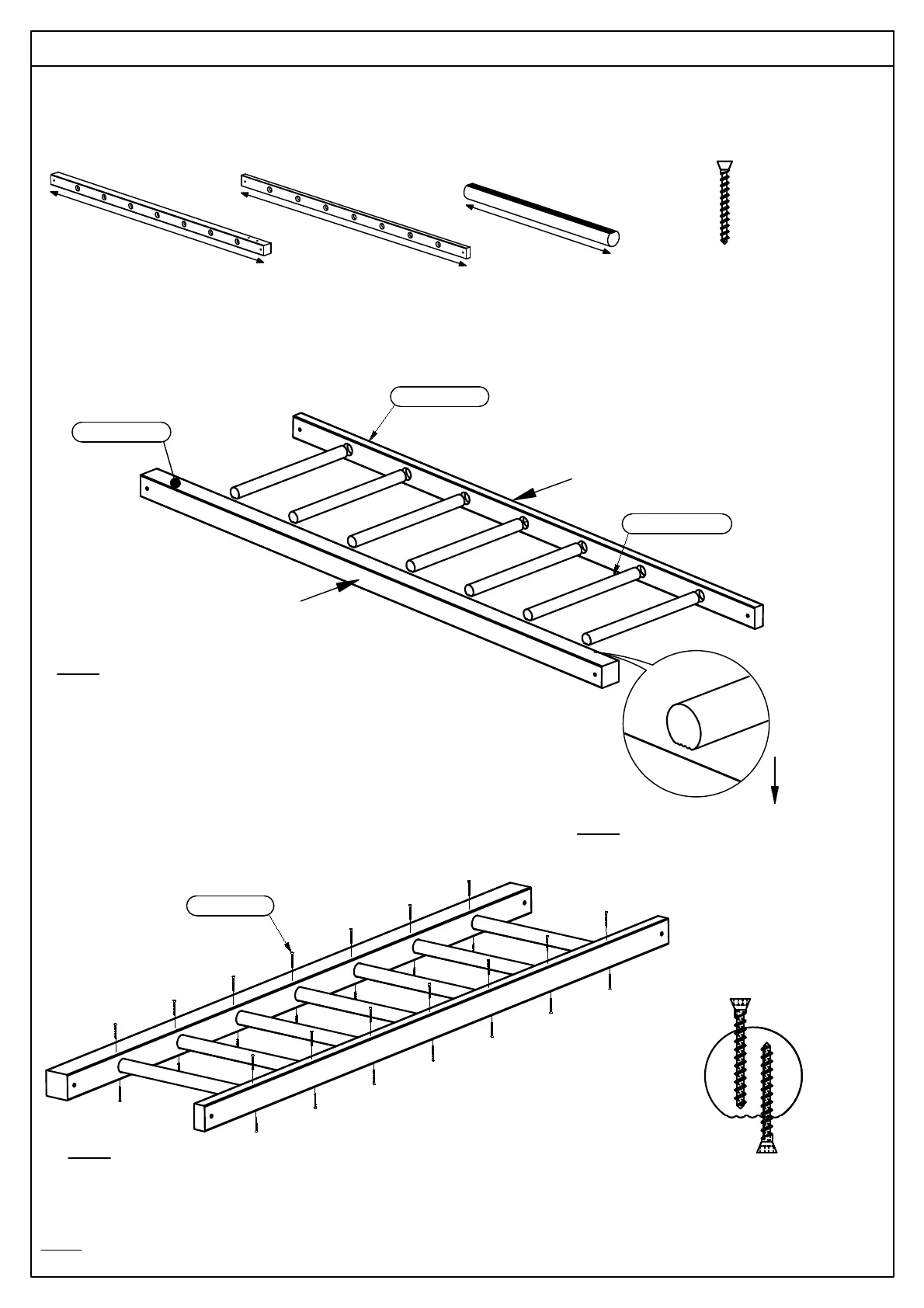

STEP - HORIZONTAL LADDER - MONKEY BARS - STANDARD
1
Page 9
Required Components
C40651B - 86x86x2400 (1x)
2
4
0
0
C40558A - 86x43x2400 (1x)
2
4
0
0
C4038A - 44x44x550 (7x)
5
5
0
SCREWS
28x 50mm
of
1
Horizontal Ladder - Without Swings
C4038A - 44x44x550 (7x)
C40558A - 86x43x2400
C40651B - 86x86x2400
2
1
Push Together
Note:
Pre-drill all screw holes with a 3mm drill bit.
Direction of
grooves
on rungs
Note:
• When pre-drilling, do not drill through the rungs.
• Secure with screws as shown.
Note:
• Lay components in position on the ground before fixing.
Note:
• Please ensure that rungs are placed
with grooves in the correct direction.
50mm Screws (28x)
Section view showing orientation of
rung in monkey bar ladder.
