3. MODELS
NOTE
» APPLICABLE TO ALL POWER UNITS: in order to avoid overheating, we
recommend 12in / 30cm clearance all around the power unit�
4. INSTALLATION
POWER UNIT
Fig. 1 Mounting bracket is the same for all units
The power unit must be installed in a ventilated area, easily accessible and away from any heat
source. It should also be close to an accessible electrical outlet.
1� Determine the location of the power unit on the wall; we recommend that the power unit
be fastened at 60” / 1,5m from the ground in order for the dust canister to be readily
accessible; allow 12” / 30cm clearance on all sides of the power unit. When possible, it is
advisable to install the power unit on a concrete wall in order to minimize the vibrations;
2� Gypsum wall:
• Prepare the wall by installing a plywood mounting board (not provided) 16” / 40cm high
by 3/4” / 2cm thick and wide enough to be screwed to at least 2 studs;
• Fasten the mounting bracket to the mounting board with the provided screws;
3� Concrete wall:
• Drill the holes with a concrete drill bit;
• Insert the provided wall anchors into the drilled holes;
• install the mounting bracket with the provided screws into the anchors;
NOTE
» You can still install a plywood mounting (16” / 40cm x 10” / 25cm x
3/4” / 2cm) board if desired;
» You can use provided screws to  x mounting board on the wall, but
cannot use them for installing the mounting bracket on the mounting
board because of their length� You need to use shorter screws (not
provided)�
IMPORTANT
Always use the right type of screws for the surface you are working with (wood,
concrete, metal…)
4� Insert the power unit bracket into the mounting bracket (Fig. 1).
5� Insert the PVC pipe into the air intake coupling; DO NOT GLUE!

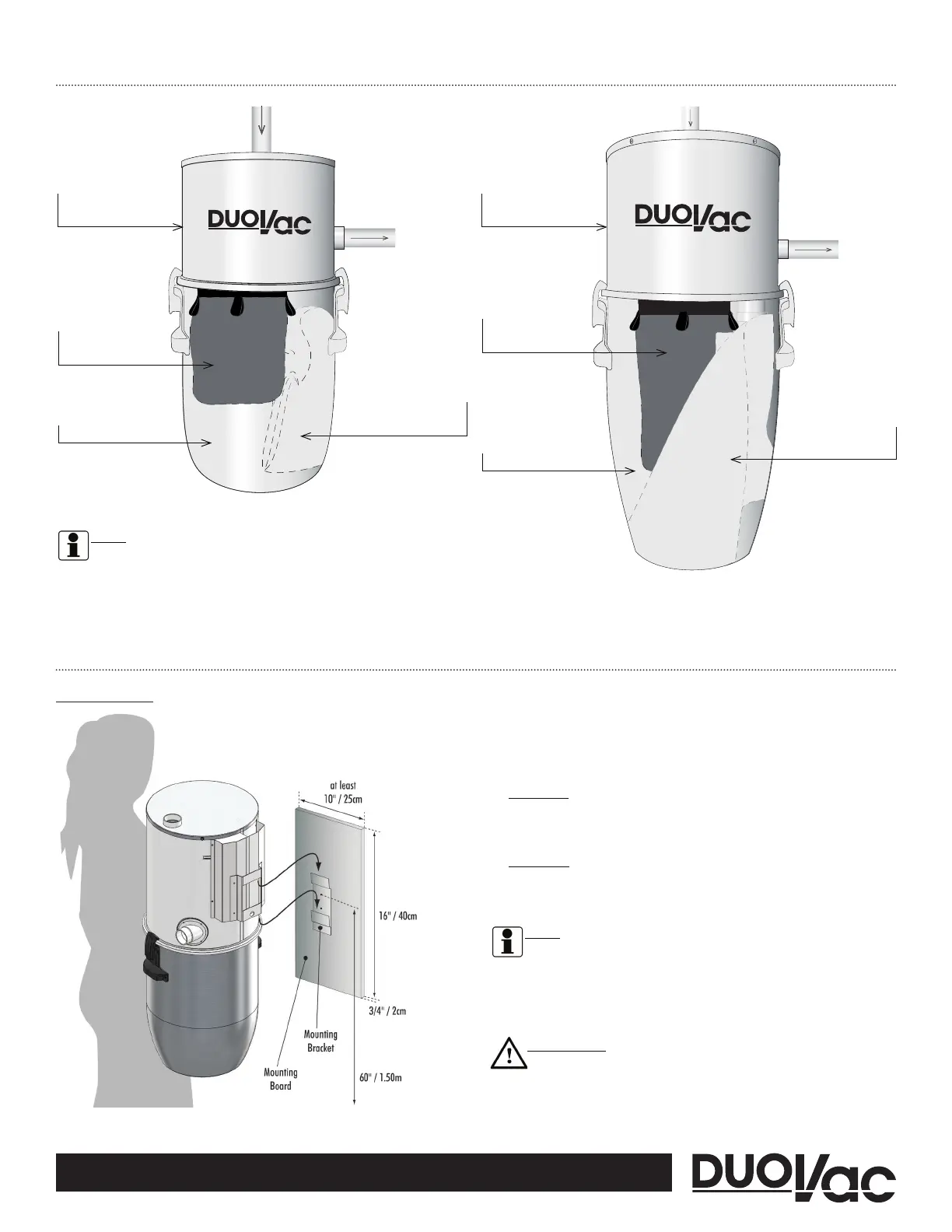

Machine washable
permanent  lter
Aluminum canister
Disposable  ltration
bag (optional)
Internal control
module
Air intake
Air outlet
Machine washable
permanent  lter
Aluminum canister
Disposable  ltration
bag (optional)
Internal control
module
Air intake
Air outlet
