• Position change on the position disc of nipping station

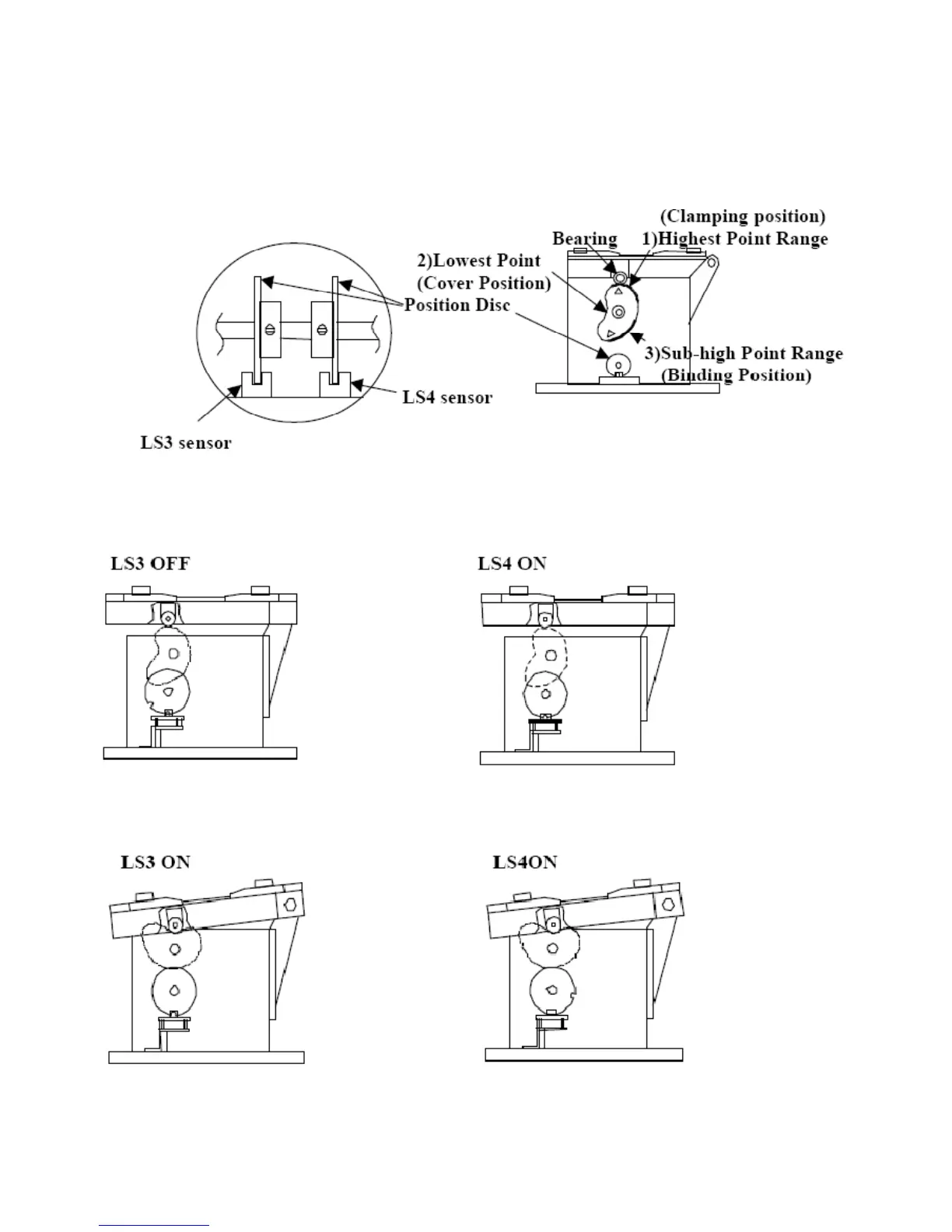

There are three positions of the nipping station for executing the clamping, the cover, and the nipping
processes. The LED of the sensor (LS3 or LS4) goes on when the notch of position disc travels through the
trench of the sensor as shown below:
1.) Clamping: when the bearing is at the highest point
2.) Cover: when the bearing is at the lowest point
