Duplo DP-A100 II User Manual

7

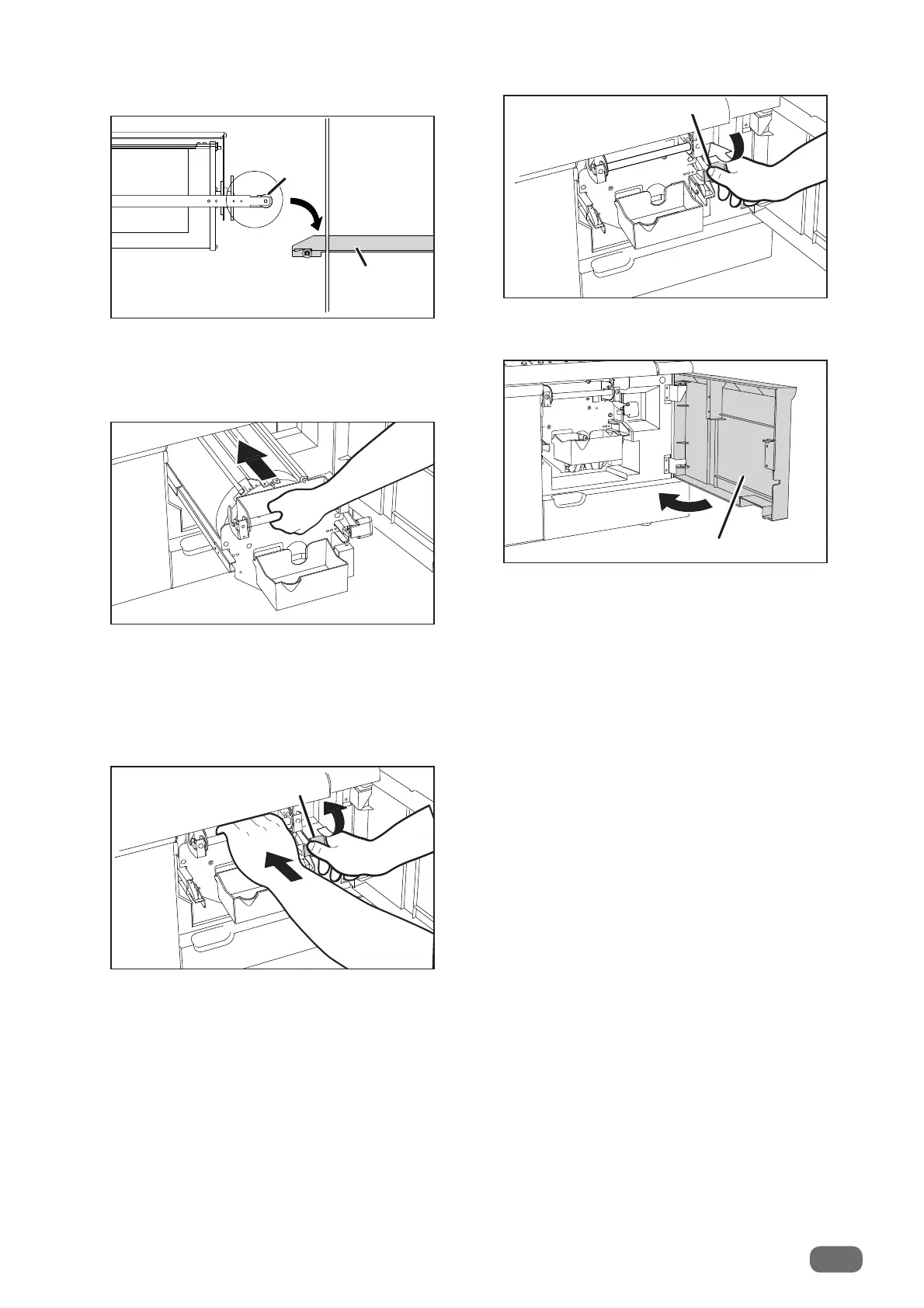

6. Hold the
drum unit
level and place the
drum
guide roller
onto the
rail
in the machine.
7. Release the
stay
at the upper part of the
drum and push the
drum unit
in about 10
cm while lifting up the front end slightly.
8. Hold the
drum unit
level and push it in
gently until it comes to a stop.
9. Lift the
lever
toward you while pushing the
drum in.
10. Lower the lever until it comes to a stop.
11. Close the front cover.
Lever
Lever
Front cover
Drum guide
roller
Rail
