USING THE ACCESSORIES
CONNECTOR
The connector is used to attach the triangular tool
or the rectangular tool to the extension tubes
or the steam hose.

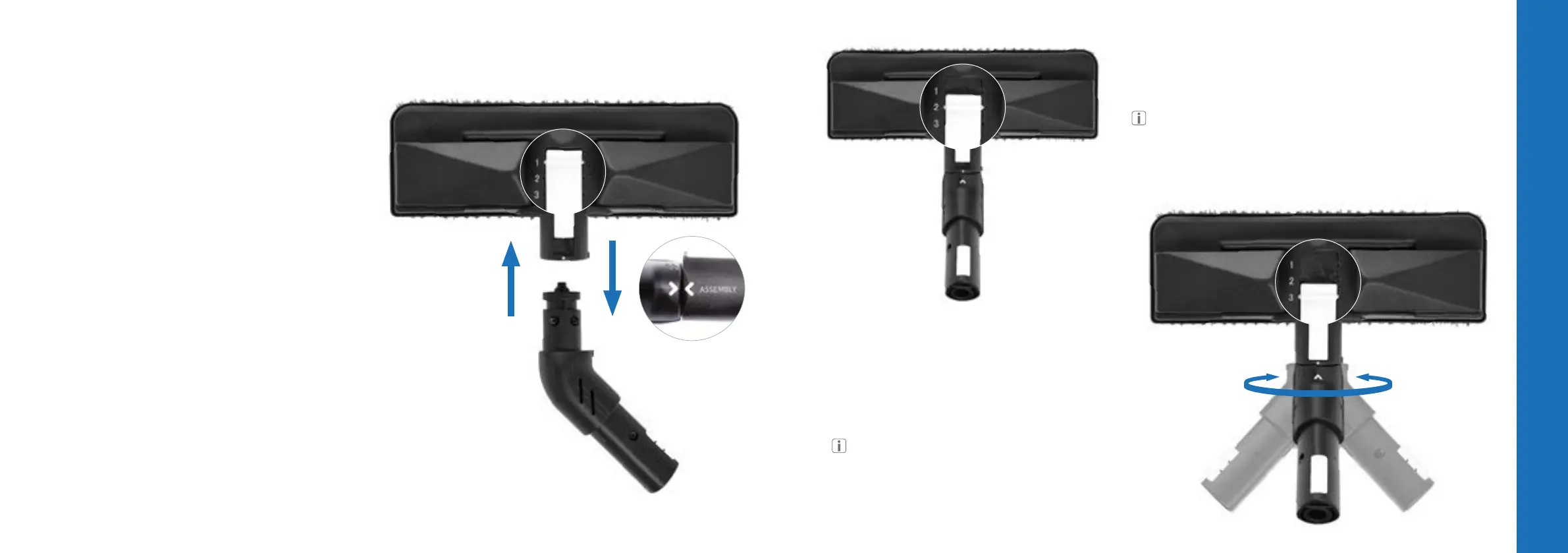

POSITION 1 - ASSEMBLY
Installing the connector
• Slide the white lever to the first position (Assembly).
• Insert the connector sideways, aligning the two white arrows.
• Rotate the connector to align the arrow with the white dot on the tool.
Removing the connector
• Align the white dot with the arrow on the connector.
• Slide the white lever to the first position (Assembly).
• Rotate the connector to align the two white arrows.
• Pull out the connector.
POSITION 2 - LOCKED
Slide the white lever to the second position (Locked) to prevent the tool
from rotating.
Make sure the arrow on the connector and the dot on the tool
are aligned before sliding the white lever.
POSITION 3 - ROTATION
Slide the white lever to the third position (Rotation)
to allow the tool to rotate.
Make sure the arrow on the connector and the dot on the tool
are aligned before sliding the white lever.
