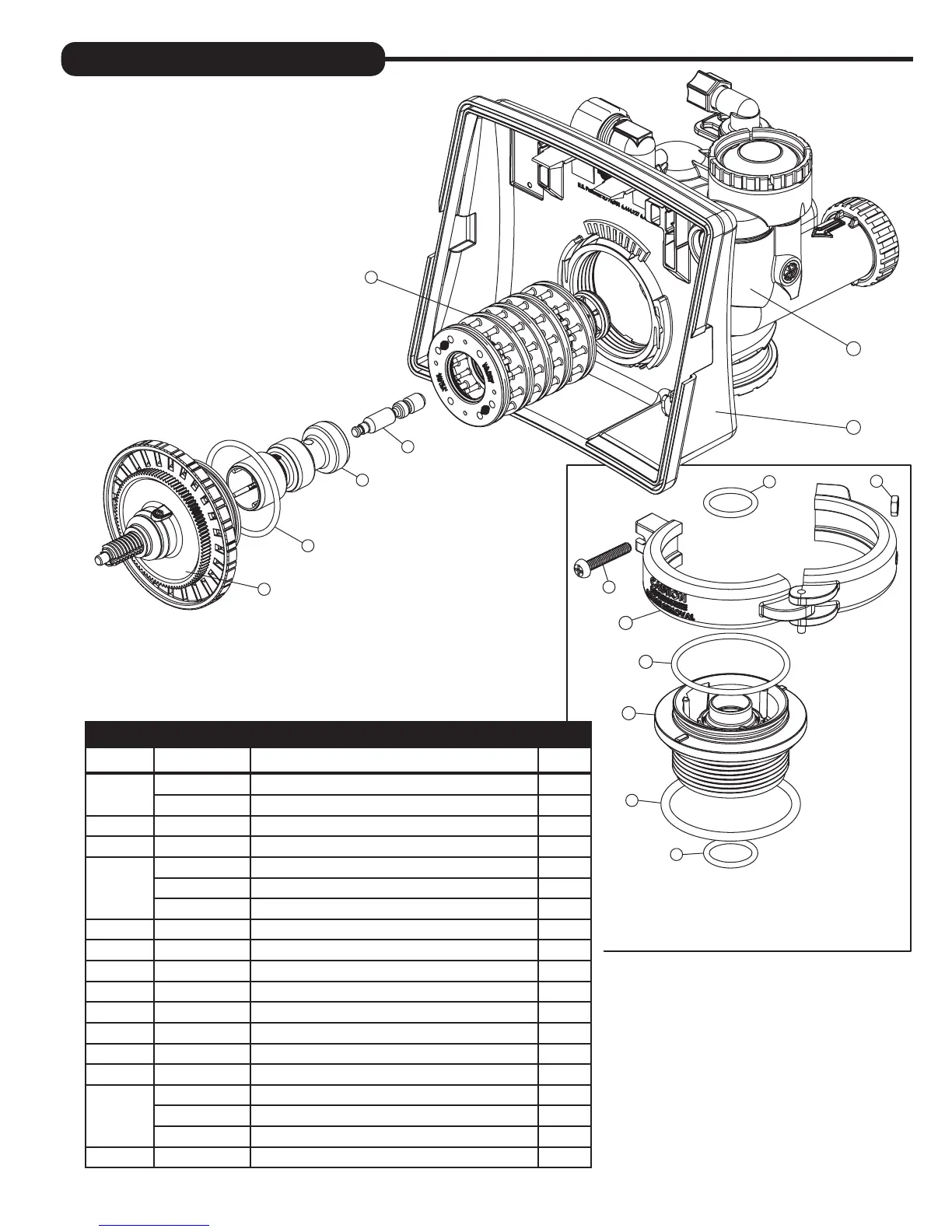

DuPure Impression Plus Series - Piston Assembly

6
8
10
11
7
9
7
12
4
2
3
5
1
13
14
NOTE: For Impression Plus
®
Models only. Not
available on 1¼ " valve.
15
REPLACEMENT PARTS:
PISTON ASSEMBLY
Item No. Part No. Description Qty.
1
CV3005 1" spacer stack assembly 1
CV3430 1.25" spacer stack assembly 1
2 CV3004 Drive cap assembly 1
3 CV3135 O-ring 228 1
4
CV3011 1" piston assembly downflow 1
CV3011-01 1" piston assembly upflow 1
CV3407 1.25" piston assembly downflow 1
5 CV3174 Regenerant piston 1
6 CV3180 O-ring 337 1
7 CV3105 O-ring 215 1
8 CV3556 Screw, 1/4- 20x1-1/2 18-8SS 1
9 CCI-00318337 Nut, 1/4 -20 HEX 18-8SS 1
10 CV3016 QC2 clamp assembly (includes screw & nut) 1
11 CV3452 O-ring 230 1
12 CV3015 WS1 QC2 Tank adapter assembly (includes O-rings) 1
13
CV3001 1" body assembly downflow 1
CV3001UP 1" body assembly upflow 1
CV3020 1.25" body assembly downflow 1
14 CV3541 Drive backplate 1
