Durafly Das Ugly Stik - Assembly Instructions

3

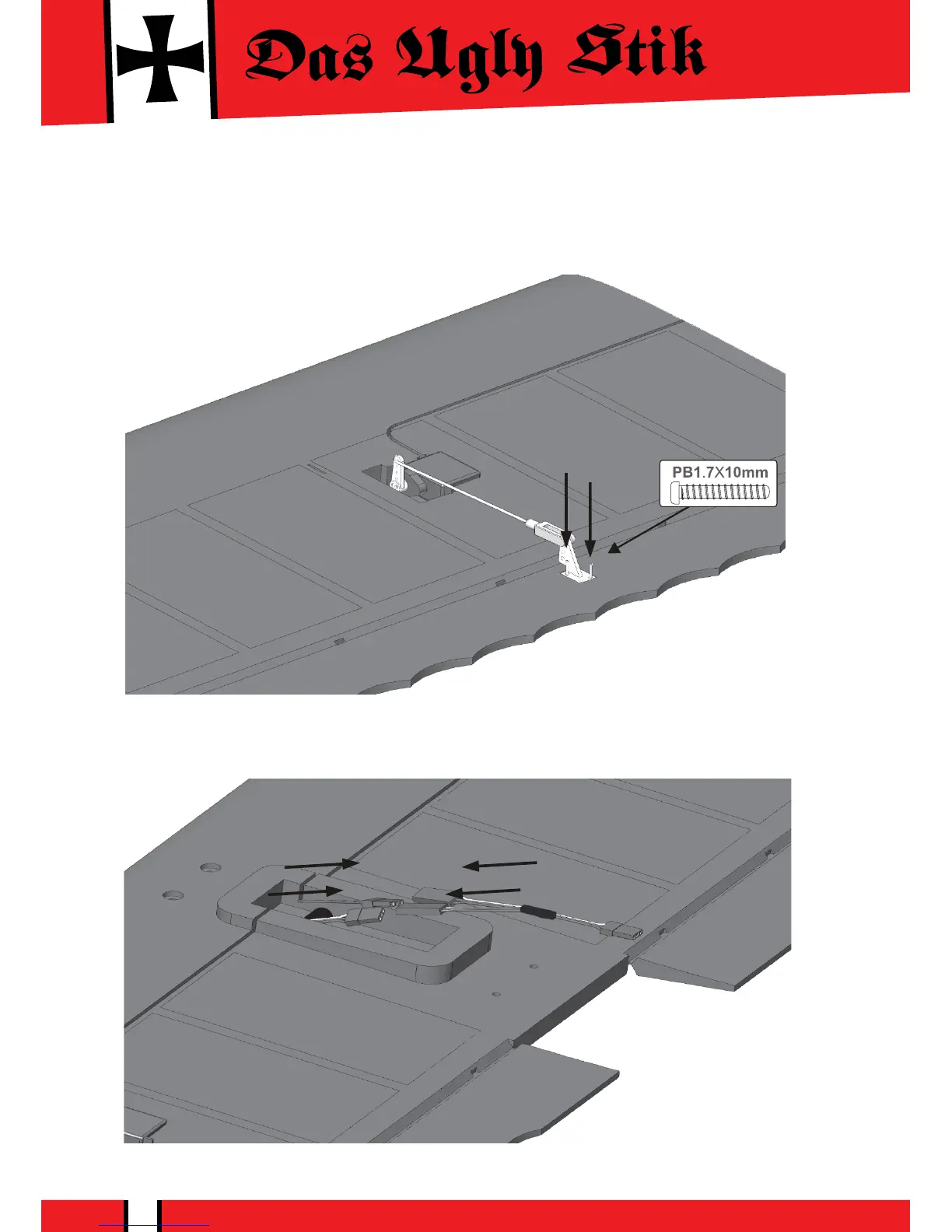

1. Locate the bag marked ‘Aileron’ and install aileron control horns and rods for
each side of the wing as shown. Ensure the servo horn is at 90 degrees to the wing
when installing the control rod.
ASSEMBLY:
2. Now connect the supplied Y-lead to the aileron servos and set the wing aside for later.
