4
FUSELAGE / TAIL ASSEMBLY

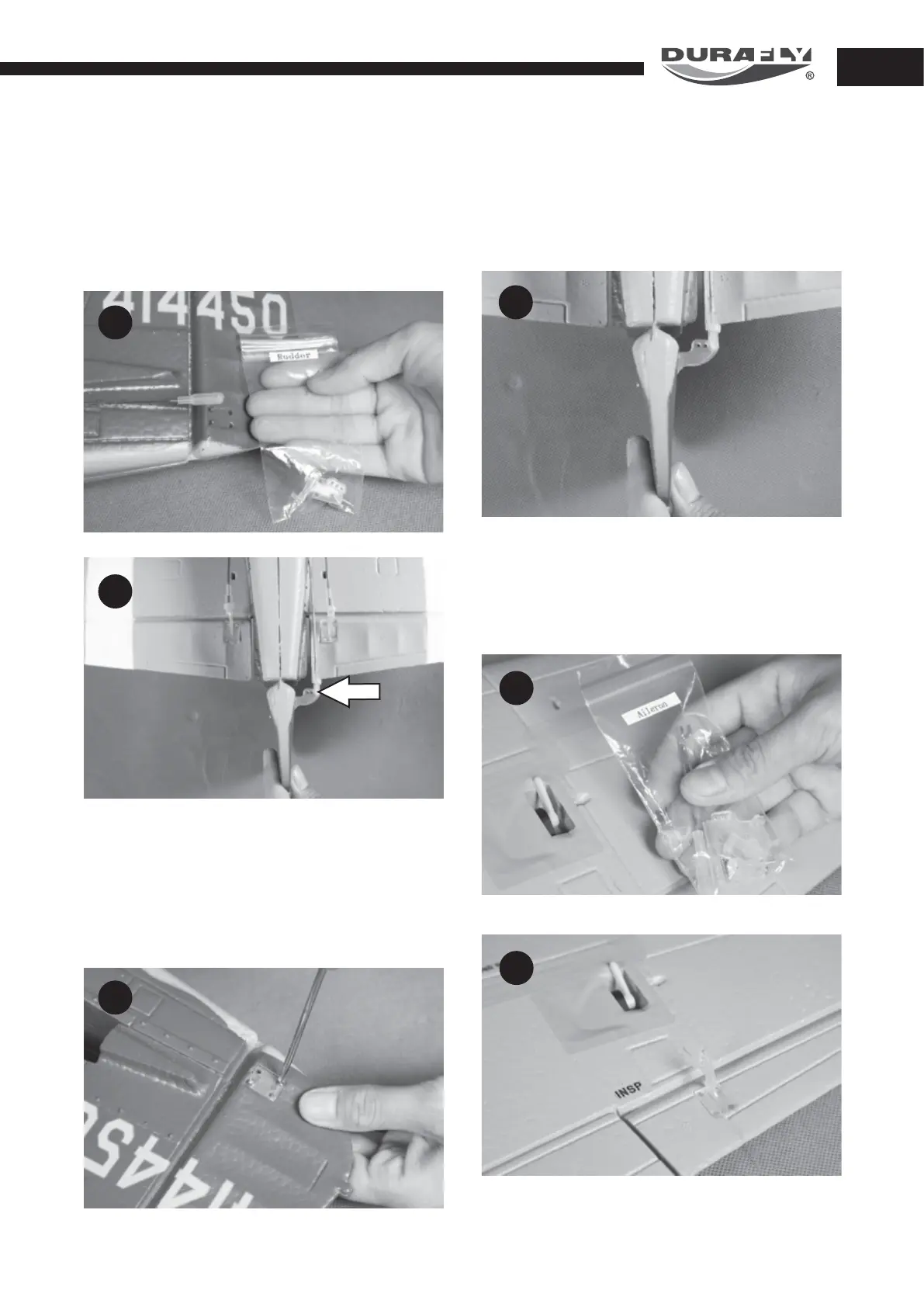

INSTALL THE CONTROL HORN
1. Attached the control horn to the
starboard of the rudder with it
toward the hinge line.
3. Check to make sure the screws are
firmly grabbed into the horns.
4. Install the aileron control horn on
the servo side of the main wing with
the horn towards the hinge line as
the picture shows.
2. Secure the horn from the backplate
side using the provided screws.
NOTE: The longer screws always
locate on the leading edge side of
all the control surface.
1.1
2
3
4.1
4.2
1.2
