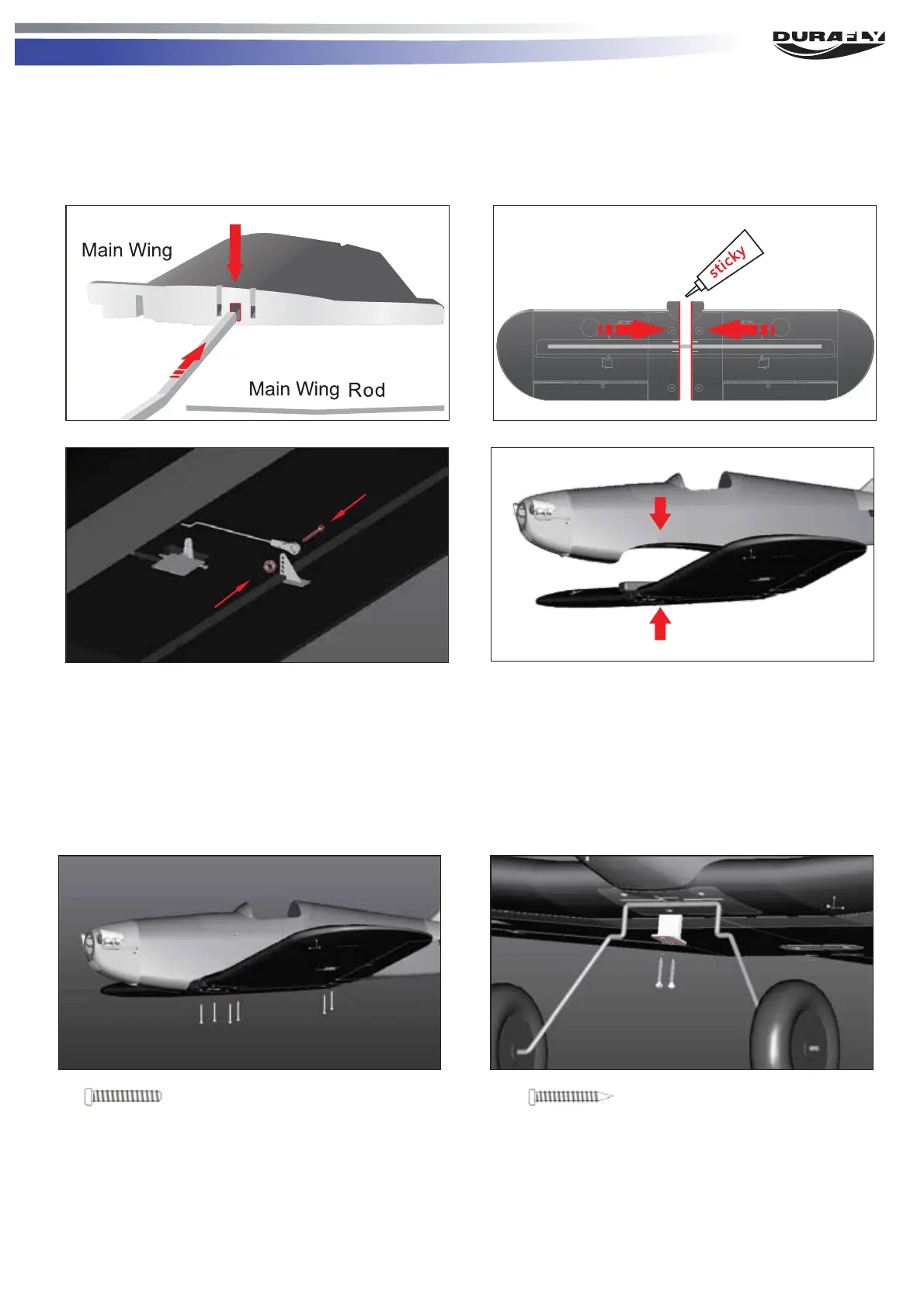

3.With the aileron control horns at 90 degrees to the wing surface (neutral) insert the aileron push
rod in the top hole of the control horn. (A). then Install the main wing. put the wing span to into the
hole in the main wing. And glue the main wing .
Slow
Pok e
Slo w Poke
PA 3x25mm 2pcs
① ②
③
PM 3x50mm 2pcs
①
②
PM 3x35mm 2pcs
③
④
④
PA 2x6mm 2pcs
A. B.
4.As show put the main wing to the fuselage with 2xPM3x25mm and 2xPM3x50mm 2xPM3x35mm
coarse thread screws . Screws are inserted on the under side of the wing/fuselage seam D . Attach
the landing gear to fuselage with two PA2*6mm machine screws. As picture show .
4
A
