A.
7.
M2.5x8m
m
8.

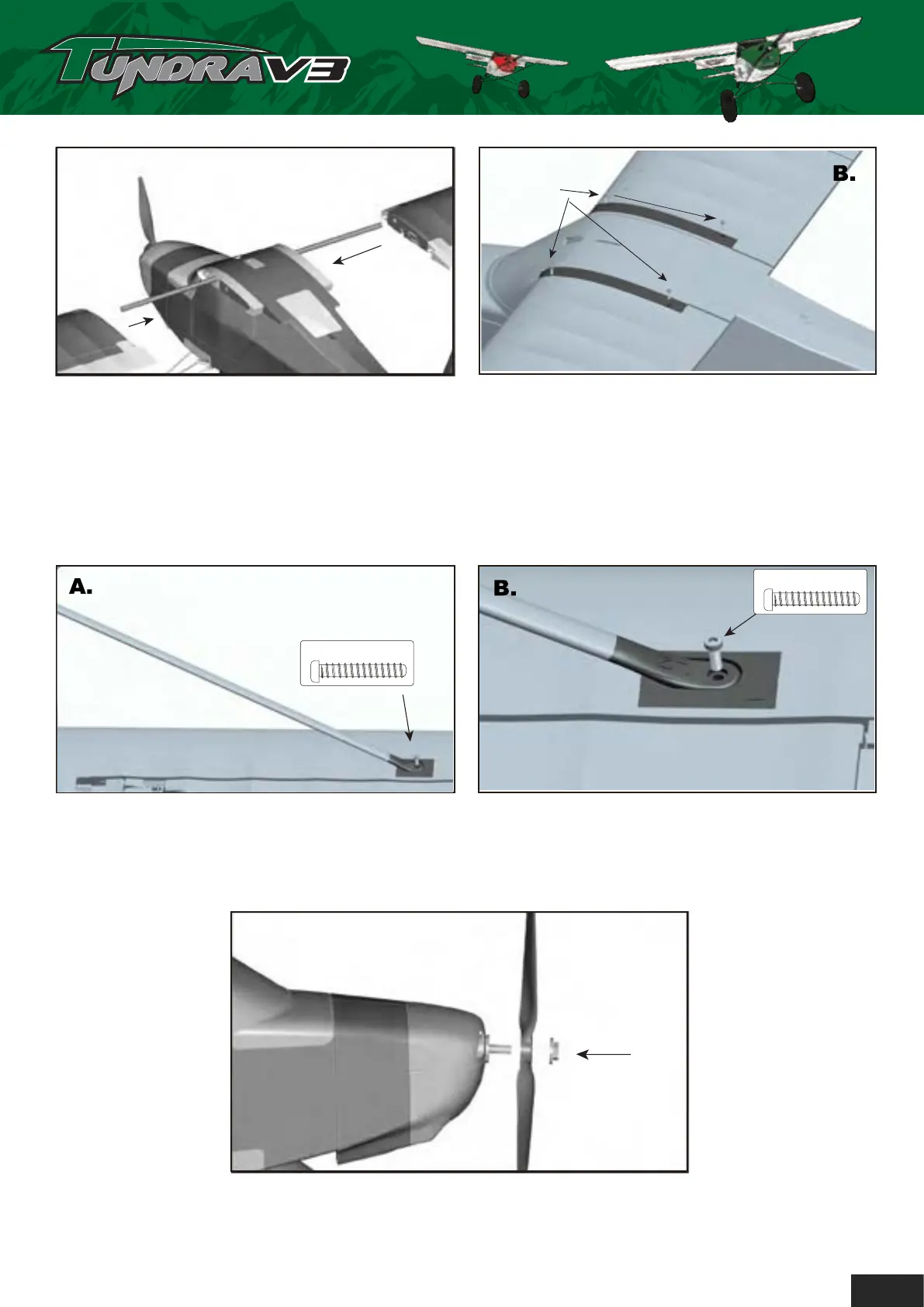

Attach each wing strut to their respective sides (A), both struts are marked ‘L’ and ‘R’ to note
left and right hand sides if looking forward from the cockpit. Secure firmly in place using the
M2.5x8mm hex bolts supplied (B)..
9.
The final stage of assembly is to mount the Durafly 11.5”x5” nylon reinforced propeller using the
prop nut as shown (A). However at this stage it is HIGHLY recommended that all set-up and final
checks of the model should be done before finally installing the prop firmly in place.
M2.5x8mm
M2.5x8mm
Notes: For convenience clear tape alone can be used to secure the wing to the
fuselage by running the tape along the entire span of the wing join. However this
is not recommended if you intend to fly the Tundra aggressively.
Note: The propeller should be balanced out of the box, however it is recommended
a final balance check be carried out before attaching to the model. A well balanced
prop will greatly increase all round performance and efficiency of the model in flight..
6
A.
